Unsupervised change detection using SAR images based on the broad learning system
SHAO Pan1,2(), GUAN Zongsheng1,2, JIA Fuwen1,2()
1. Hubei Key Laboratory of Intelligent Vision Monitoring for Hydroelectric Engineering, China Three Gorges University, Yichang 443002, China 2. College of Computer and Information Technology, China Three Gorges University, Yichang 443002, China

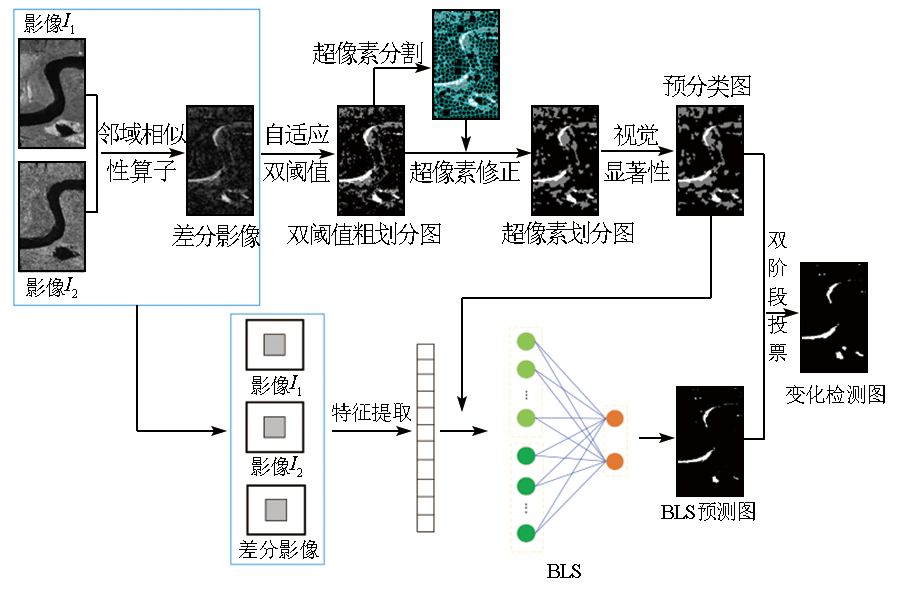

Change detection using synthetic aperture radar (SAR) images based on deep learning has been a significant research topic in the field of remote sensing. However, it is limited by unreliable training samples and highly time-consuming training. Hence, this study proposed a novel unsupervised change detection method using SAR images based on the broad learning system (BLS). First, a reliable pre-classification method is presented by incorporating neighborhood information into similarity operators, adaptive dual-threshold segmentation, superpixel correction, and visual saliency analysis. This pre-classification method generates a pre-classification map and corresponding training samples. Second, the BLS network is trained using the training samples to generate the BLS-based prediction map for change detection. Third, the pre-classification map and the BLS-based prediction map are fused through two-stage voting to generate the final change detection map. The experimental results of five real SAR image datasets show that the proposed method can produce more reliable training samples and achieve higher accuracy in change detection. Moreover, its efficiency is significantly higher than the change detection model using SAR images based on deep learning.
Gong M G, Zhao J J, Liu J, et al. Change detection in synthetic aperture Radar images based on deep neural networks[J]. IEEE Transactions on Neural Networks and Learning Systems, 2016, 27(1):125-138.
doi: 10.1109/TNNLS.2015.2435783
pmid: 26068879
[2]
Li W C, Ma P F, Wang H P, et al. SAR-TSCC:A novel approach for long time series SAR image change detection and pattern analysis[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61:5203016.
[3]
Hamidi E, Peter B G, Muñoz D F, et al. Fast flood extent monitoring with SAR change detection using google earth engine[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61:4201419.
[4]
Li S C, Wang Y J, Cai H F, et al. MF-SRCDNet:Multi-feature fusion super-resolution building change detection framework for multi-sensor high-resolution remote sensing imagery[J]. International Journal of Applied Earth Observation and Geoinformation, 2023, 119:103303.
[5]
Li Y Y, Peng C, Chen Y Q, et al. A deep learning method for change detection in synthetic aperture Radar images[J]. IEEE Transactions on Geoscience and Remote Sensing, 2019, 57(8):5751-5763.
[6]
Gao F, Dong J Y, Li B, et al. Automatic change detection in synthetic aperture Radar images based on PCANet[J]. IEEE Geoscience and Remote Sensing Letters, 2016, 13(12):1792-1796.
[7]
Zhang X Z, Su H, Zhang C, et al. Robust unsupervised small area change detection from SAR imagery using deep learning[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2021, 173:79-94.
[8]
Qu X F, Gao F, Dong J Y, et al. Change detection in synthetic aperture Radar images using a dual-domain network[J]. IEEE Geoscience and Remote Sensing Letters, 2021, 19:4013405.
Wang J M, Shi W Z, Shao P. Change-detection method for SAR image using adaptive distance and fuzzy topology optimization-based fuzzy clustering[J]. Acta Geodaetica et Cartographica Sinica, 2018, 47(5):611-619.
doi: 10.11947/j.AGCS.2018.20160607
Gong M G, Su L Z, Li H, et al. A survey on change detection in synthetic aperture Radar imagery[J]. Journal of Computer Research and Development, 2016, 53(1):123-137.
[11]
Ban Y F, Yousif O A. Multitemporal spaceborne SAR data for urban change detection in China[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2012, 5(4):1087-1094.
[12]
Ma J J, Li D S, Tang X, et al. Unsupervised SAR image change detection based on feature fusion of information transfer[J]. IEEE Geoscience and Remote Sensing Letters, 2023, 20:4004905.
[13]
Li H C, Celik T, Longbotham N, et al. Gabor feature based unsupervised change detection of multitemporal SAR images based on two-level clustering[J]. IEEE Geoscience and Remote Sensing Letters, 2015, 12(12):2458-2462.
[14]
Shao P, Shi W Z, Liu Z W, et al. Unsupervised change detection using fuzzy topology-based majority voting[J]. Remote Sensing, 2021, 13(16):3171.
[15]
Gao F, Wang X, Gao Y H, et al. Sea ice change detection in SAR images based on convolutional-wavelet neural networks[J]. IEEE Geoscience and Remote Sensing Letters, 2019, 16(8):1240-1244.
[16]
Vudattu V S, Pati U C. Change detection in synthetic aperture Radar images based on a spatial pyramid pooling attention network (SPPANet)[J]. Remote Sensing Letters, 2023, 14(11):1139-1149.
[17]
Chen C L P, Liu Z L. Broad learning system:An effective and efficient incremental learning system without the need for deep architecture[J]. IEEE Transactions on Neural Networks and Learning Systems, 2018, 29(1):10-24.
[18]
邵攀. 非监督遥感变化检测模糊方法研究[D]. 武汉: 武汉大学, 2016.
Shao P. Study on fuzzy unsupervised change detection methods based on remotely sensed image[D]. Wuhan: Wuhan University, 2016.
[19]
Perez A, Gonzalez R C. An iterative thresholding algorithm for image segmentation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 1987, 9(6): 742-751.
pmid: 21869436
[20]
Ghosh A, Mishra N S, Ghosh S. Fuzzy clustering algorithms for unsupervised change detection in remote sensing images[J]. Information Sciences, 2011, 181(4):699-715.
[21]
Shao P, Shi W Z, He P F, et al. Novel approach to unsupervised change detection based on a robust semi-supervised FCM clustering algorithm[J]. Remote Sensing, 2016, 8(3):264.
[22]
Bovolo F, Bruzzone L, Marconcini M. A novel approach to unsupervised change detection based on a semisupervised SVM and a similarity measure[J]. IEEE Transactions on Geoscience and Remote Sensing, 2008, 46(7):2070-2082.
Yuan Q, Cheng Y F, Chen X Q. Saliency detection based on multiple priorities and comprehensive contrast[J]. Journal of Image and Graphics, 2018, 23(2):239-248.
[25]
Celik T. Unsupervised change detection in satellite images using principal component analysis and K-means clustering[J]. IEEE Geoscience and Remote Sensing Letters, 2009, 6(4):772-776.
[26]
Gao F, Dong J Y, Li B, et al. Change detection from synthetic aperture Radar images based on neighborhood- based ratio and extreme learning machine[J]. Journal of Applied Remote Sensing, 2016, 10(4):046019.
[27]
Gong M G, Zhou Z Q, Ma J J. Change detection in synthetic aperture Radar images based on image fusion and fuzzy clustering[J]. IEEE Transactions on Image Processing:A Publication of the IEEE Signal Processing Society, 2012, 21(4):2141-2151.
[28]
Zhao S J, Zhang X L, Xiao P F, et al. Exchanging dual-encoder-decoder:A new strategy for change detection with semantic gui-dance and spatial localization[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61:4508016.
