Remote Sensing for Natural Resources    2025, Vol. 37 Issue (5) : 141-151     DOI: 10.6046/zrzyyg.2024299
|
Trend analysis and prediction method of ground deformation using TS-InSAR-based combination-long short-term memory
WEN Yi1,2,3,4(), ZHANG Ling1,2,3, KONG Hanquan5, WAN Xiangxing1,2,3(), GE Daqing1,2,3, LIU Bin1,2,3
1. China Aero Geophysical Survey and Remote Sensing Center for Natural Resources,Beijing 100083,China
2. Key Laboratory of Airborne Geophysics and Remote Sensing Geology,Ministry of Natural Resources,Beijing 100083,China
3. Technology Innovation Center for Geohazard Identification and Monitoring with Earth Observation System,Ministry of Natural Resources,Beijing 100083,China
4. School of Geosciences and Surveying Engineering,China University of Mining and Technology (Beijing) 100083,China
5. Heilongjiang Institute of Geological Mapping and Geographic Information,Harbin 150030,China
Download: PDF(9007 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

Time-series interferometric synthetic aperture radar (TS-InSAR) technology has been widely used in ground deformation monitoring and prediction. However,current research remains insufficient in the correlation and temporal lag between groundwater and ground deformation. Moreover,InSAR-based prediction models for ground deformation mostly rely on a single InSAR data,which limits the prediction accuracy and generalization ability of the models. To address these challenges,this study proposed a combination-long short-term memory (C-LSTM) model that integrates groundwater level,rainfall,and InSAR deformation data. This model was employed to evaluate the prediction and accuracy of single-factor and multi-factor models,respectively. The results revealed a temporal lag between ground deformation and changes in groundwater level. The optimal feature combination,obtained through model training using groundwater and rainfall data,exhibited significant improvements in prediction accuracy compared to single-factor predictions,with the coefficient of determination (R2) increasing by 2.45%,1.52%,4.16%,8.08%,5.08%,and 1.45% respectively. The model enhances the prediction accuracy of ground deformation by incorporating model feature combinations with high correlation with ground deformation.

Keywords time-series interferometric synthetic aperture radar (TS-InSAR)      ground deformation      correlation analysis      combination-long short-term memory (C-LSTM)
ZTFLH:  TP79
Issue Date: 28 October 2025
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Yi WEN
Ling ZHANG
Hanquan KONG
Xiangxing WAN
Daqing GE
Bin LIU
Cite this article:
Yi WEN,Ling ZHANG,Hanquan KONG, et al. Trend analysis and prediction method of ground deformation using TS-InSAR-based combination-long short-term memory[J]. Remote Sensing for Natural Resources, 2025, 37(5): 141-151.
URL:
https://www.gtzyyg.com/EN/10.6046/zrzyyg.2024299     OR     https://www.gtzyyg.com/EN/Y2025/V37/I5/141
Fig.1  Map of the study area
卫星影像 Sentinel-1A-IW-SAR-SLC
时间范围 2018-01-03—2022-12-20
主影像 2019-01-22
时间基线/d 12~108
垂直基线/m -150~150
干涉对 572
DEM Copernicus-30
Tab.1  Information on remote sensing data

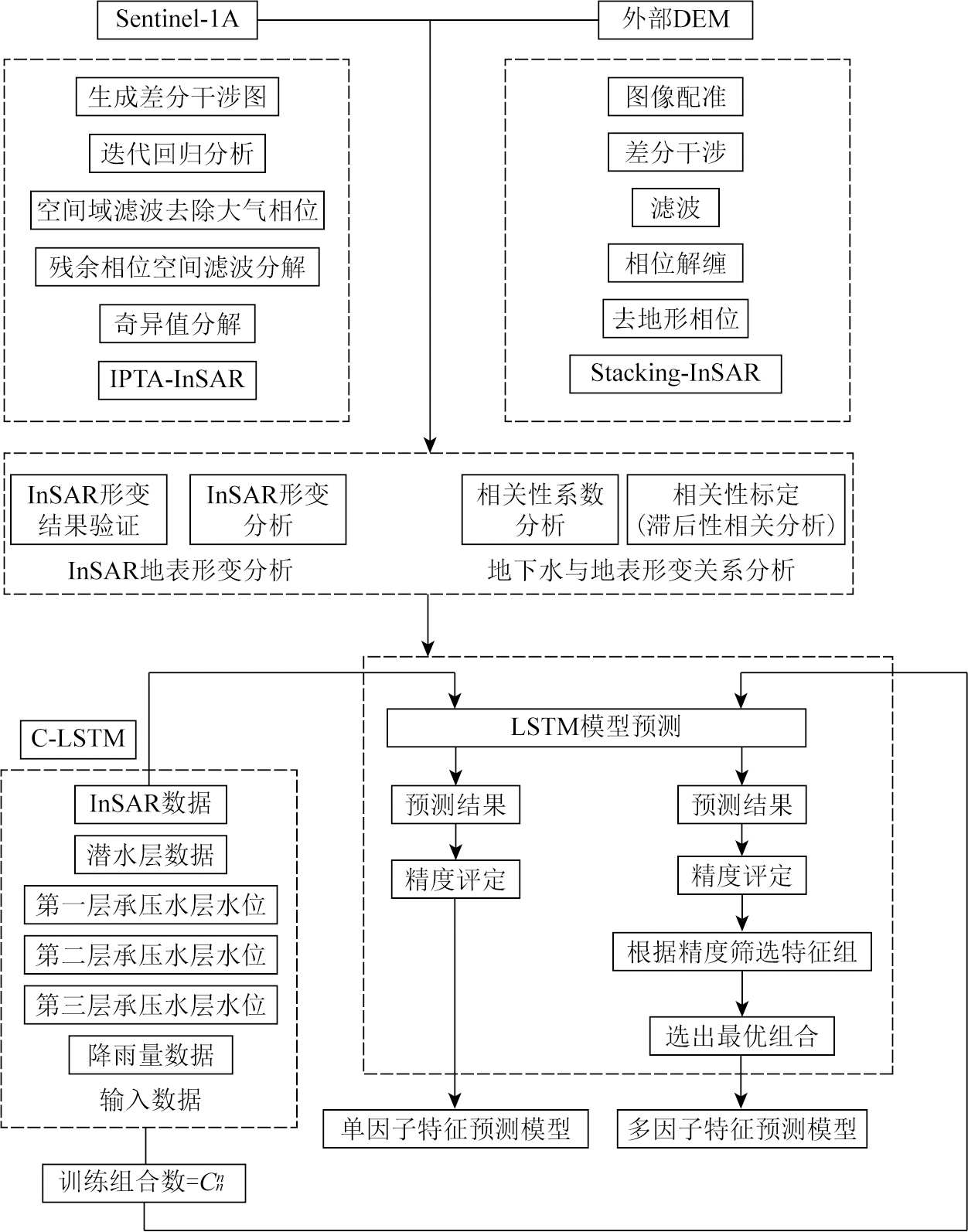

Fig.2  Technology roadmaps

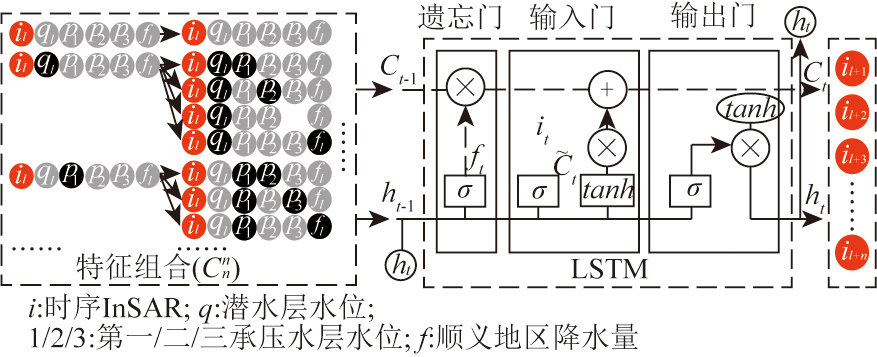

Fig.3  Structure of the C-LSTM model

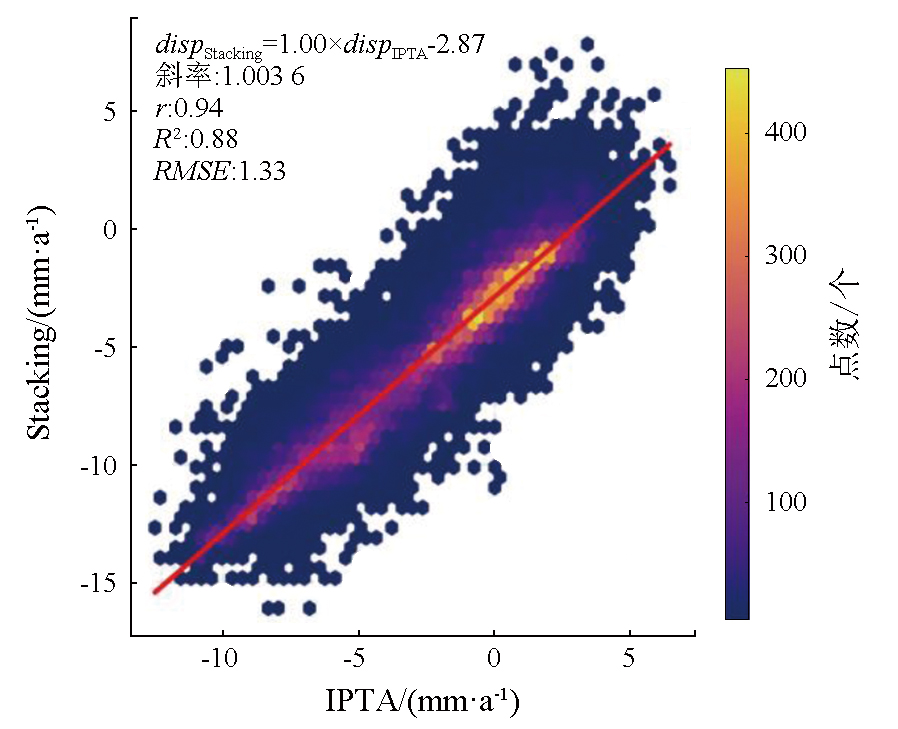

Fig.4  Validation results of IPTA-InSAR and Stacking-InSAR

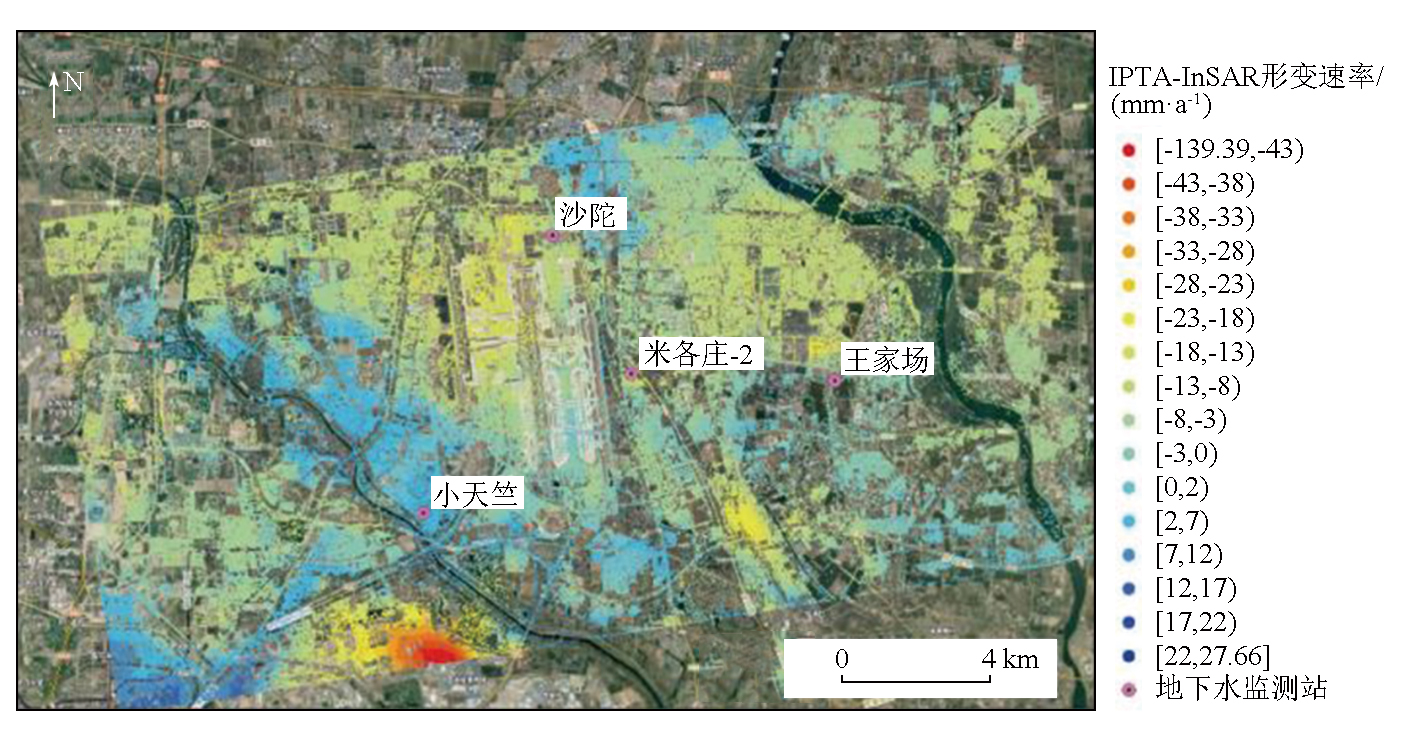

Fig.5  IPTA-InSAR time-series deformation results for the capital international airport and its surroundings

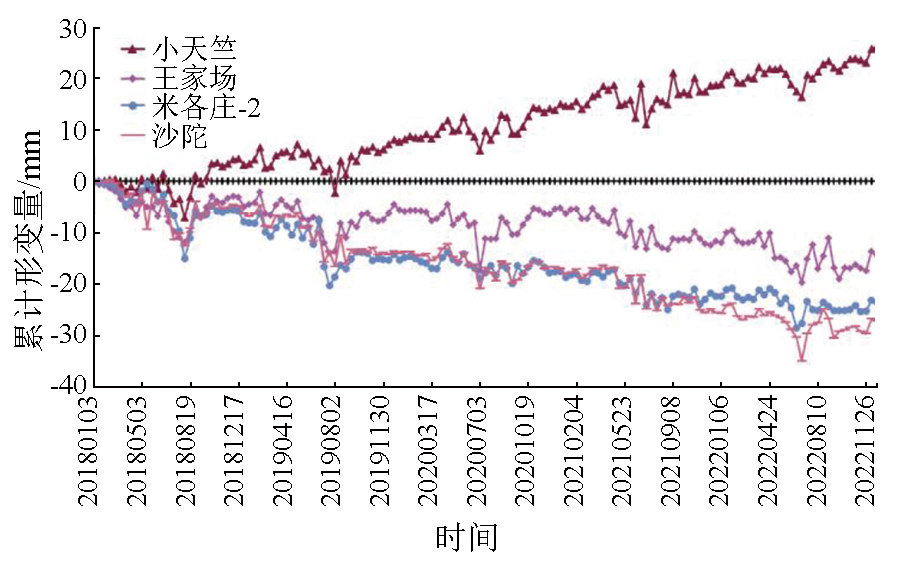

Fig.6  Long time-series cumulative deformation
形变结果 王家场 米各庄-2 沙陀
累计形变量/mm -14.38 -23.46 -26.32
形变速率/(mm·a-1 -1.59 -3.66 -3.69
Tab.2  Monitoring station InSAR deformation results

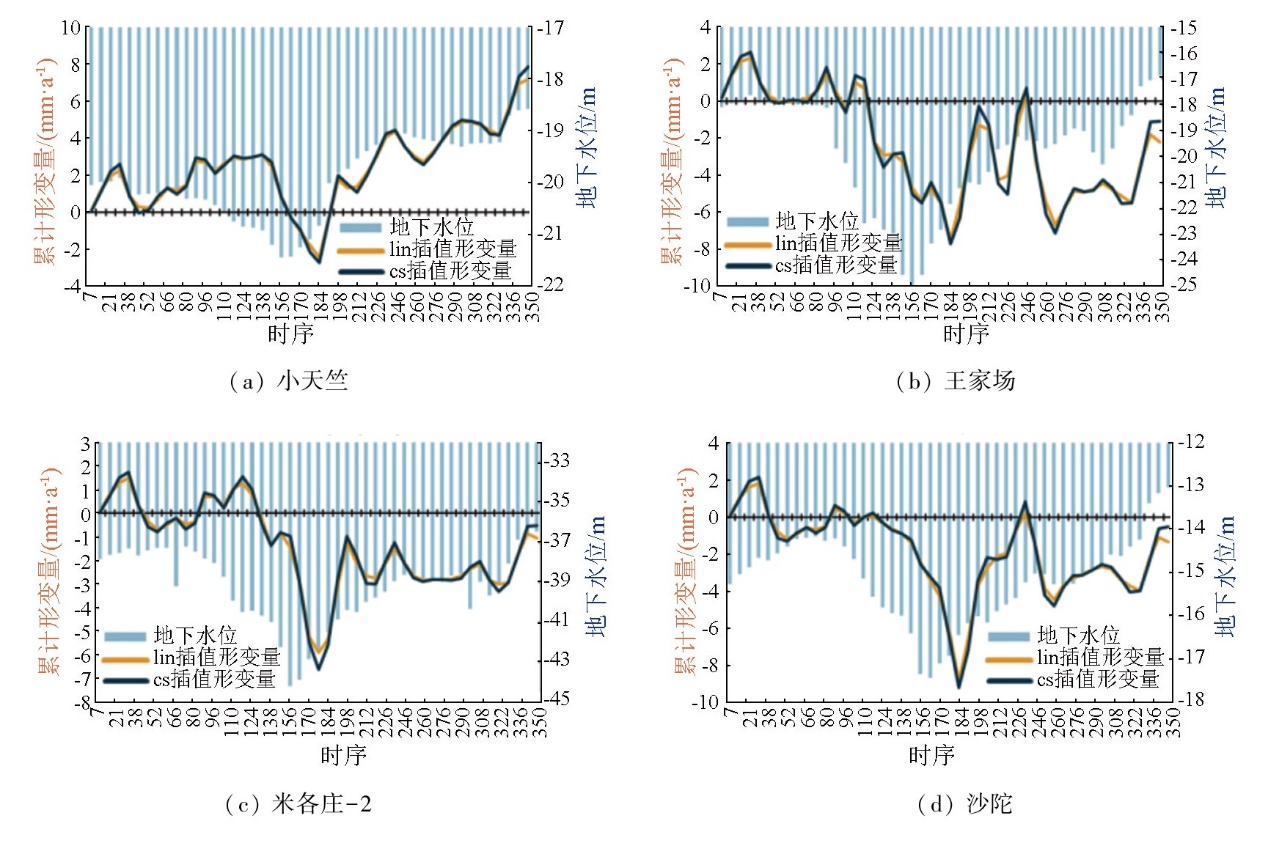

Fig.7  Relationship between groundwater level and cumulative deformation
地点 相关系数r 斜率 R2 RMSE
小天竺 0.76 0.71 0.54 0.18
王家场 0.46 0.55 0.17 0.32
米各庄-2 0.55 0.67 0.21 0.28
沙陀 0.43 0.48 0.18 0.25
Tab.3  Accuracy assessment of groundwater levels and cumulative deformation

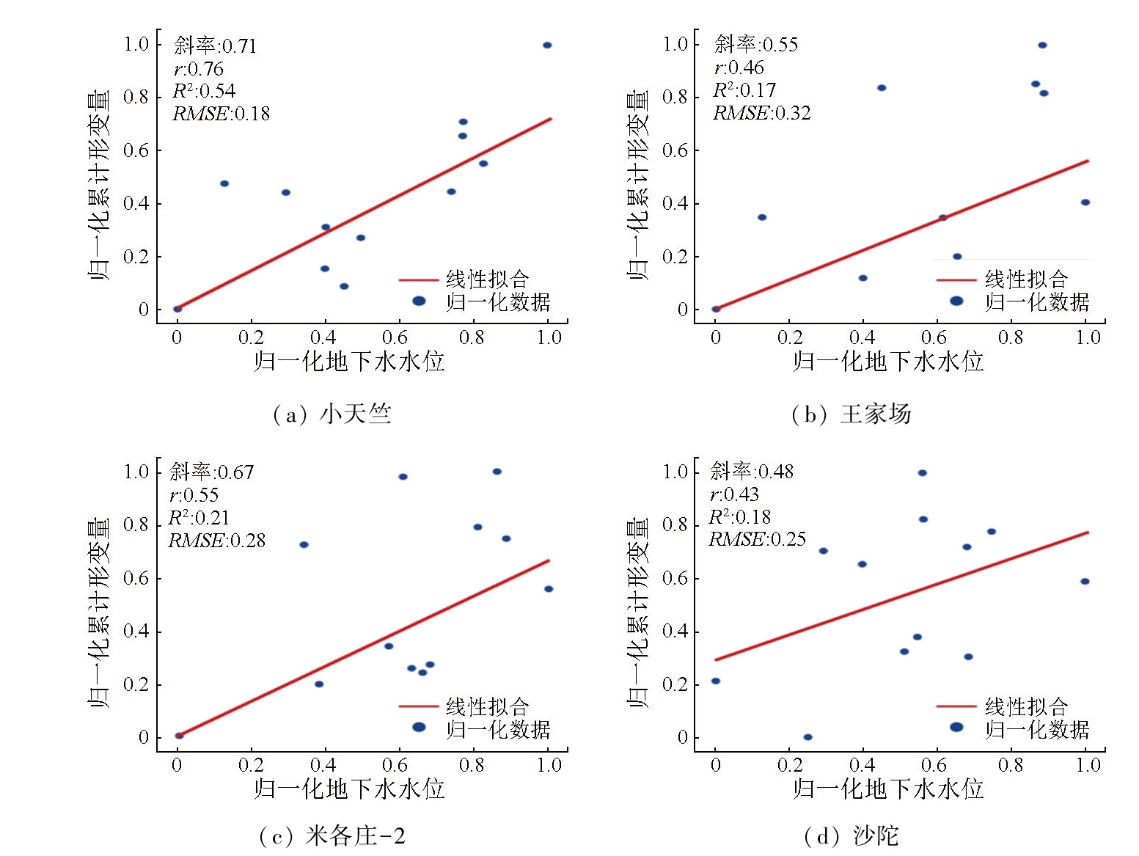

Fig.8  Scatterplot for correlation analysis

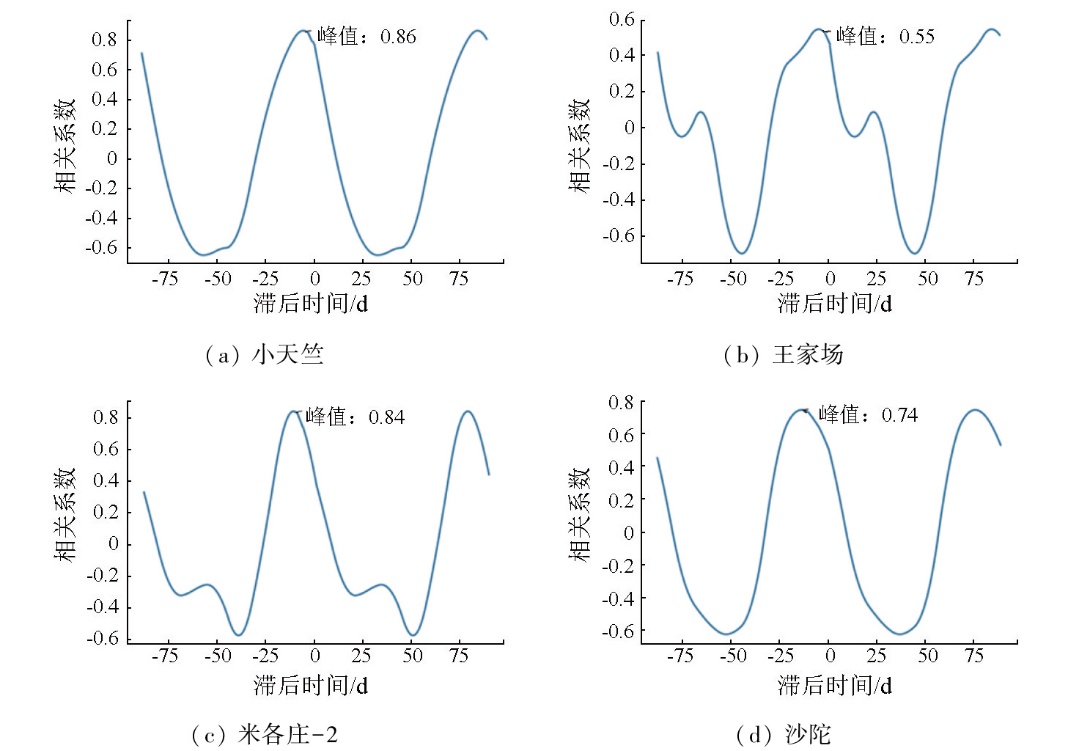

Fig.9  Lag analysis line graph
类型 参数值
步长 15
训练集和测试集比例 7∶3
训练轮数 100
训练批次个数 100
特征信息维度 1~6
隐藏层 3×LSTM+2×dropout
Tab.4  LSTM model parameter setting

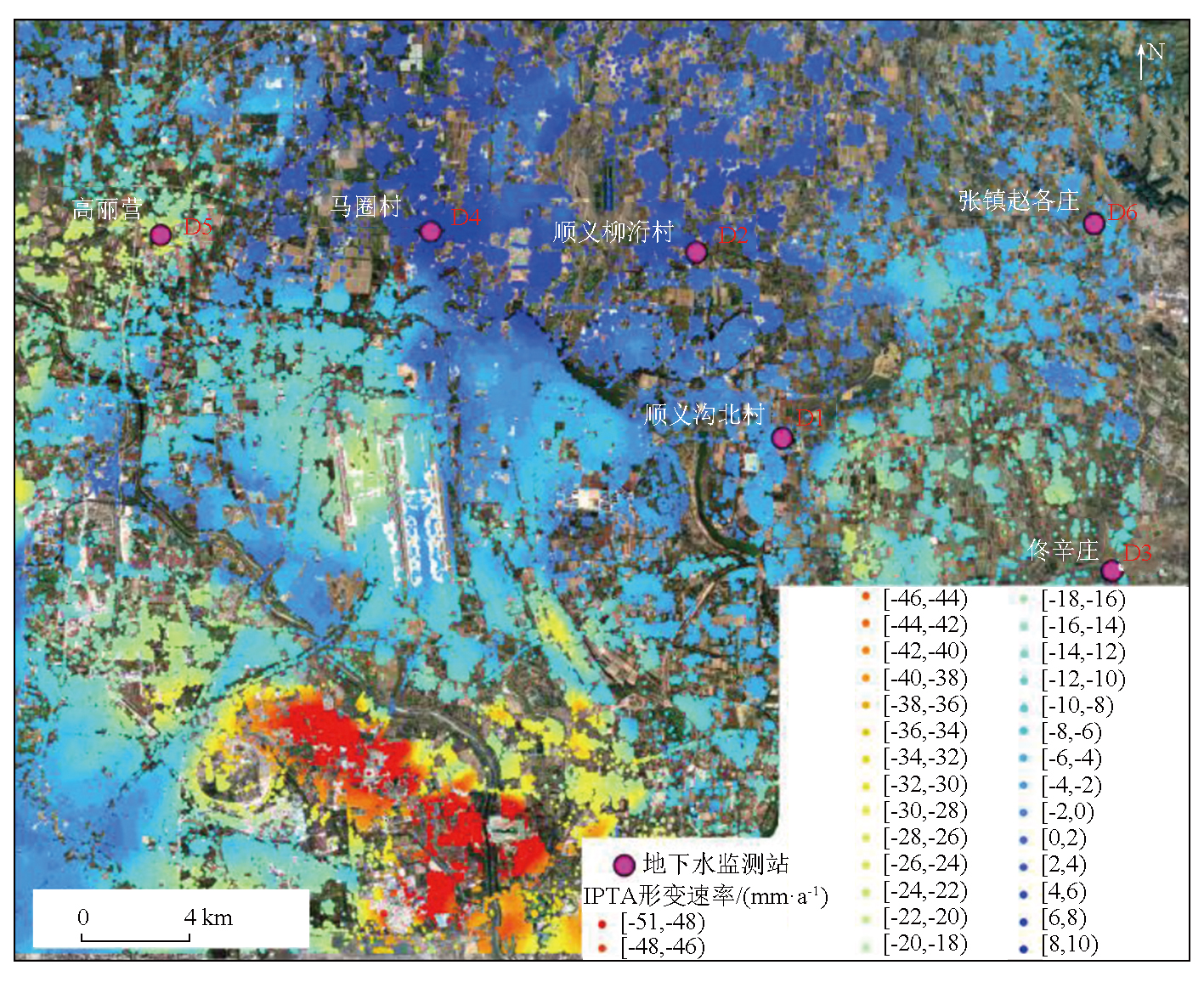

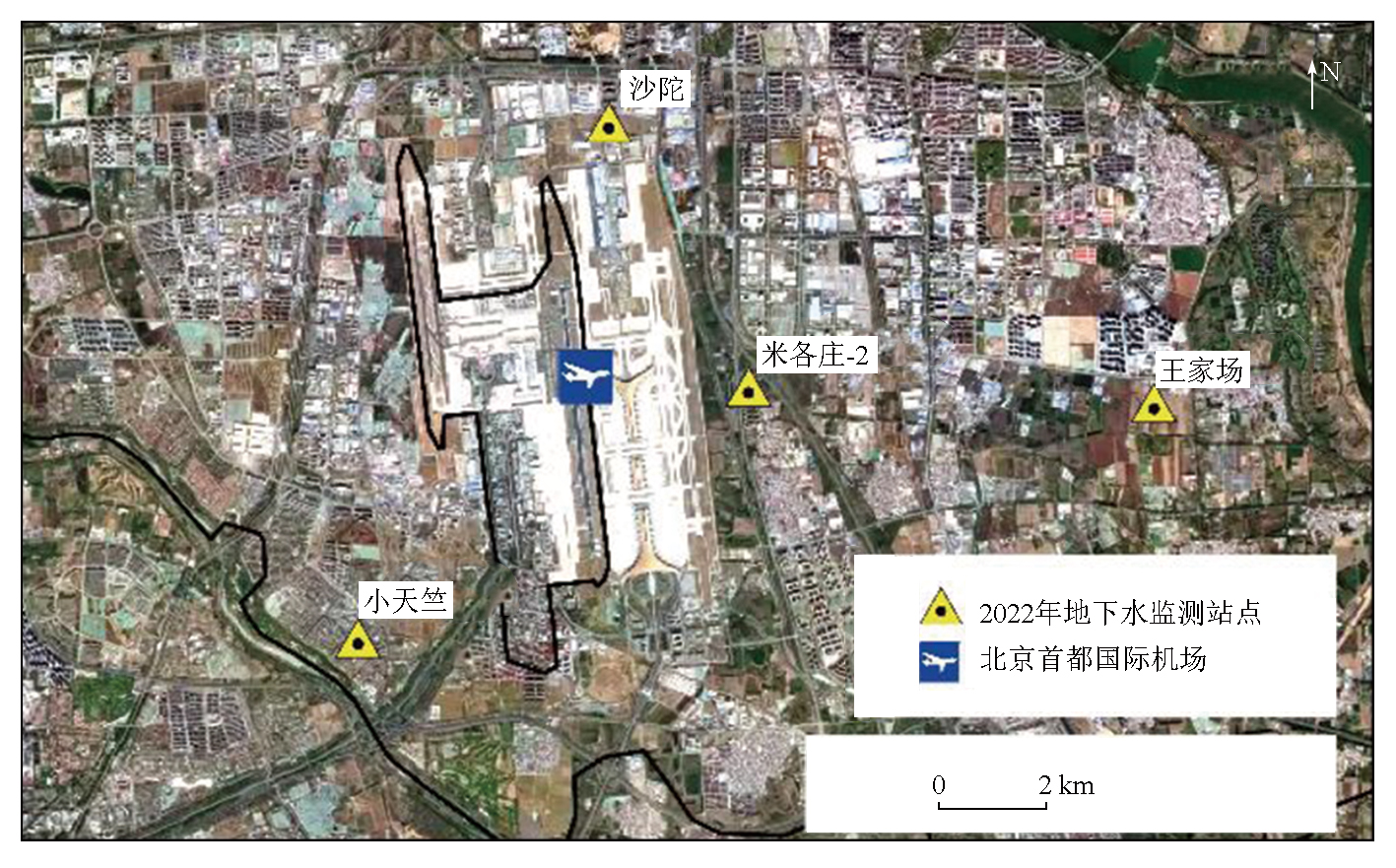

Fig.10  IPTA-InSAR results and groundwater monitoring station locations
因子 RMSE MAE MAPE R2 r
D1_i 0.026 8 0.022 1 3.233 6 0.960 8 0.992 0
D2_i 0.016 6 0.013 6 1.684 4 0.966 7 0.993 4
D3_i 0.022 6 0.020 4 2.607 7 0.942 5 0.992 8
D4_i 0.027 3 0.024 4 3.027 6 0.887 4 0.979 9
D5_i 0.020 9 0.019 4 2.179 5 0.940 4 0.995 8
D6_i 0.015 1 0.013 2 2.081 2 0.973 9 0.993 0
Tab.5  Single-factor prediction results
因子 RMSE MAE MAPE R2 r
D1_i_q_1_2 0.017 0 0.012 8 1.839 8 0.984 3 0.994 3
D2_i_q 0.012 4 0.009 7 1.221 0 0.981 4 0.995 7
D3_i_q 0.012 8 0.009 7 1.275 9 0.981 7 0.993 9
D4_i_f 0.016 5 0.012 6 1.602 2 0.959 1 0.986 6
D5_i_q_f 0.009 3 0.007 0 0.830 3 0.988 2 0.995 2
D6_i_f 0.010 2 0.007 6 1.180 0 0.988 0 0.994 4
Tab.6  Multi-factor prediction results

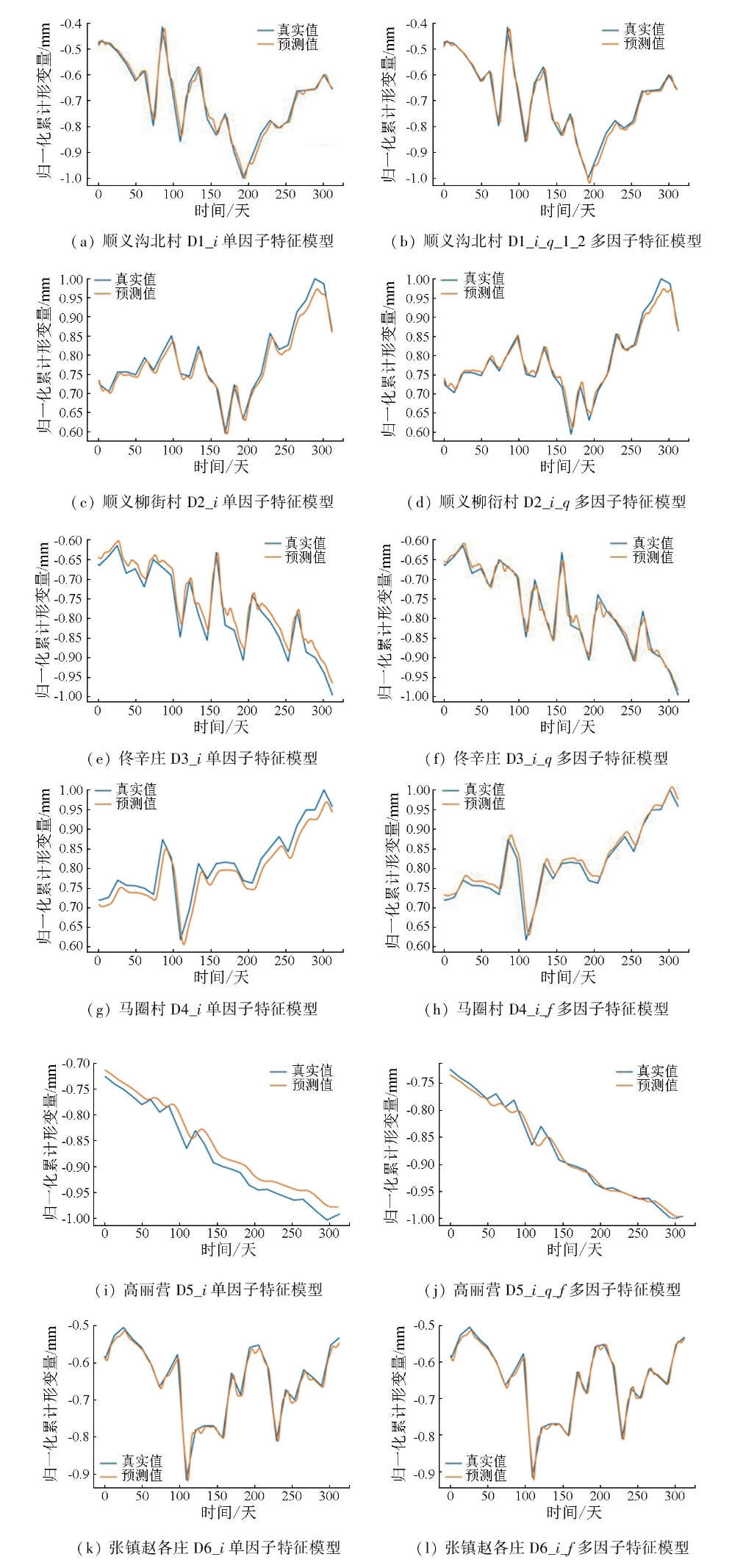

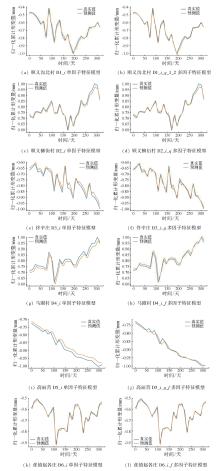

Fig.11  Single-factor feature and Multi-factor feature deformation prediction results
