基于SBAS-InSAR 技术的中缅边境山区地质灾害隐患探测
易邦进1(), 黄成2, 傅涛1, 孙技星1, 朱宝权1, 钟成3()
1.云南省地质科学研究所,昆明 650051
2.云南省地质环境监测院,昆明 650216
3.中国地质大学(武汉)湖北巴东地质灾害国家野外科学观测研究站,武汉 430079
SBAS-InSAR-based detection of geological hazards in alpine gorge areas near the China-Myanmar border
YI Bangjin1(), HUANG Cheng2, FU Tao1, SUN Jixing1, ZHU Baoquan1, ZHONG Cheng3()
1. Yunnan Institute of Geological Science, Kuming 650051, China
2. Yunnan Institute of Geological Environment Monitoring Institute, Kuming 650216, China
3. Badong National Observation and Research Station of Geohazards, China University of Geosciences, Wuhan, Wuhan 430079, China
全文: PDF(3311 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

云南省福贡县位于中缅边境,是典型的高山峡谷地区,地质环境脆弱,滑坡、崩塌、泥石流等地质灾害频发,对人民生命财产安全、经济建设和国防安全构成严重威胁。该地区山高林密,传统的人工排查工作较难实施,危险性大。为了实现地质灾害隐患探测,利用Sentinel-1A 卫星数据,采用短基线集差分干涉测量(SBAS-InSAR)技术对高山峡谷区域进行了地表变形监测和地质灾害隐患探测,并结合地面调查与光学影像遥感解译对识别结果进行了验证。结果表明,该地区的变形区域大都处于地质条件脆弱地区,在强降雨条件下极易导致滑坡失稳,建议后续开展持续观测。该研究成果对高山峡谷区滑坡调查与监测研究具有参考意义。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
易邦进
黄成
傅涛
孙技星
朱宝权
钟成
关键词 地质灾害时间序列InSAR隐患探测高山峡谷
Abstract

Fugong County of Yunnan Province, located near the Yunnan-Myanmar border, is a typical alpine gorge area with a fragile geological environment. Geological hazards, including landslide, collapse, and debris flow, occur frequently in this area, thus posing a severe threat to the safety of people's lives and properties, economic development, and even national defense security. However, high mountains and thick forests in this area complicate manual investigations and increase the risk. Hence, this study conducted surface deformation monitoring and geological hazard detection in this alpine gorge area by employing the small baseline subset - interferometric synthetic aperture radar (SBAS-InSAR) technology based on the Sentinel-1A satellite data. The identification results were verified by combining ground surveys and the interpretation of optical remote sensing images. The findings indicate that most of the deformation zones in this area exhibit fragile geological conditions and are prone to landslide instability in the case of heavy rainfall, thus requiring continuous observation. This study offers a valuable reference for investigating and monitoring landslides in alpine gorge areas.

Key wordsgeological hazard    time series    InSAR    hazard detection    alpine gorge
收稿日期: 2022-07-05      出版日期: 2023-12-21
ZTFLH:  P237
基金资助:云南省基础研究计划(202201AT070357);云南省地质矿产勘查开发局科技创新项目(202235);2020年度云南省重点区域地质灾害精细化调查与风险评价项目(YNLH202011010793/A);国家自然科学基金面上项目(41772352)
通讯作者: 钟成(1981-),男,副研究员,主要从事遥感地质方向的研究。Email: zhonglxm@cug.edu.cn
作者简介: 易邦进(1983-),男,高级工程师,主要从事遥感地质解译与监测工作。Email: bangjinyi@sina.com
引用本文:
易邦进, 黄成, 傅涛, 孙技星, 朱宝权, 钟成. 基于SBAS-InSAR 技术的中缅边境山区地质灾害隐患探测[J]. 自然资源遥感, 2023, 35(4): 186-191.
YI Bangjin, HUANG Cheng, FU Tao, SUN Jixing, ZHU Baoquan, ZHONG Cheng. SBAS-InSAR-based detection of geological hazards in alpine gorge areas near the China-Myanmar border. Remote Sensing for Natural Resources, 2023, 35(4): 186-191.
链接本文:
https://www.gtzyyg.com/CN/10.6046/zrzyyg.2022261      或      https://www.gtzyyg.com/CN/Y2023/V35/I4/186

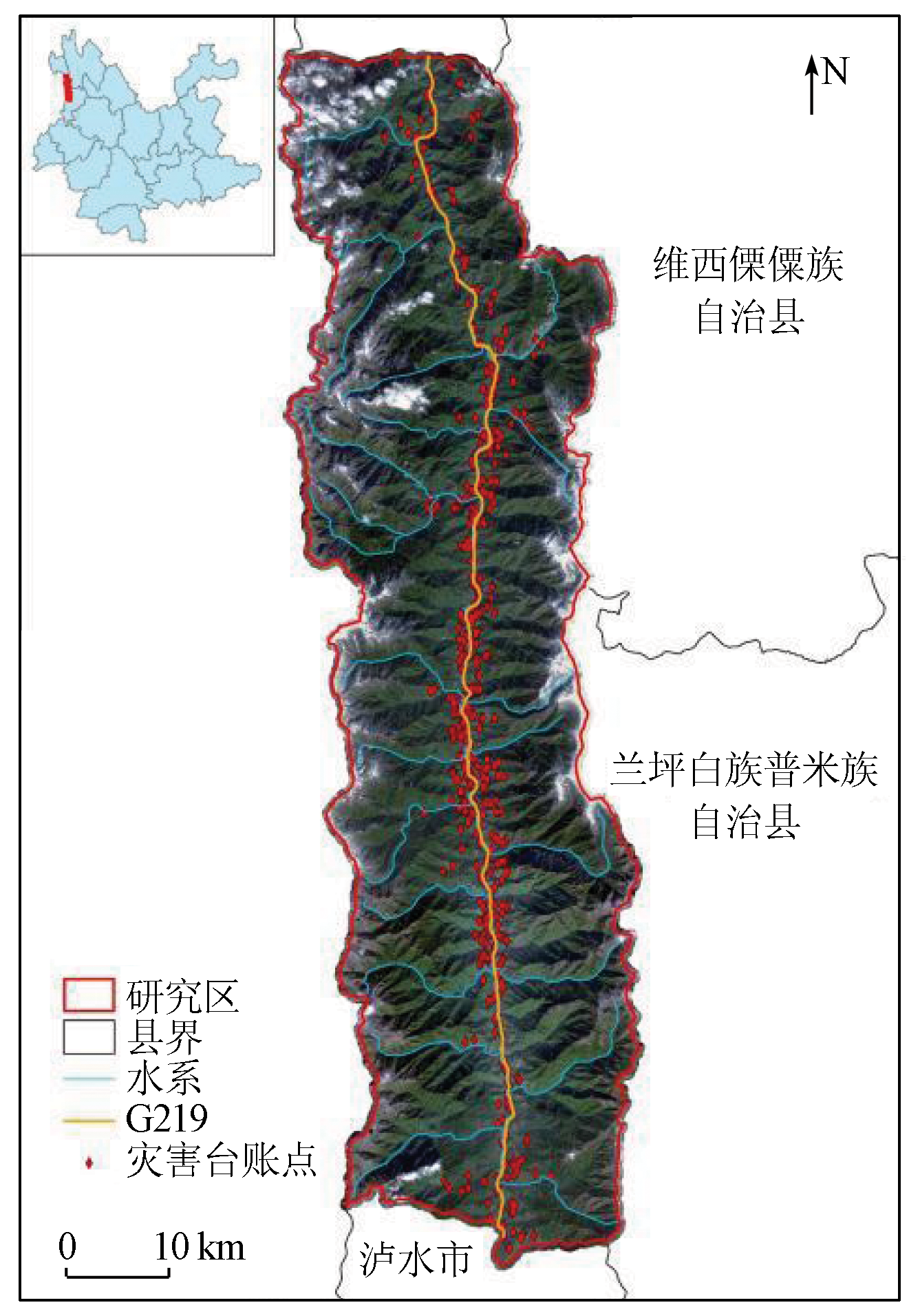

Fig.1  研究区概况

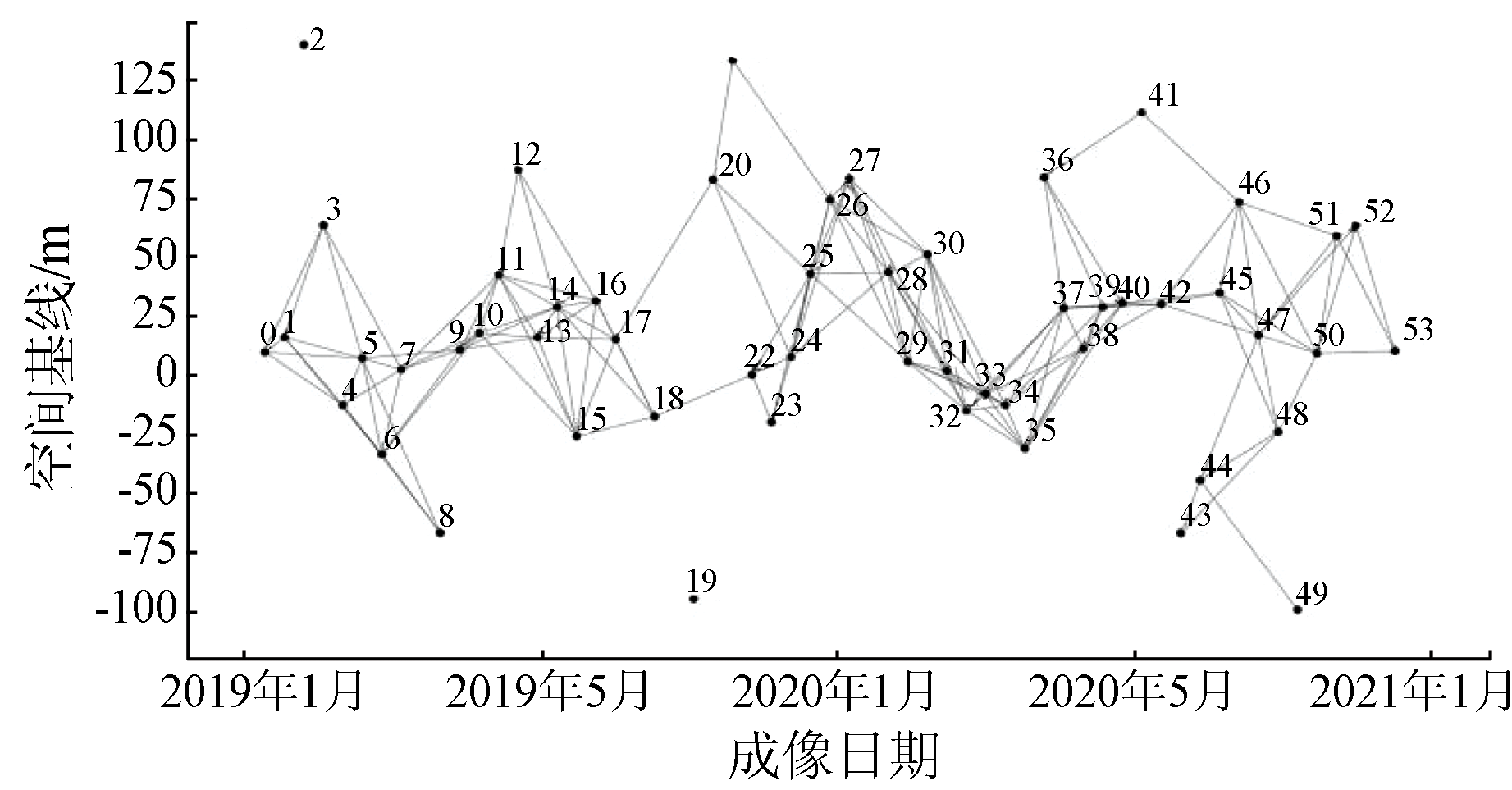

Fig.2  SAR图像时空基线
Fig.3  研究区形变图

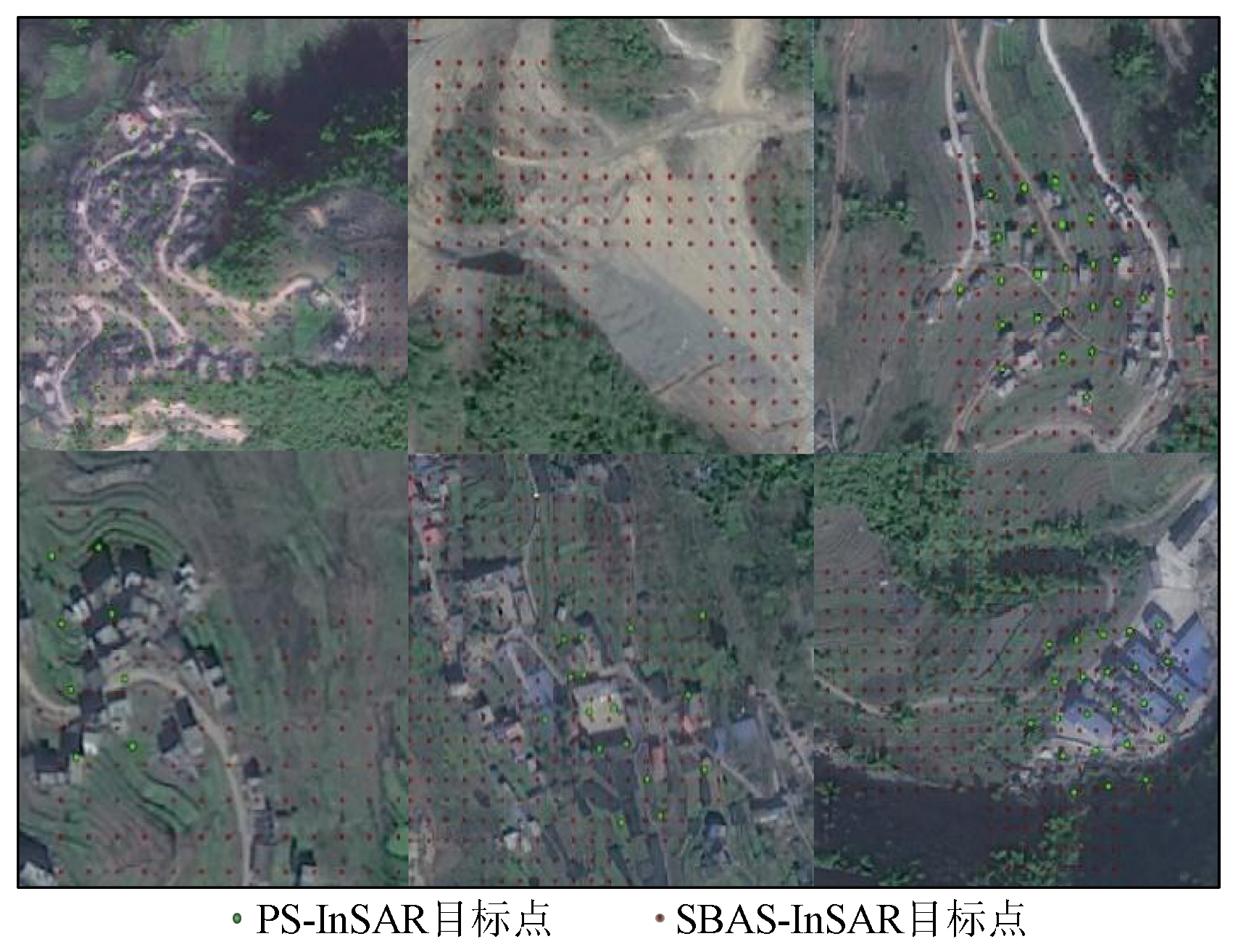

Fig.4  目标点分布
Fig.5  典型点位时间序列形变分析
类型 变形点数 被台账记录数 匹配率/%
崩塌 12 8 66.67
滑坡 132 95 71.96
泥石流 68 42 61.76
合计 212 145 68.40
Tab.1  地质灾害隐患探测

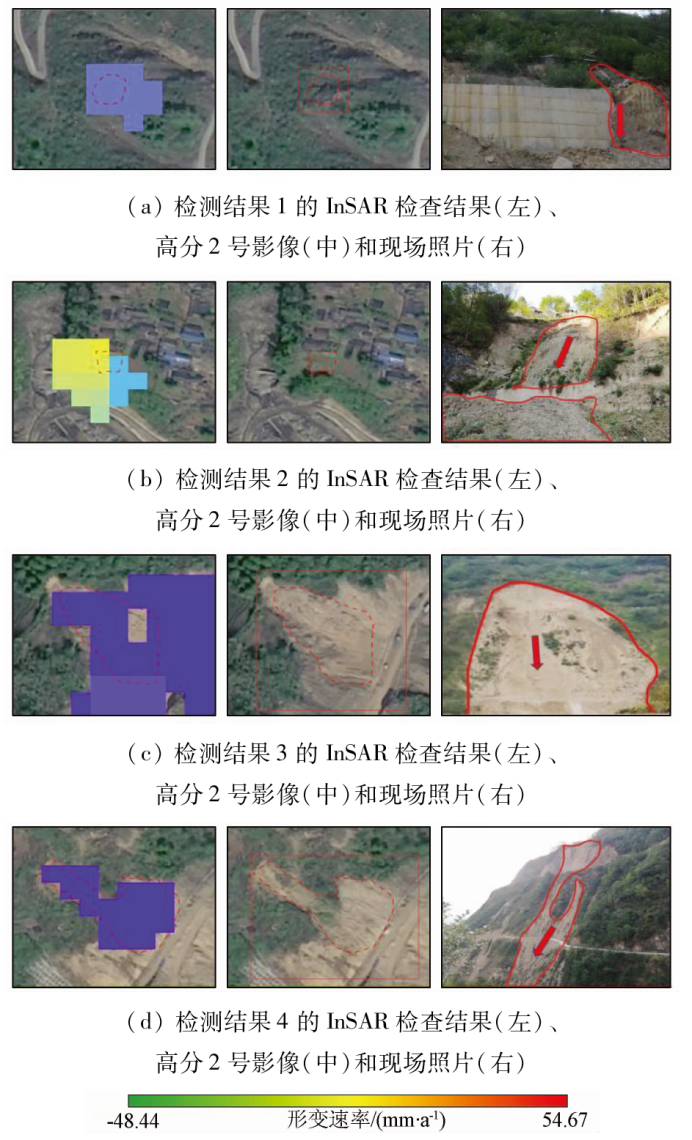

Fig.6  部分检测结果的核验
[1] 张培震, 邓起东, 张竹琪, 等. 中国大陆的活动断裂、地震灾害及其动力过程[J]. 中国科学:地球科学, 2013, 43(10):1607-1620.
Zhang P Z, Deng Q D, Zhang Z Q, et al. Active faults,earthquake disasters and their dynamic processes in Chinese mainland[J]. Scientia Sinica Terrae, 2013, 43(10):1607-1620.
doi: 10.1360/zd-2013-43-10-1607
[2] 刘传正, 陈春利. 中国地质灾害防治成效与问题对策[J]. 工程地质学报, 2020, 28(2),375-383.
Liu C Z, Chen C L. Achievements and countermeasures in risk reduction of geological disasters in China[J]. Journal of Engineering Geology, 2020, 28(2),375-383.
[3] 许强, 董秀军, 李为乐. 基于天-空-地一体化的重大地质灾害隐患早期识别与监测预警[J]. 武汉大学学报(信息科学版), 2019, 44(7):957-966.
Xu Q, Dong X J, Li W L. Integrated space-air-ground early detection,monitoring and warning system for potential catastrophic geohazards[J]. Geomatics and Information Science of Wuhan University, 2019, 44(7),957-966.
[4] 廖明生, 王腾. 时间序列InSAR技术与应用[M]. 北京: 科学出版社, 2014.
Liao M S, Wang T. Time series InSAR technology and its application[M]. Beijing: Science Press, 2014.
[5] 廖明生, 张路, 史绪国, 等. 滑坡变形雷达遥感监测方法与实践[M]. 北京: 科学出版社, 2017.
Liao M S, Zhang L, Shi X G, et al. Remote sensing monitoring method and practice of landslide deformation radar[M]. Beijing: Science Press, 2017.
[6] Crosetto M, Monserrat O, Cuevas-González M, et al. Persistent scatterer interferometry:A review[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2016, 115:78-89.
doi: 10.1016/j.isprsjprs.2015.10.011
[7] 付波霖, 解淑毓, 李涛, 等. 基于SBAS/PS-InSAR技术的滑坡遥感监测对比研究[J]. 大地测量与地球动力学, 2021, 41(4):392-398.
Fu B L, Xie S Y, Li T, et al. Comparative study of landslide remote sensing monitoring based on SBAS/PS-InSAR technology[J]. Journal of Geodesy and Geodynamics, 2021, 41(4):392-398.
[8] 杨成生, 董继红, 朱赛楠, 等. 金沙江结合带巴塘段滑坡群InSAR探测识别与形变特征[J]. 地球科学与环境学报, 2021, 43(2):398-408.
Yang C S, Dong J H, Zhu S N, et al. Detection,identification and deformation characteristics of landslide groups by InSAR in Batang section of Jinsha River convergence zone,China[J]. Journal of Earth Sciences and Environment, 2021, 43(2):398-408.
[9] 代聪, 李为乐, 陆会燕, 等. 甘肃省舟曲县城周边活动滑坡InSAR探测[J]. 武汉大学学报(信息科学版), 2021, 46(7):994-1002.
Dai C, Li W L, Lu H Y, et al. Active landslides detection in Zhouqu County,Gansu Province using InSAR technology[J]. Geomatics and Information Science of Wuhan University, 2021, 46(7):994-1002.
[10] 陆会燕, 李为乐, 许强, 等. 光学遥感与InSAR结合的金沙江白格滑坡上下游滑坡隐患早期识别[J]. 武汉大学学报(信息科学版), 2019, 44(9):1342-1354.
Lu H Y, Li W L, Xu Q, et al. Early detection of landslides in the upstream and downstream areas of the baige landslide,the Jinsha River based on optical remote sensing and InSAR technologies[J]. Geomatics and Information Science of Wuhan University, 2019, 44(9):1342-1354.
[11] Shi X, Liao M, Li M, et al. Wide-area landslide deformation mapping with multi-path ALOS PALSAR data stacks:A case study of Three Gorges Area,China[J]. Remote Sensing, 2016, 8(2),136.
doi: 10.3390/rs8020136
[12] 张路, 廖明生, 董杰, 等. 基于时间序列InSAR分析的西部山区滑坡灾害隐患早期识别——以四川丹巴为例[J]. 武汉大学学报(信息科学版), 2018, 43(12):2039-2049.
Zhang L, Liao M S, Dong J, et al. Early detection of landslide hazards in mountainous areas of west China using time series SAR interferometry—A case study of Danba,Sichuan[J]. Geomatics and Information Science of Wuhan University, 2018, 43(12):2039-2049.
[13] 李加洪, 蒋卫国, 张松梅, 等. 基于遥感与GIS的西藏帕里河滑坡动态监测分析[J]. 自然灾害学报, 2006, 15(4):24-27.
Li J H, Jiang W G, Zhang S M, et al. RS and GIS based landslide monitoring of Pali River in Tibet[J]. Journal of Natural Disasters, 2006, 15(4):24-27.
[14] 王治华, 徐起德, 杨日红, 等. 中印边界附近帕里河上的滑坡灾害遥感调查[J]. 科技导报, 2007, 25(6),27-31.
Wang Z H, Xu Q D, Yang R H, et al. Remote sensing survey for a landslide disaster in the boundary river between China and India[J]. Science & Technology Review, 2007, 25(6),27-31.
[15] Berardino P, Fornaro G, Lanari R, et al. A new algorithm for surface deformation monitoring based on small baseline differential SAR interferograms[J]. IEEE Transactions on Geoscience and Remote Sensing, 2002, 40(11):2375-2383.doi:10.1109/TGRS.2002.803792.
