自然资源遥感  2025, Vol. 37 Issue (6): 182-190    DOI: 10.6046/zrzyyg.2024323
  技术应用 本期目录 | 过刊浏览 | 高级检索 |
基于PSR和时序预测模型的露天煤矿区生态环境质量遥感评价
刘晋宇1(), 胡晋山1(), 康建荣1, 朱益虎2, 王胜利2
1.江苏师范大学地理测绘与城乡规划学院,徐州 221116
2.江苏省地质测绘大队,南京 211102
Remote sensing-based assessment of ecological quality in open-pit coal mining areas based on the pressure-state-response and time series prediction models
LIU Jinyu1(), HU Jinshan1(), KANG Jianrong1, ZHU Yihu2, WANG Shengli2
1. School of Geography, Geomatics and Planning, Jiangsu Normal University, Xuzhou 221116, China
2. Jiangsu Geologic Surveying and Mapping Institute, Nanjing 211102, China
全文: PDF(6059 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

针对露天煤矿开采扰动周边生态环境的量化问题,该文以山西省平朔朔南矿区为研究区,基于压力-状态-响应模型(pressure-state-response,PSR)选取7类评价指标,通过组合赋权构建露天煤矿区遥感生态指数(remote sensing ecological index of open-pit coal mining area,OMRSEI),利用相关性分析和对比分析对OMRSEI进行有效性验证,并选用指数平滑法预测了研究区未来2个年份的生态环境演变趋势。结果表明: ①OMRSEI具有显著的空间相关性和有效性,是一种适用于露天煤矿区生态环境评价的遥感指标; ②研究区2013—2023年生态环境质量总体呈上升趋势,其中安太堡露天矿和安家岭露天矿排土场逐步修复,生态环境质量持续改善,东露天矿生态环境质量则呈现先下降后上升的趋势; ③预测结果表明2025—2027年研究区OMRSEI均值持续上升,生态环境质量持续提升。
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
刘晋宇
胡晋山
康建荣
朱益虎
王胜利
关键词 ： 生态质量评价,  露天煤矿,  PSR模型,  时序预测,  定量遥感
Abstract：

To quantify the mining disturbance of open-pit coal mines to surrounding ecosystems, this study investigated the Pingshuo mining area in Shanxi Province. Based on the pressure-state-response (PSR) model, seven types of assessment indicators were selected to construct the remote sensing ecological index of open-pit coal mining area (OMRSEI) through combination weighting. The validity of the OMRSEI was verified through correlation and comparative analyses. Moreover, the trend of ecological evolution in the study area for the next two years was predicted using the exponential smoothing method. The results indicate that the OMRSEI exhibited significant spatial correlation and validity, establishing it as an effective remote sensing indicator for ecological assessment in open-pit coal mining areas. The study area manifested an overall enhanced ecological quality from 2013 to 2023. Specifically, the Antaibao and Anjialing open-pit coal mines witnessed continuously improved ecological quality due to the progressive restoration of waste dumps. In contrast, the Dong open-pit coal mine displayed an ecological quality trend characterized by a first decline and then recovery. The average OMRSEI of the study area is predicted to continuously rise from 2025 to 2027, indicating sustained enhancement in ecological quality.
Key words： ecological quality assessment    open-pit coal mine    pressure-state-response (PSR) model    time series prediction    quantitative remote sensing
收稿日期: 2024-10-08      出版日期: 2025-12-31
ZTFLH:  TP79
基金资助:国家自然科学基金项目“山区采动地表时空动态机理与反演研究”(41671395);“山区煤矿开采对地表水资源影响规律研究”(52074133);江苏师范大学研究生科研与实践创新计划项目“露天矿区土地覆盖变化与生态环境演变研究”(2024XKT0193);江苏省地质局科研项目“地质开采致地表损伤遥感监测与碳汇潜力评估关键技术研究”(2025KJ12);江苏省青年科技人才托举工程项目“地质开采区地表损伤多模态遥感智能监测关键技术研究”(JSTJ-2025-321)
通讯作者: 胡晋山(1973-),男,博士,教授,研究方向为GIS与矿区生态环境治理。Email: xzjshu@163.com。
作者简介: 刘晋宇(2000-),男,硕士研究生,研究方向为遥感与矿区生态评价。Email: 2020221573@jsnu.edu.cn。
引用本文:
刘晋宇, 胡晋山, 康建荣, 朱益虎, 王胜利. 基于PSR和时序预测模型的露天煤矿区生态环境质量遥感评价[J]. 自然资源遥感, 2025, 37(6): 182-190.
LIU Jinyu, HU Jinshan, KANG Jianrong, ZHU Yihu, WANG Shengli. Remote sensing-based assessment of ecological quality in open-pit coal mining areas based on the pressure-state-response and time series prediction models. Remote Sensing for Natural Resources, 2025, 37(6): 182-190.
链接本文:
https://www.gtzyyg.com/CN/10.6046/zrzyyg.2024323      或      https://www.gtzyyg.com/CN/Y2025/V37/I6/182
Fig.1  研究区概况图
一级
指标		 二级
指标		 效应① 计算公式
压力 DI - DI=R-N
NDBSI - SI1=$\frac{({S}_{1}+R)-(B+N)}{({S}_{1}+R)+(B+N)}$
IBI=$\frac{2{S}_{1}/({S}_{1}+N)-[N/(N+R)+G/(G+{S}_{1}\left)\right]}{2{S}_{1}/({S}_{1}+N)+[N/(N+R)+G/(G+{S}_{1}\left)\right]}$
NDBSI=(SI+IBI)/2
状态 VHI + NDSVI=(S1-R)/(S1+R)
NRI=N/G
NDVI=(N-R)/(N+R)
VHI=PC1(NDVI,NDSVI,NRI)
SMMI + SMMI=$\sqrt[　]{(N+{S}_{1})/2}$
响应 LST - L=gain×DN+bias
T=K2/ln(K1/L+1)
LST=T/[1+(λT/ρ)ln ε]-273.15
WET + WET=0.151 1B+0.197 3G+0.328 3R+
0.340 7N-0.711 7S1-0.455 9S2
SI2 - SI2=$\sqrt[　]{B\times R}$
Tab.1  生态指标计算方法
一级指标 二级指标 熵权法权重 层次分析
法权重		 组合权重
压力 DI 0.089 2 0.187 5 0.138 4
NDBSI 0.074 0 0.250 0 0.162 0
状态 VHI 0.734 7 0.187 5 0.461 1
SMMI 0.021 9 0.125 0 0.073 5
响应 LST 0.045 8 0.125 0 0.085 4
WET 0.016 4 0.062 5 0.039 5
SI2 0.017 9 0.062 5 0.040 2
Tab.2  研究区OMRSEI各指标权重
研究年份 阈值1 阈值2 阈值3
2013年 0.400 1 0.475 0 0.540 8
2015年 0.433 0 0.529 5 0.577 8
2017年 0.481 0 0.581 2 0.631 2
2019年 0.431 5 0.518 6 0.562 1
2021年 0.454 8 0.537 4 0.596 4
2023年 0.461 3 0.546 8 0.599 9
均值 0.443 6 0.531 4 0.584 7
Tab.3  研究区OMRSEI阈值
Fig.2  研究区OMRSEI分级时空分布图

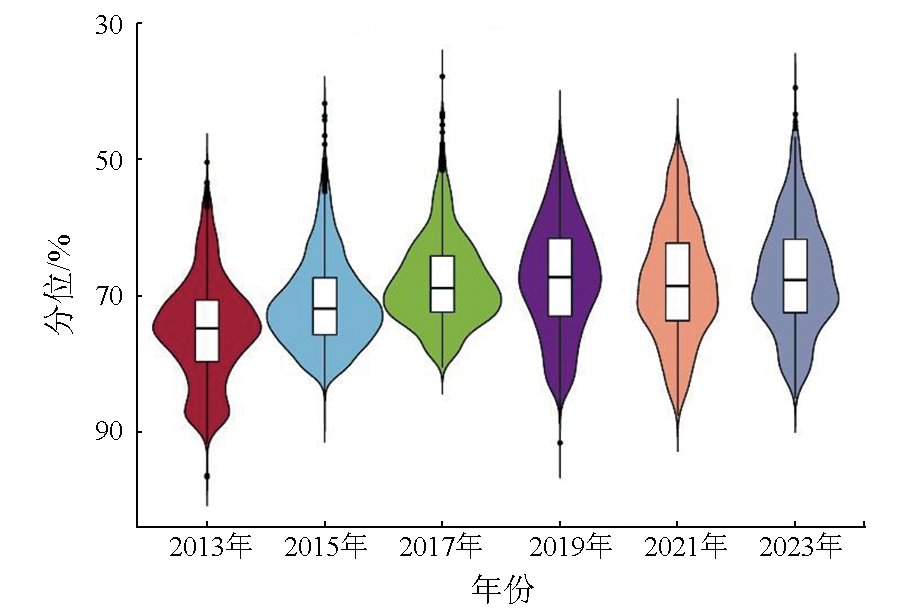

Fig.3  研究区OMRSEI小提琴图

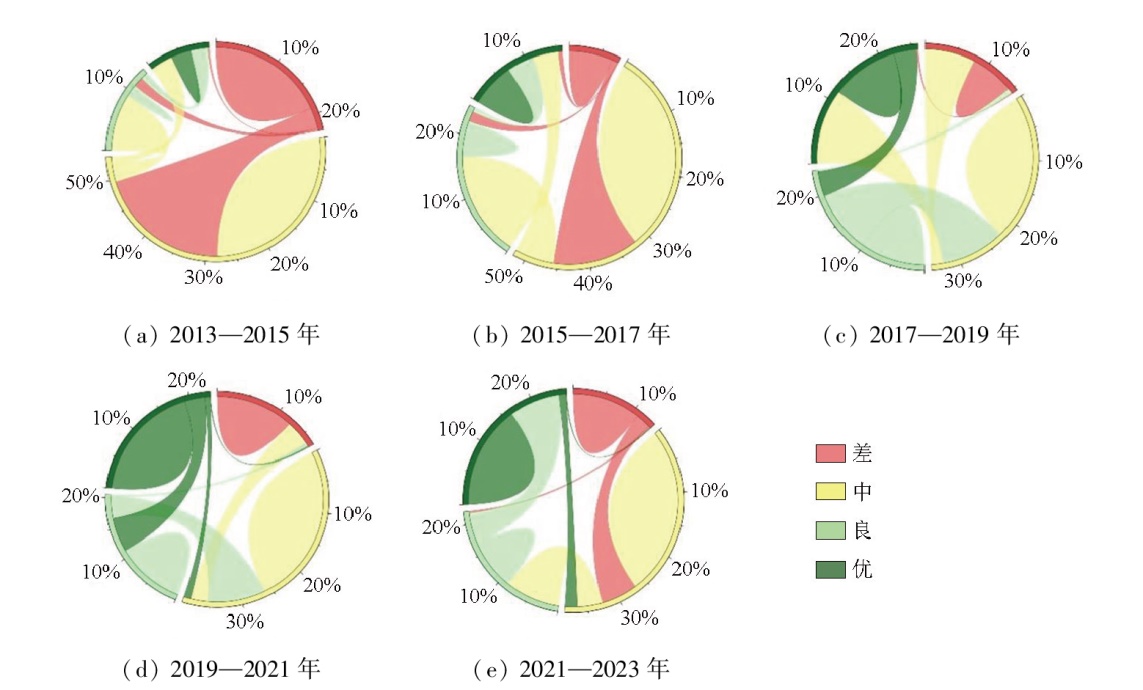

Fig.4  研究区OMRSEI变化弦图

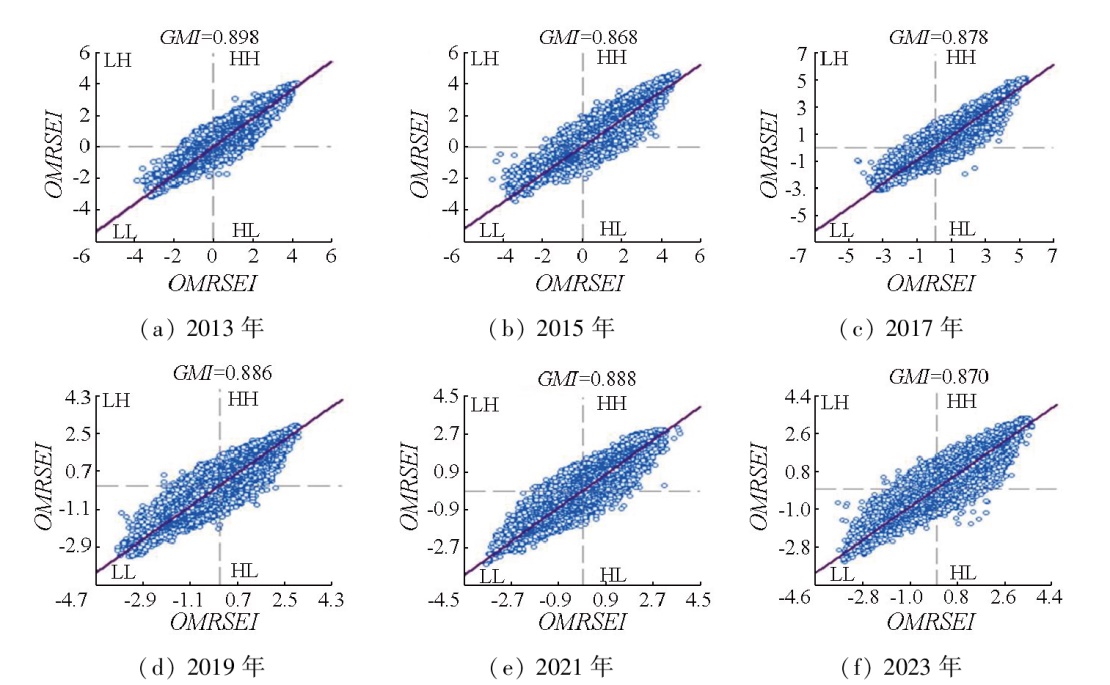

Fig.5  研究区OMRSEI GMI散点图

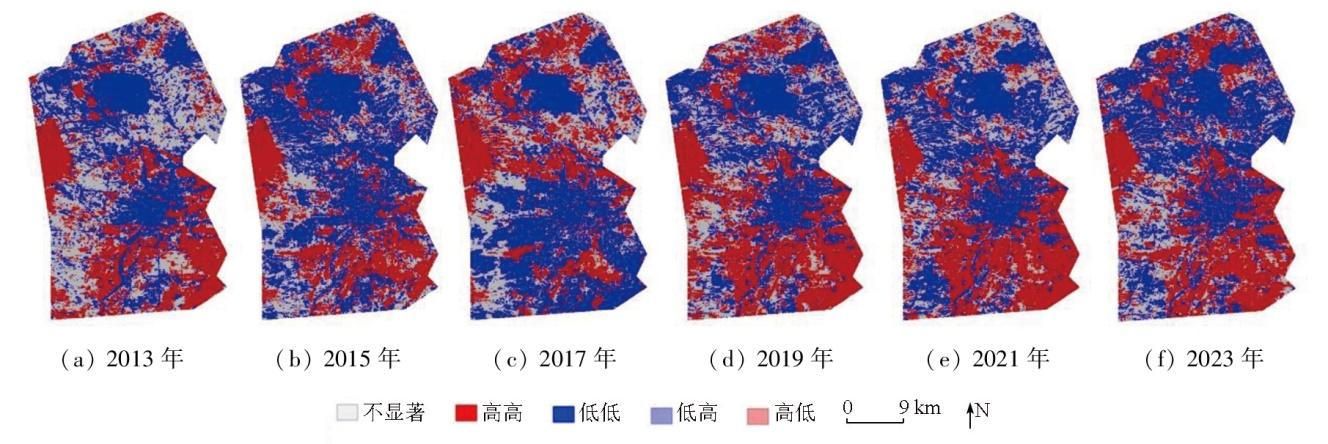

Fig.6  研究区OMRSEI LISA聚类图

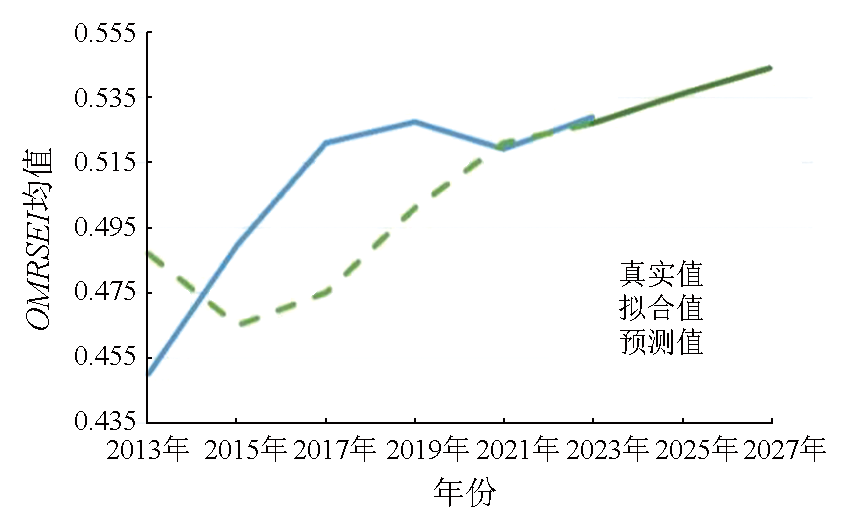

Fig.7  平朔朔南矿区OMRSEI均值预测图
Fig.8  所选指标相关性热力图

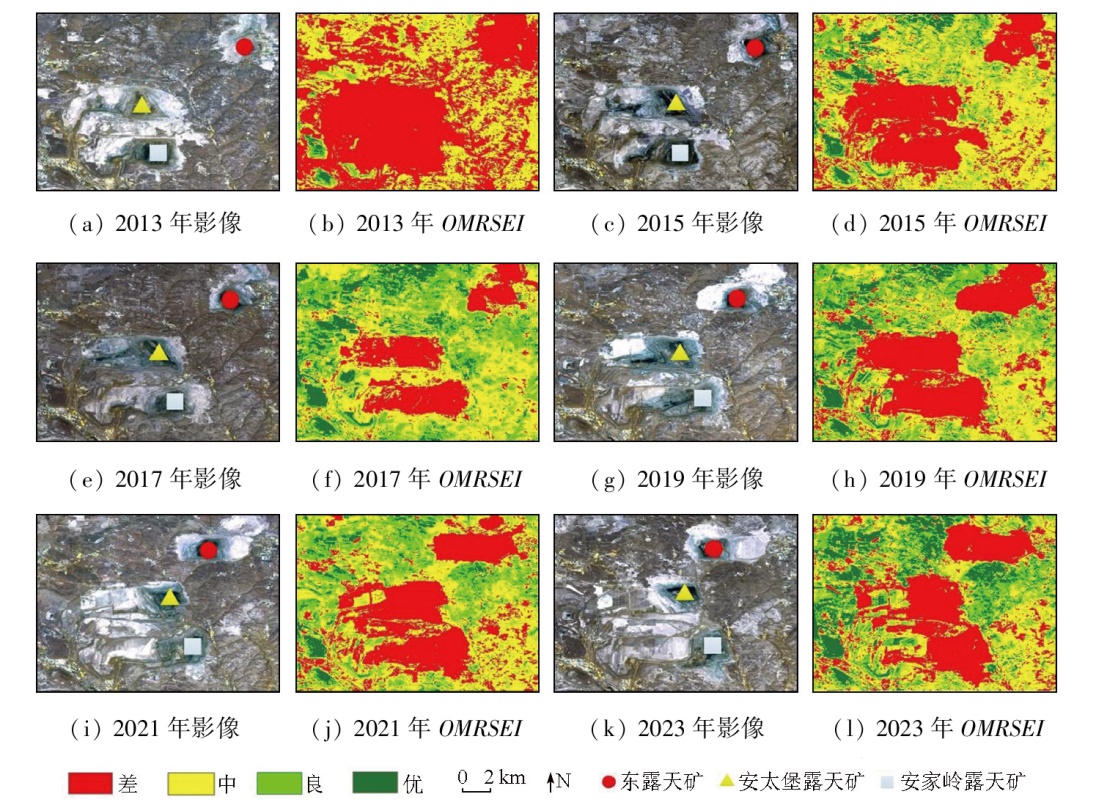

Fig.9  平朔朔南矿区2013—2023年遥感影像和生态质量对比图
