自然资源遥感  2022, Vol. 34 Issue (1): 85-92    DOI: 10.6046/zrzyyg.2021035
     技术方法 本期目录 | 过刊浏览 | 高级检索 |
顾及地理空间信息的无人机影像匹配像对提取方法
任超锋(), 蒲禹池, 张福强
长安大学地质工程与测绘学院,西安 710054
A method for extracting match pairs of UAV images considering geospatial information
REN Chaofeng(), PU Yuchi, ZHANG Fuqiang
College of Geological Engineering and Geomatics, Chang’an University, Xi’an 710054, China
全文: PDF(3432 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

针对无人机影像三维重建中匹配像对提取适应性差、效率低、需准确的先验知识等问题,提出一种顾及无人机影像地理空间信息的匹配像对提取方法。首先利用主成分分析(principal component analysis,PCA)方法将高维度的特征降至低维特征,提高检索词典构建效率; 其次,通过计算查询影像之间的反距离权重因子,构建综合检索因子,提高相似影像之间的可区分性; 最后,通过计算检索阈值,舍弃阈值后的无效匹配像对,进一步提高了影像查准率。实验结果表明,与传统脚印图法和128维特征检索方法相比,该方法获得了更高的处理效率及更全面的稀疏重建结果,尤其针对海量无人机数据更具优势。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
任超锋
蒲禹池
张福强
关键词 匹配像对视觉词袋无人机三维重建影像检索
Abstract

To overcome the shortcomings such as poor adaptability, low efficiency, and the demand for prior knowledge in the 3D reconstruction using UAV images, this study proposed a method for extracting match pairs of UAV images considering geospatial information. The steps of this method are stated as follows. Firstly, reduce high-dimensional features of the images to low-dimensional features using the principal component analysis (PCA) method to improve the construction efficiency of the retrieval vocabulary. Secondly, construct a comprehensive retrieval factor by calculating the inverse distance weighting factor between query images to improve the distinguishability between similar images. Finally, discard invalid match pairs by calculating the retrieval threshold to improve the query precision of images. The experimental results show that, compared to the traditional footprint map method and 128-dimensional feature retrieval method, this method enjoys higher processing efficiency and more comprehensive sparse reconstruction results, especially for the massive UAV data.

Key wordsmatch pairs    bag of visual words    UAV    3D reconstruction    image retrieval
收稿日期: 2021-02-07      出版日期: 2022-03-14
ZTFLH:  TP79
基金资助:国家自然科学基金项目“非常规摄影测量模式下无人机影像匹配像对的提取方法研究”编号(41801383);国家重点研发计划项目“岩溶山区特大滑坡早期识别与监测预警”编号(2018YFC1504805);中央高校基本科研业务费“海量无人机影像三维自动重建关键技术研究”编号(300102269206);“三维模型智能重建”共同资助编号(300102269304)
作者简介: 任超锋(1984-),男,博士,讲师,研究方向为低空无人机摄影测量。Email: ren_cf@163.com
引用本文:
任超锋, 蒲禹池, 张福强. 顾及地理空间信息的无人机影像匹配像对提取方法[J]. 自然资源遥感, 2022, 34(1): 85-92.
REN Chaofeng, PU Yuchi, ZHANG Fuqiang. A method for extracting match pairs of UAV images considering geospatial information. Remote Sensing for Natural Resources, 2022, 34(1): 85-92.
链接本文:
https://www.gtzyyg.com/CN/10.6046/zrzyyg.2021035      或      https://www.gtzyyg.com/CN/Y2022/V34/I1/85

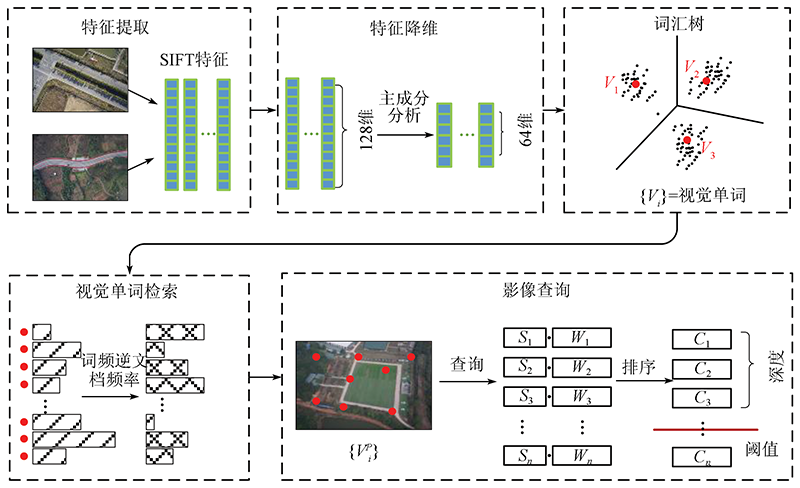

Fig.1  顾及地理空间信息的UAV影像匹配像对提取方法流程

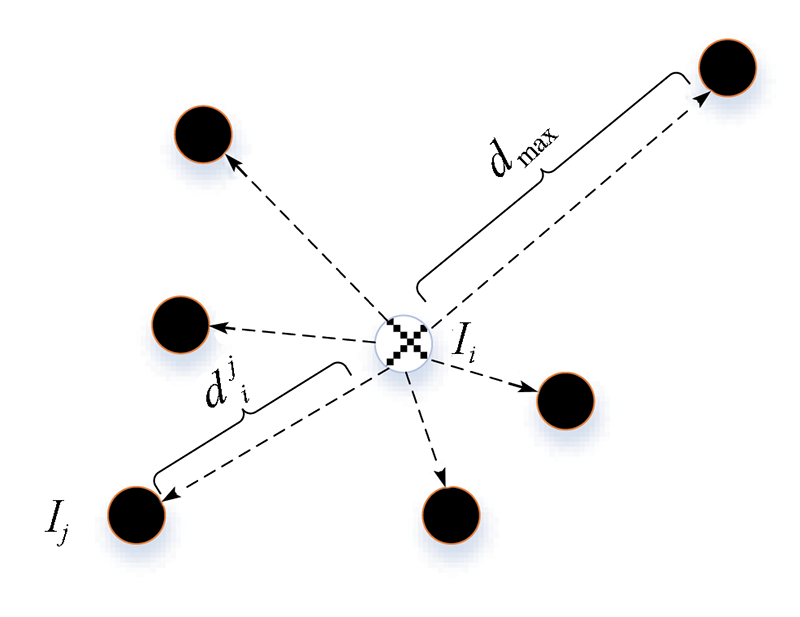

Fig.2  反距离权重因子
Fig.3  查询深度阈值
数据 传感器 采集方式 数据类型 位置 主要地形 影像大小/像素 影像数量/幅 采集时间 地面分辨率/cm
A 单相机 等高 正射 陕西省华阳乡 高山峡谷 7 952×5 304 1 659 2018-02-12 4
B 单相机 变高 正射 贵州省鸡场镇 高山滑坡 5 472×3 648 465 2019-07-25 10
C 单相机 等高/贴近 正射/倾斜 贵州省鬃岭镇 高山滑坡 5 472×3 648 2 137 2019-07-29 8/1
D 双相机 等高 倾斜 山西省平陆县 丘陵 7 952×5 304 2 728 2019-04-07 2
E 五相机 等高 倾斜 陕西省大同市 城市 6 000×4 000 8 585 2019-08-26 2
Tab.1  试验无人机数据集

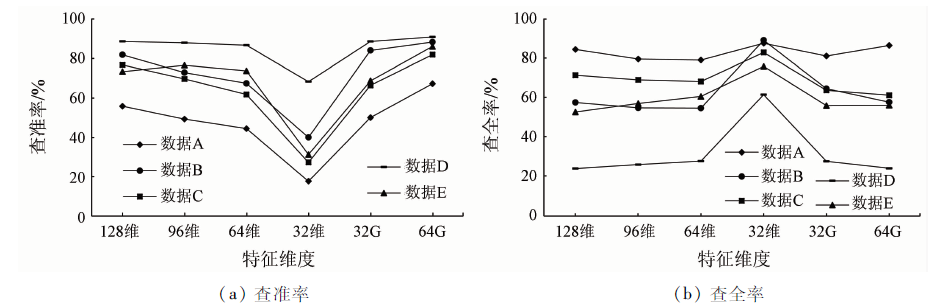

Fig.4  不同维度模式的影像查准率和查全率

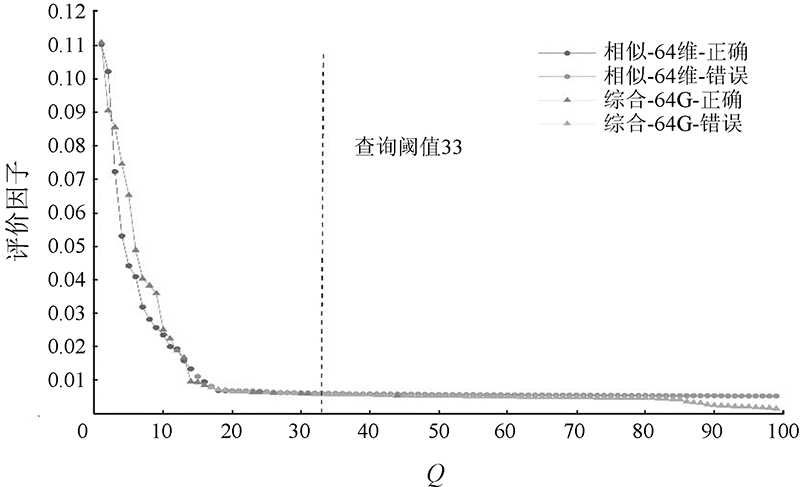

Fig.5  相似因子与综合因子曲线

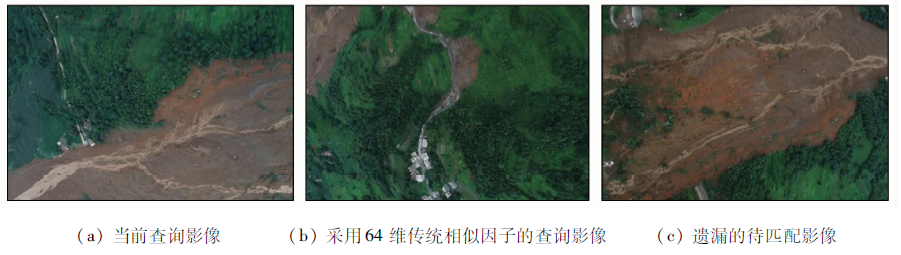

Fig.6  部分查询影像

数据
查准率 查全率
查询深度
Q
128维 96维 64维 64G 128维 96维 64维 64G
数据C 100 88.66 87.95 86.78 90.91 23.82 25.79 27.60 23.92
200 82.91 79.26 75.77 83.01 46.41 48.96 50.56 44.26
300 74.43 64.91 60.27 75.49 63.67 61.39 62.87 64.49
数据D 100 99.22 99.03 98.81 99.79 29.76 33.44 37.03 31.98
200 91.47 88.87 86.75 95.30 60.96 64.27 68.20 63.34
300 77.83 72.94 68.20 83.99 78.42 78.91 80.76 82.01
数据E 100 73.36 76.64 73.76 86.11 52.52 56.84 60.43 55.93
200 35.64 44.86 46.14 59.40 55.72 69.19 77.56 78.02
300 29.06 35.00 33.09 43.74 66.21 79.23 84.34 85.77
Tab.2  不同查询深度的查准率和查全率
数据 方法 词汇树/min 索引/min 检索/min 双像匹配/min 稀疏重建/min 连接点 成功数 总数 投影误差/像素
数据A 脚印图 4.20 28.81 362 822 1 591 1 591 0.70
128维 5.34 1.70 1.38 6.66 30.36 332 736 1 581 1 659 0.70
64G 3.55 1.17 2.12 1.26 28.24 364 783 1 591 1 659 0.70
数据B 脚印图 4.64 5.17 121 527 465 465 0.70
128维 5.29 0.49 0.31 1.54 4.94 119 183 465 465 0.70
64G 3.46 0.24 0.35 0.63 5.20 115 048 465 465 0.70
数据C 脚印图 11.28 61.69 299 041 1 634 2 137 0.72
128维 5.12 1.35 1.27 8.12 58.60 323 224 2 100 2 137 0.73
64G 3.44 0.82 1.52 3.79 58.49 338 049 2 123 2 137 0.72
数据D 脚印图 16.67 103.17 367 247 2 728 2 728 0.75
128维 5.23 0.94 0.62 26.01 105.41 367 238 2 728 2 728 0.75
64G 3.44 0.46 1.54 7.35 103.38 375 990 2 728 2 728 0.75
数据E 脚印图 83.50 3 096.26 1 342 650 8 585 8 585 0.71
128 11.80 11.89 9.92 61.10 2 169.59 1 344 968 8 585 8 585 0.71
64G 7.20 9.07 11.56 17.89 2 085.62 1 488 024 8 585 8 585 0.70
Tab.3  稀疏重建的效率、完整性及精度

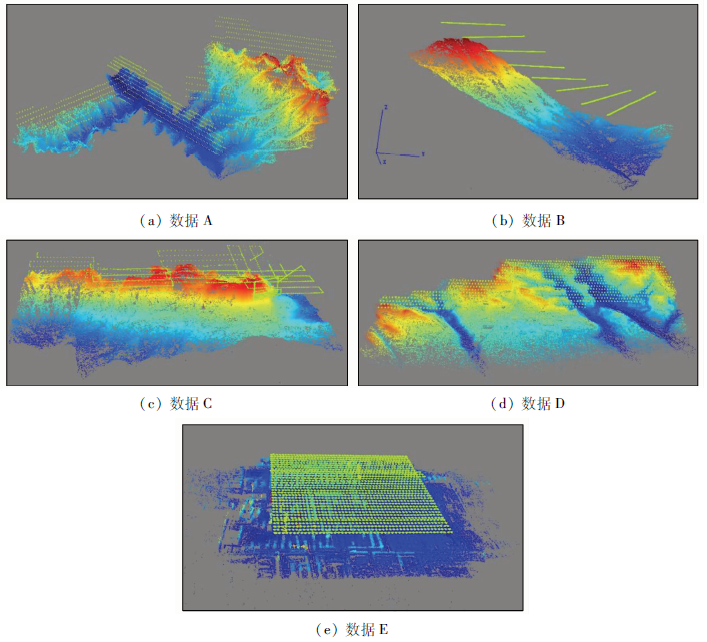

Fig.7  本文方法提取像对的稀疏重建结果
