Study of the correlation between optical vegetation index and SAR data and the main affecting factors

doi:10.6046/gtzyyg.2020.02.17

Abstract
Figures/Tables
References
Related Articles
Metrics

Download: PDF(2953 KB) HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks

Abstract

Vegetation index is an important approach in vegetation monitoring and investigation. SAR data are free with weather condition observing data day and night. Building relationships between SAR data and vegetation indices can contribute to fusing two data to improve temporal monitoring in forest of mountain areas. Therefore, the authors made a statistical analysis between vegetation indices including NDVI, EVI, GVI, NDWI and C band SAR data and then made a comparison about difference of correlation between NDVI, NDWI and X, C, L band SAR data in different forest disturbances in Genhe forest region of Da Hinggan Mountains in Inner Mongolia. The results are as follows: ①PR and interferometry coefficients both have significant negative correlations with optical vegetation indices, PR has strong linear correlations with NDVI, EVI, GVI (R²=0.40~0.49), and interferometry coefficients have strong linear correlations with all optical indices (R²=0.43~0.51). ②Ground cover can affect linear regression between VH and NDVI. Scrub-grass land and fires scars with thick vegetation layer and forest land have a strong linear correlation with NDVI (R²=0.64~0.76). ③The correlations are different for different forest disturbances: In fires scars, NDVI has significant negative correlations with X- band HH, and C band PR and NDWI have a significant positive correlation with C band VH. In deforestation areas, L-band PR has significant negative correlations with NDVI, and L band VV and VH have significant positive correlations with NDWI. In undisturbed forest land, C-band PR has significant negative correlations with NDVI and NDWI.

Keywords vegetation index SAR remote sensing parameter fire scar deforestation correlation

TP79

Corresponding Authors: Huaguo HUANG E-mail: huaguo_huang@bjfu.edu.cn

Issue Date: 18 June 2020

	Service

	E-mail this article
	E-mail Alert
	RSS
	Articles by authors

	Chuan WANG
	Jinghui FAN
	Simei LIN
	Yueming RAO
	Huaguo HUANG

Cite this article:

Chuan WANG,Jinghui FAN,Simei LIN, et al. Study of the correlation between optical vegetation index and SAR data and the main affecting factors[J]. Remote Sensing for Land & Resources, 2020, 32(2): 130-137.

URL:

https://www.gtzyyg.com/EN/10.6046/gtzyyg.2020.02.17 OR https://www.gtzyyg.com/EN/Y2020/V32/I2/130

Fig.1 Satellite image of the study area

Tab.1 The essential information of fire scars

Tab.2 The essential information of deforestation areas

Tab.3 The basic information and purpose of analysis about satellite sensors

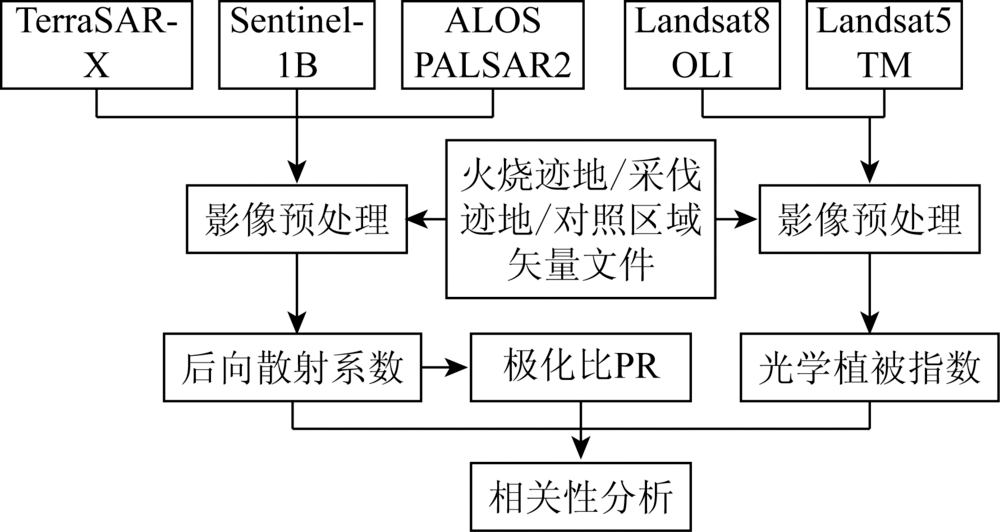

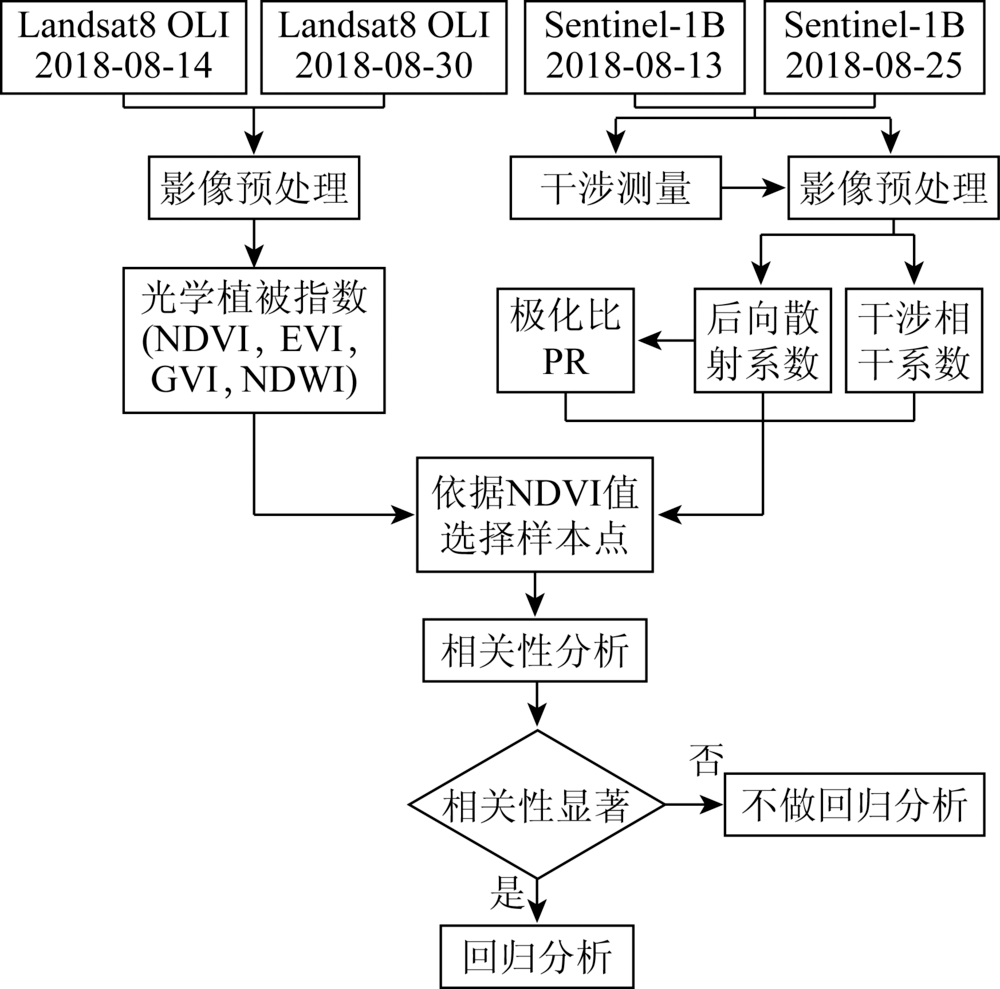

Fig.2 Flow chart of correlation analysis between optical indices and SAR data

Fig.3 Influence of forest disturbance on correlation between optical indices and SAR data

植被指数	$R 1 ①$			$R 2 ②$
植被指数	VV	VH	PR	VV	VH	PR
NDVI	0.06	0.49^**	-0.71^**	-0.03	0.37^**	-0.67^**
EVI	0.09	0.47^**	-0.64^**	0.04	0.43^**	-0.68^**
GVI	0.10	0.48^**	-0.63^**	-0.03	0.36^**	-0.66^**
NDWI	0.31^**	0.59^**	-0.54^**	0.31^**	0.54^**	-0.49^**

Tab.4 Correlation analysis between SAR data of Sentinel-1B and optical indices of Landsat8 images

植被指数	8月14日		8月30日
植被指数	γ_VV	γ_VH	γ_VV	γ_VH
NDVI	-0.5 $1 ** ①$	-0.72^**	-0.49^**	-0.70^**
EVI	-0.49^**	-0.68^**	-0.47^**	-0.66^**
GVI	-0.50^**	-0.67^**	-0.48^**	-0.66^**
NDWI	-0.50^**	-0.68^**	-0.42^**	-0.59^**

Tab.5 Correlation analysis between interferometry coefficients and optical indices of Landsat8 images

植被指数	$R 12$		$R 22$		$R 32$		$R 42$
植被指数	VH	PR	VH	PR	γ_VV	γ_VH	γ_VV	γ_VH
NDVI	0.23	0.50	0.14	0.45	0.26	0.51	0.24	0.47
EVI	0.21	0.39	0.18	0.44	0.24	0.46	0.21	0.43
GVI	0.22	0.39	0.13	0.44	0.24	0.45	0.22	0.43
NDWI	0.34	0.28	0.29	0.23	0.24	0.46	0.18	0.35

Tab.6 Correlation analysis between VH, PR, interferometry coefficients of Sentinel-1B and optical indices of Landsat8 images

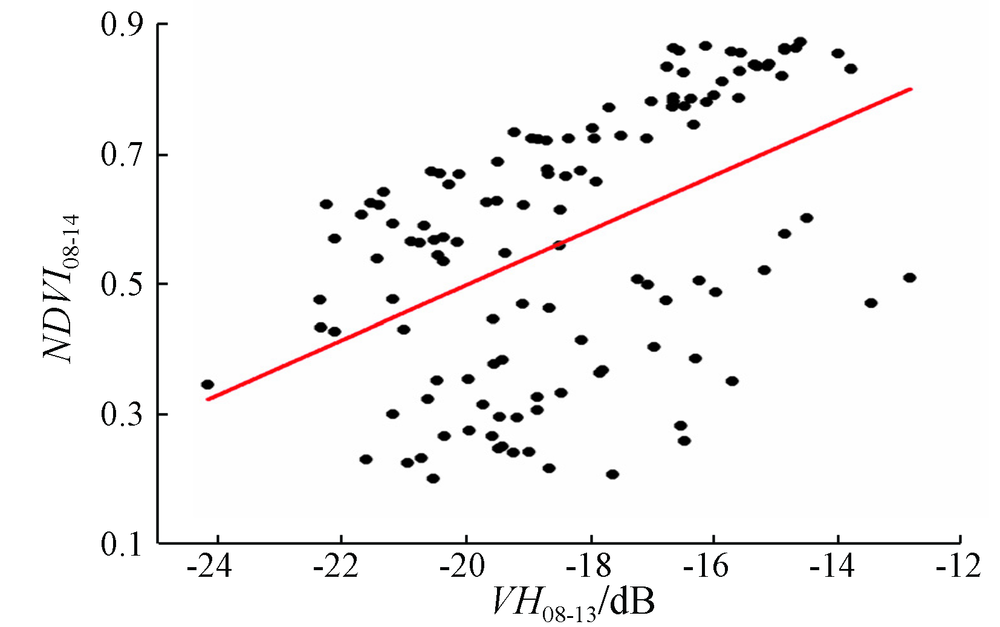

Fig.4 The scatter diagram between backscattering coefficient and NDVI

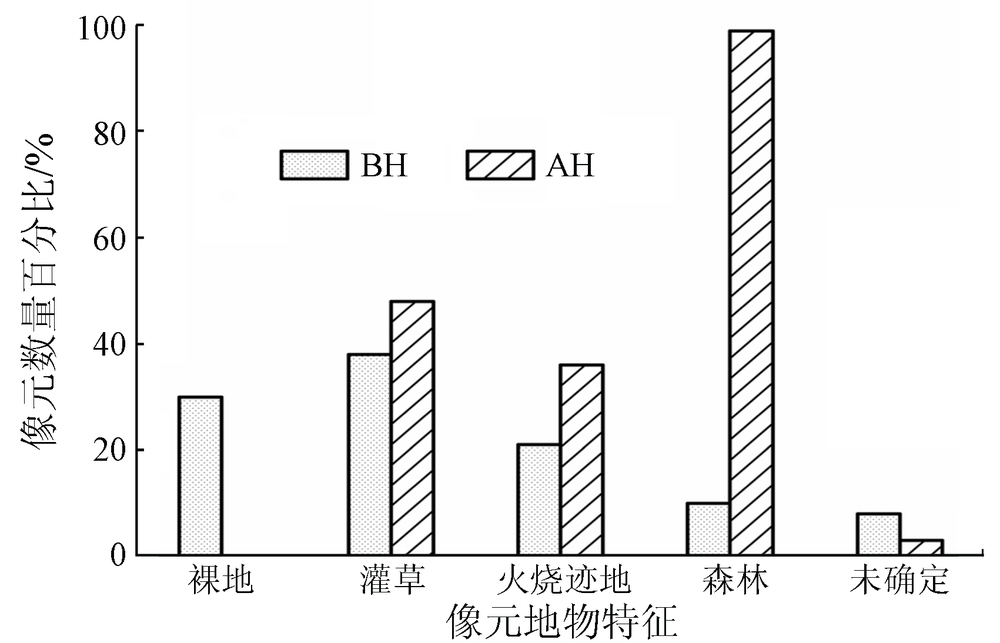

Fig.5 Quantitative statistic for pixels with different ground objects for AH and BH

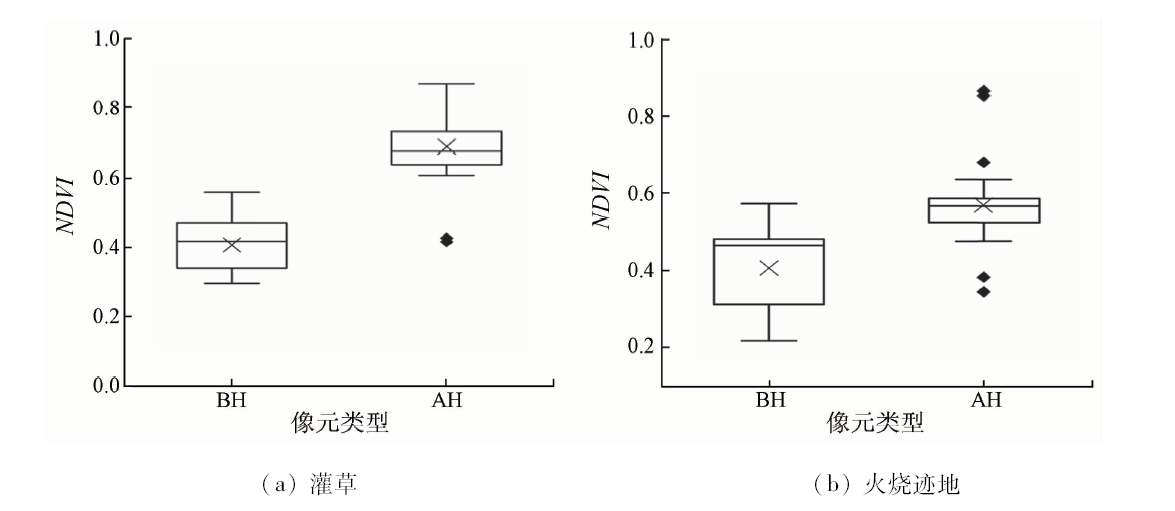

Fig.6 Distribution characteristics of NDVI in shrub areas and fire scars

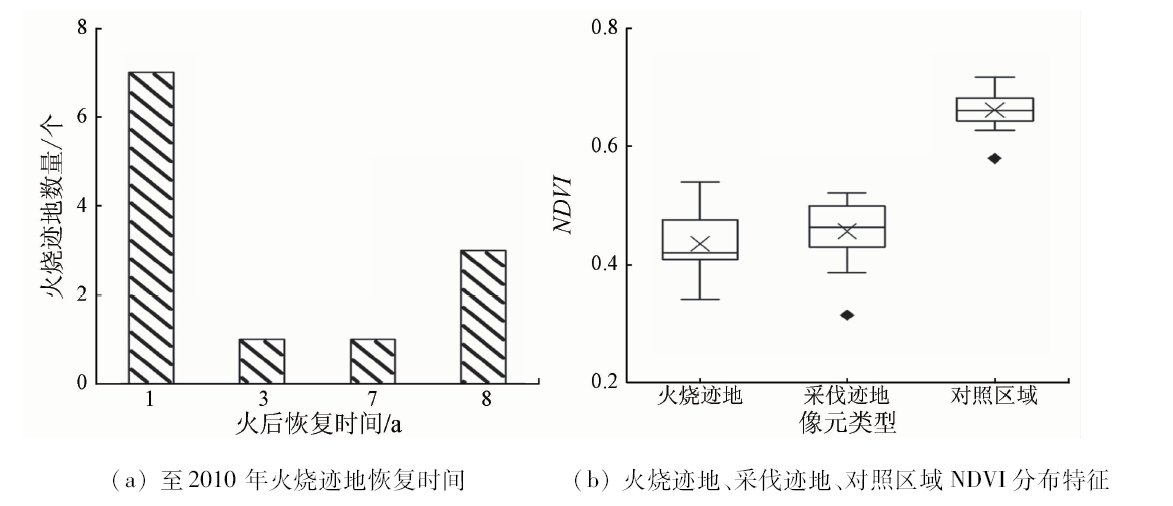

Fig.7 Recovering time of fires scars and distribution characteristics of NDVI

[1]	田庆久, 闵祥军. 植被指数研究进展[J]. 地球科学进展, 1998,13(4):327-333.
[1]	Tian Q J, Min X J. Advances in study on vegetation indices[J]. Advances in Earth Sciences, 1998,13(4):327-333.
[2]	薛娟, 俞琳锋, 林起楠, 等. 基于Sentinel-1多时相InSAR影像的云南松切梢小蠹危害程度监测[J]. 国土资源遥感, 2018,30(4):111-117.doi: 10.6046/gtzyyg.2018.04.17.
[2]	Xue J, Yu L F, Lin Q N, Using Sentinel-1 multi-temporal InSAR data to monitor the damage degree of shoot beetle in Yunnan pine forest.Remote Sensing for Land and Resources. 2018,30(4):111-117.doi: 10.6046/gtzyyg.2018.04.17.
[3]	Reiche J, Verbesselt J, Hoekman D, et al. Fusing Landsat and SAR time series to detect deforestation in the tropics[J]. Remote Sensing of Environment, 2015,156(156):276-293. doi: 10.1016/j.rse.2014.10.001 url: https://linkinghub.elsevier.com/retrieve/pii/S0034425714003885
[4]	Capodici F, D’urso G, Maltese A. Investigating the relationship between X-band SAR data from COSMO-SkyMed satellite and NDVI for LAI detection[J]. Remote Sensing, 2013,5(3):1389-1404.
[5]	Gebhardt S, Huth J, Nguyen L D, et al. A comparison of TerraSAR-X Quadpol backscattering with RapidEye multispectral vegetation indices over rice fields in the Mekong Delta,Vietnam[J]. International Journal of Remote Sensing, 2012,33(24):7644-7661.
[6]	Stendardi L, Karlsen S R, Niedrist G, et al. Exploiting time series of Sentinel-1 and Sentinel-2 imagery to detect meadow phenology in mountain regions[J]. Remote Sensing, 2019,11(5):542.
[7]	Baghdadi N, Boyer N, Todoroff P, et al. Potential of SAR sensors TerraSAR-X,ASAR/ENVISAT and PALSAR/ALOS for monitoring sugarcane crops on Reunion Island[J]. Remote Sensing of Environment, 2009,113(8):1724-1738.
[8]	Wang X, Ge L, Li X. Pasture monitoring using SAR with Cosmo-skymed,Envisat ASAR,and ALOS PALSAR in Otway,Australia[J]. Remote Sensing, 2013,5(7):3611-3636. doi: 10.3390/rs5073611 url: http://www.mdpi.com/2072-4292/5/7/3611
[9]	Tanase M A, Santoro M, De l R J, et al.Sensitivity of X-,C-,and L-band SAR backscatter to burn severity in mediterranean pine forests[J]. IEEE Transactions on Geoscience and Remote Sensing, 2010,48(10):3663-3675.
[10]	高永年, 张万昌. 遥感影像地形校正研究进展及其比较实验[J]. 地理研究, 2008,27(2):467-477.
[10]	Gao Y N, Zhang W C. Comparison test and research progress of topographic correction on remotely sensed data[J]. Geographical Research, 2008,27(2):467-477.
[11]	Lievens H, Verhoest N E C.On the Retrieval of soil moisture in wheat fields from L-band SAR based on water cloud modeling,the IEM,and effective roughness parameters[J]. IEEE Geoscience and Remote Sensing Letters, 2011,8(4):740-744. doi: 10.1109/LGRS.2011.2106109 url: http://ieeexplore.ieee.org/document/5721785/
[12]	Rouse J W, Haas R H, Schell J A, et al. Monitoring vegetation systems in the great plains with ERTS[J]. NASA Special Publication, 1973,351:309.
[13]	Hui Q L, Huete A. Feedback based modification of the NDVI to minimize canopy background and atmospheric noise[J]. IEEE Transactions on Geoscience and Remote Sensing, 1995,33(2):457-465. doi: 10.1109/TGRS.36 url: https://ieeexplore.ieee.org/xpl/RecentIssue.jsp?punumber=36
[14]	Baig M H A, Zhang L, Tong S, et al. Derivation of a tasselled cap transformation based on Landsat8 at-satellite reflectance[J]. Remote Sensing Letters, 2014,5(5):423-431. doi: 10.1080/2150704X.2014.915434 url: http://dx.doi.org/10.1080/2150704X.2014.915434
[15]	Gao B C. NDWI—A normalized difference water index for remote sensing of vegetation liquid water from space[J]. Remote sensing of Environment, 1996,58(3):257-266. doi: 10.1016/S0034-4257(96)00067-3 url: https://linkinghub.elsevier.com/retrieve/pii/S0034425796000673
[16]	侯学会, 刘思含, 高帅, 等. 基于Prosail模型和Landsat8数据的小麦冠层含水量反演比较[J]. 麦类作物学报, 2018,38(4):493-497.
[16]	Hou X H, Liu S H, Gao S, et al. Comparison between Prosail model and Landsat8 images in inversion of water content of wheat canopy[J]. Journal of Triticeae Crops, 2018,38(4):493-497.
[17]	Woodhouse I H. 微波遥感导论[M]. 北京: 科学出版社, 2014.
[17]	Woodhouse I H. Introduction to microwave remote sensing[M]. Beijing: Science Press, 2014.
[18]	王超, 张红, 刘智. 星载合成孔径雷达干涉测量[M]. 北京: 科学出版社, 2002.
[18]	Wang C, Zhang H, Liu Z. Spaceborne synthetic aperture Radar interferometry[M]. Beijing: Science Press, 2002.
[19]	Jung J, Yun S H, Kim D J, et al. Damage-mapping algorithm based on coherence model using multitemporal polarimetric-interferometric SAR data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2018,56(3):1520-1532. doi: 10.1109/TGRS.2017.2764748 url: http://ieeexplore.ieee.org/document/8124198/
[20]	Ulaby F T. Handbook of Radar scattering statistics for terrain[M]. Norwood,MA:Artech House, 1989.
[21]	Enquist B J, Niklas K J. Global allocation rules for patterns of biomass partitioning in seed plants[J]. Science, 2002,295(5559):1517-1520.
[22]	West G B, Enquist B J, Brown J H. A general quantitative theory of forest structure and dynamics[J]. Proceedings of the National Academy of Sciences, 2009,106(17):7040-7045.
[23]	Huang H, Zhang Z, Ni W, et al. Extending RAPID model to simulate forest microwave backscattering[J], Remote Sensing of Environment, 2018,217:272-291. doi: 10.1016/j.rse.2018.08.011 url: https://linkinghub.elsevier.com/retrieve/pii/S0034425718303766
