Remote Sensing for Land & Resources    2020, Vol. 32 Issue (3) : 216-221     DOI: 10.6046/gtzyyg.2020.03.28
|
Typical model analysis of mine geological environment restoration and management in Zhejiang Province based on domestic high-resolution satellite data
WANG Jie1(), LIU Xiaoyang1, YANG Jinzhong1, ZHOU Yingjie1, An Na1, WANG Zhihui2
1. China Aero Geophysical Survey and Remote Sensing Center for Natural Resources, Beijing 100083, China
2. School of Land Science and Technology, China University of Geosciences(Beijing), Beijing 100083, China
Download: PDF(6623 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

Based on the two-year high-resolution satellite image data acquired in 2016 and 2017, the authors carried out remote sensing investigation and dynamic monitoring of mine geological environment restoration and management in Zhejiang Province. By using the method of interpretation and field investigation by domestic satellite remote sensing, the status quo of mine restoration and management in Zhejiang Province was clarified. According to the results of remote sensing monitoring and impact characteristics, six models were summarized and classified: ecological restoration model, industrial park model, agricultural land-making model, landscape transformation model, disaster management model and comprehensive management model. These six models can be used for reference and promotion of mine geological environment restoration and management in other areas.
Keywords domestic high-resolution satellite      remote sensing monitoring      mine recovery and treatment      typical model
:  TP79
Issue Date: 09 October 2020
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Jie WANG
Xiaoyang LIU
Jinzhong YANG
Yingjie ZHOU
Na An
Zhihui WANG
Cite this article:
Jie WANG,Xiaoyang LIU,Jinzhong YANG, et al. Typical model analysis of mine geological environment restoration and management in Zhejiang Province based on domestic high-resolution satellite data[J]. Remote Sensing for Land & Resources, 2020, 32(3): 216-221.
URL:
https://www.gtzyyg.com/EN/10.6046/gtzyyg.2020.03.28     OR     https://www.gtzyyg.com/EN/Y2020/V32/I3/216
数据类型 辐射量
化级/bit		 空间分辨率/m 扫描幅
宽/km		 卫星重访
周期/d		 光谱波段/nm
全色 多光谱 蓝光 绿光 红光 近红外 全色
GJ-1 11 2 0.5 12 4 630~690 520~590 450~520 770~890 450~890
GF-2 15 4 1 45 5 450~520 520~590 630~690 770~890 450~900
BJ-2 10 4 1 24 1 440~510 510~590 600~670 760~910 450~650
Tab.1  Primary data source parameter

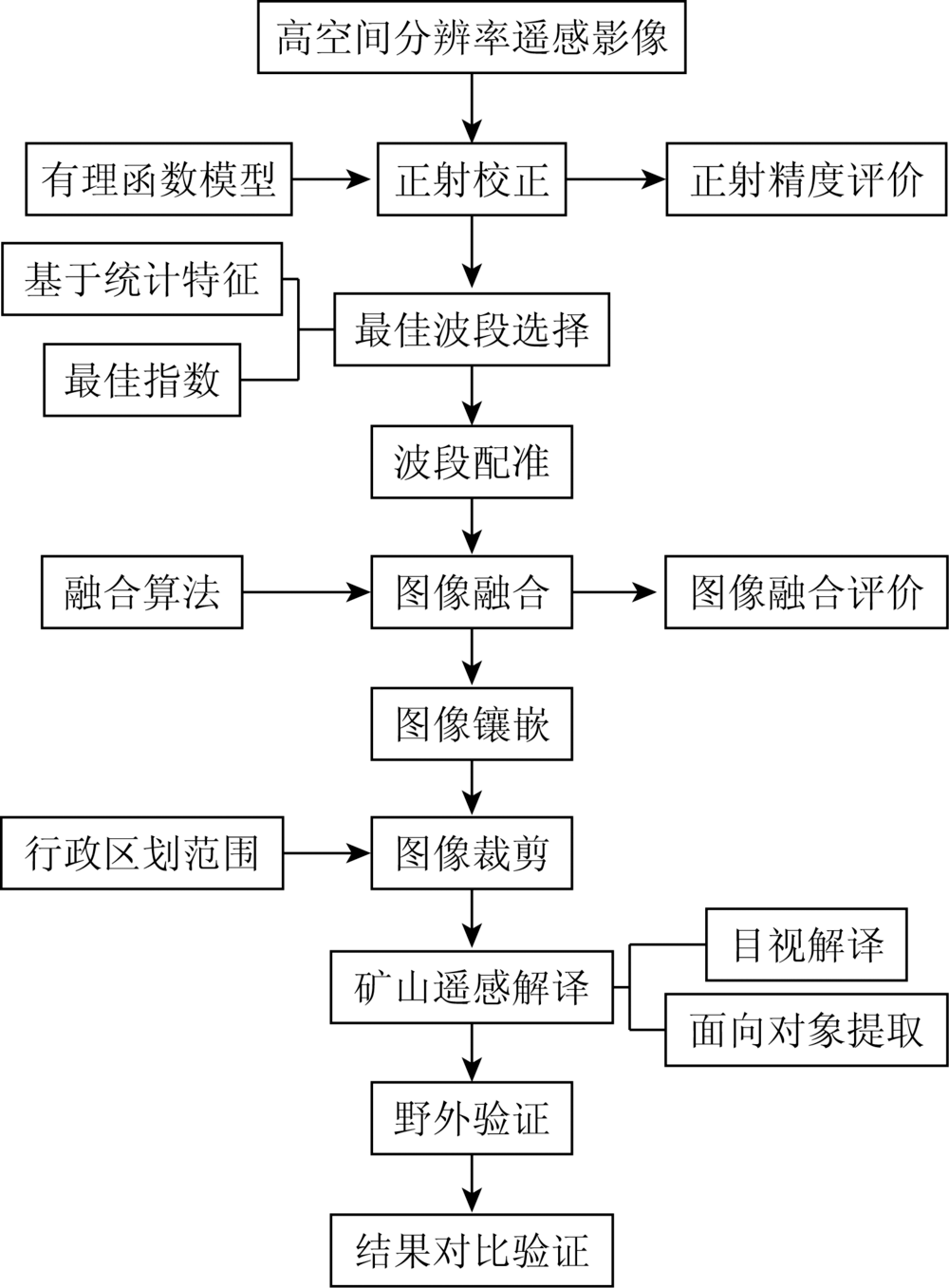

Fig.1  Technical flow chart
类型 面积/hm2 占比/%
恢复治理采场 6 483.40 82.70
中转场地 1 094.66 13.96
固体废弃物 153.62 1.96
矿山建筑 14.99 0.19
地质灾害 72.30 0.92
连带治理 20.98 0.27
合计 7 839.95 100.00
Tab.2  Statistics of mine geological environment restoration and management

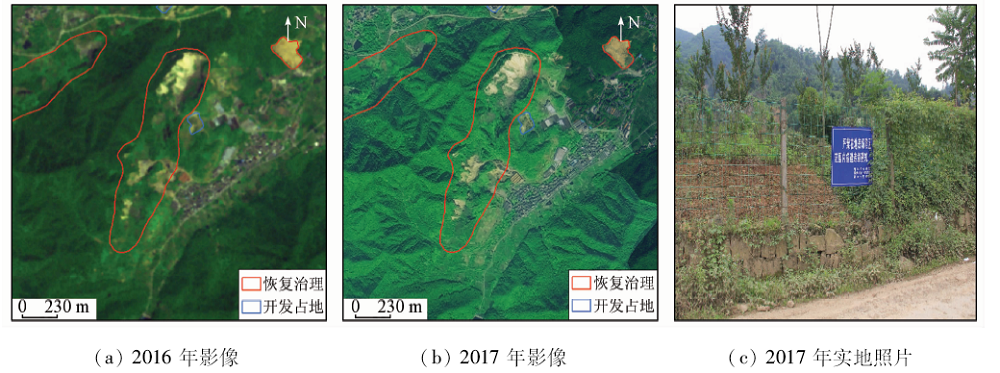

Fig.2  Remote sensing image and field photo of Longshan waste mine in Shangwang Village

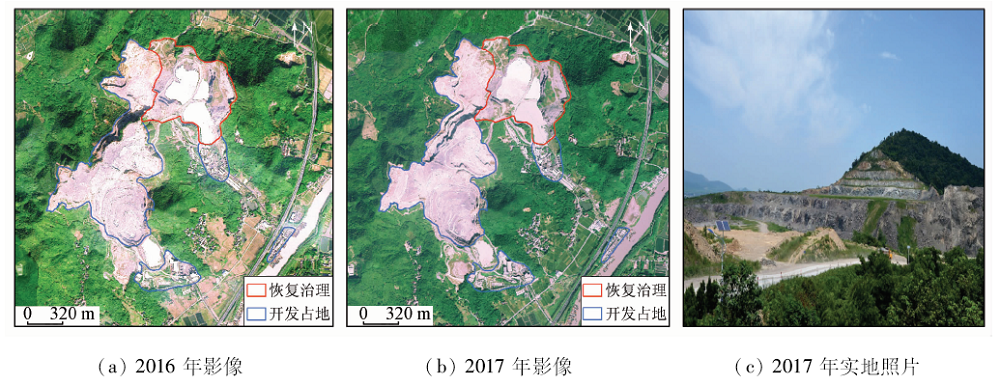

Fig.3  Remote sensing image and field photo of Banzhuang Mountain stone mine

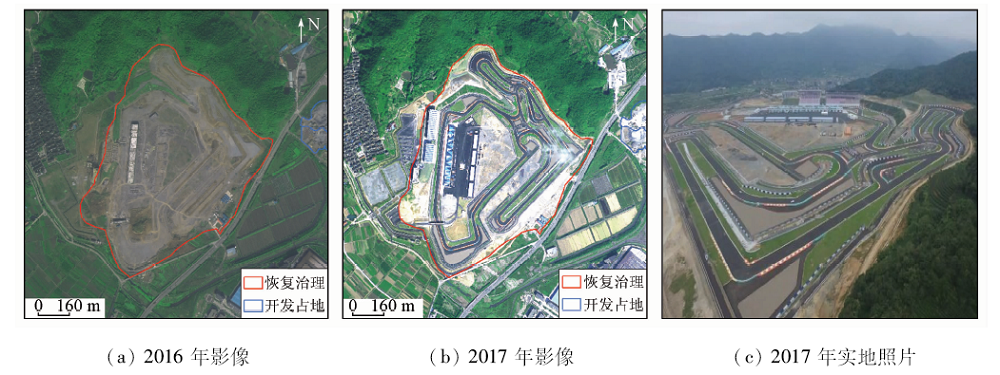

Fig.4  Remote sensing images and field photos of Hongdong stone factory

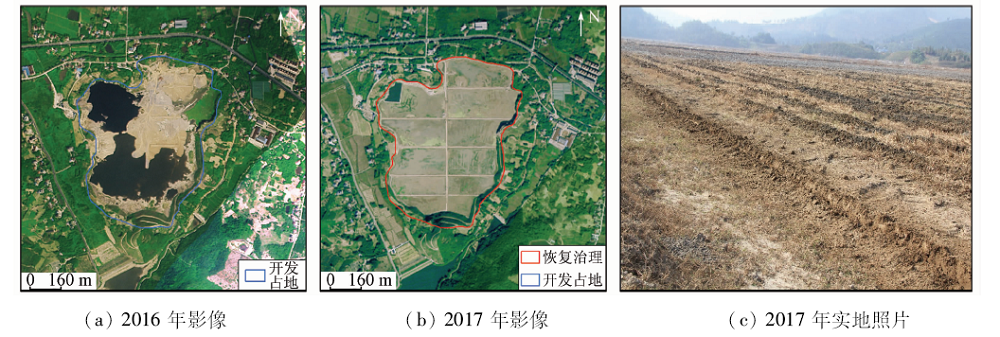

Fig.5  Remote sensing images and field photos of Niutoujing rock deposit
Fig.6  Remote sensing images and field photos of Lizhu iron mine
Fig.7  Remote sensing images and field photos of Xinkaiyuan mine
