Remote Sensing for Natural Resources    2025, Vol. 37 Issue (5) : 152-161     DOI: 10.6046/zrzyyg.2024208
|
End-to-end land cover classification based on panchromatic-multispectral dual-stream convolutional network
LI Yinglong1,2(), DENG Yupeng1, KONG Yunlong1, CHEN Jingbo1(), MENG Yu1, LIU Diyou1
1. National Engineering Research Center for Geoinformatics，Aerospace Information Research Institute，Chinese Academy of Sciences，Beijing 100094，China
2. School of Electronic，Electrical and Communication Engineering，University of Chinese Academy of Sciences，Beijing 100049，China
Download: PDF(5306 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

Multispectral （MS） and panchromatic （PAN） images serve as primary data sources for visible-near-infrared optical remote sensing imagery. In a typical land cover classification workflow，the spatial resolution of MS images is generally enhanced using pixel-level fusion methods，followed by image classification. However，the pixel-level fusion process is characterized by considerable time consumption and inconsistency with the optimization objectives of land cover classification，failing to meet the demand for end-to-end remote sensing image classification. To address these challenges，this paper proposed a dual-stream fully convolutional neural network，DSEUNet，which obviates the need for pixel-level fusion. Specifically，two branches were constructed based on the EfficientNet-B3 network to extract features from PAN and MS images，respectively. It was followed by feature-level fusion and decoding，thus outputting the ultimate classification results. Considering that PAN and MS images focus on different features of land cover elements，a spatial attention mechanism was incorporated in the PAN branch to enhance the perception of spatial information，such as details and edges. Moreover，a channel attention mechanism was incorporated in the MS branch to improve the perception of reflectance differences across multiple bands. Experiments on the 10-meter land cover dataset and ablation studies of the network structure demonstrate that the proposed network exhibited higher classification accuracy and faster inference speed. With the same backbone network，DSEUNet outperformed traditional pixel-level fusion-based classification methods，with an increase of 1.62 percentage points in mIoU，1.36 percentage points in mFscore，and 1.49 percentage points in Kappa coefficient，as well as a 17.69% improvement in inference speed.
Keywords land cover classification      deep learning      dual-stream network      panchromatic （PAN） image      multispectral （MS） image
ZTFLH:  TP79
Issue Date: 28 October 2025
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Yinglong LI
Yupeng DENG
Yunlong KONG
Jingbo CHEN
Yu MENG
Diyou LIU
Cite this article:
Yinglong LI,Yupeng DENG,Yunlong KONG, et al. End-to-end land cover classification based on panchromatic-multispectral dual-stream convolutional network[J]. Remote Sensing for Natural Resources, 2025, 37(5): 152-161.
URL:
https://www.gtzyyg.com/EN/10.6046/zrzyyg.2024208     OR     https://www.gtzyyg.com/EN/Y2025/V37/I5/152
Fig.1  Examples of multispectral，panchromatic and label images in the dataset

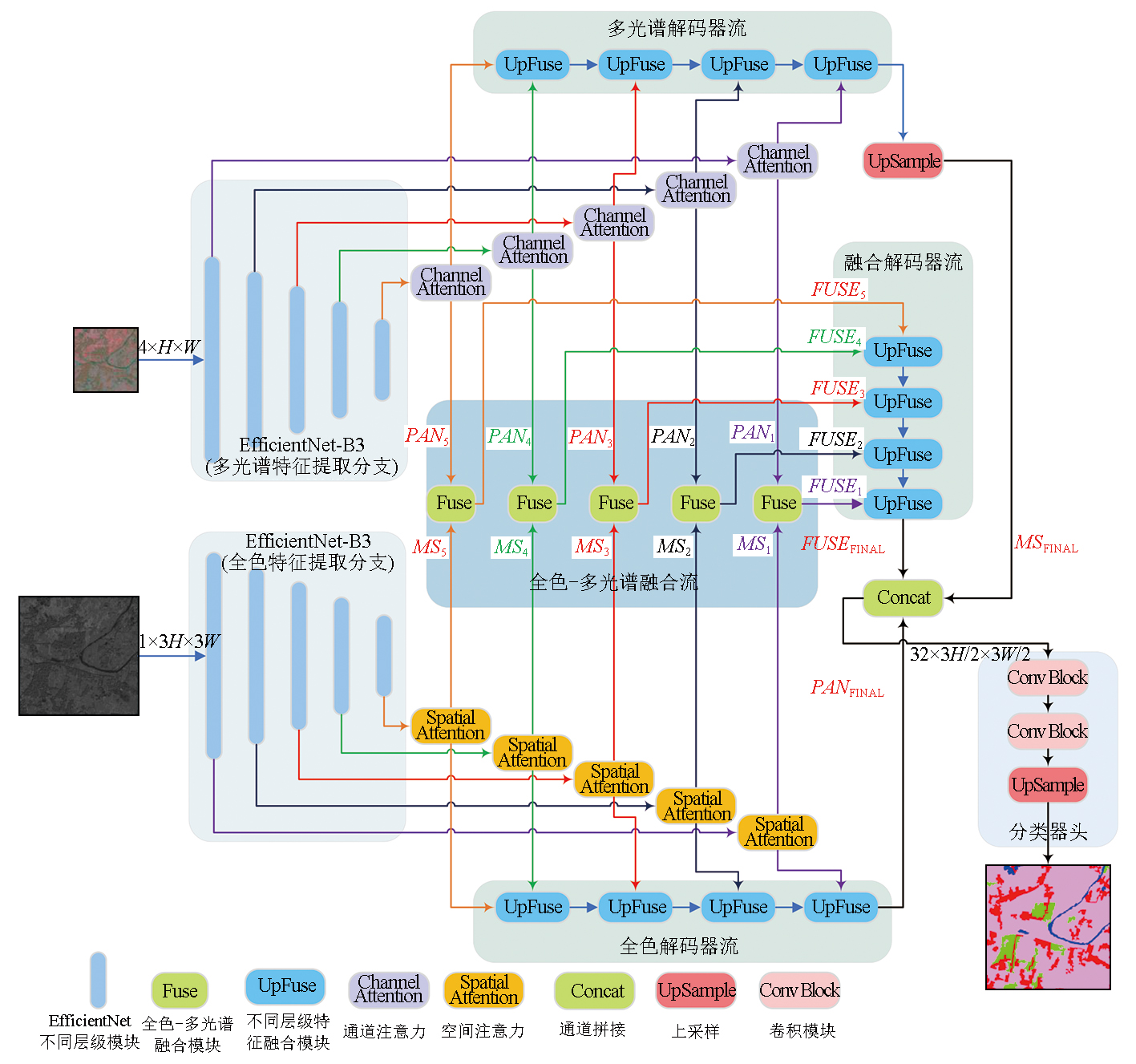

Fig.2  Network structure of DSEUNet

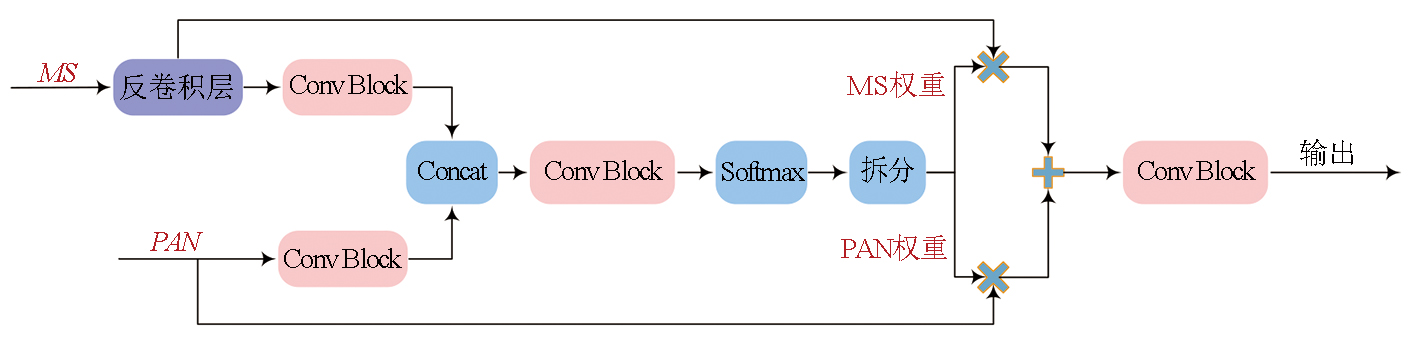

Fig.3  The structure of the fusion module

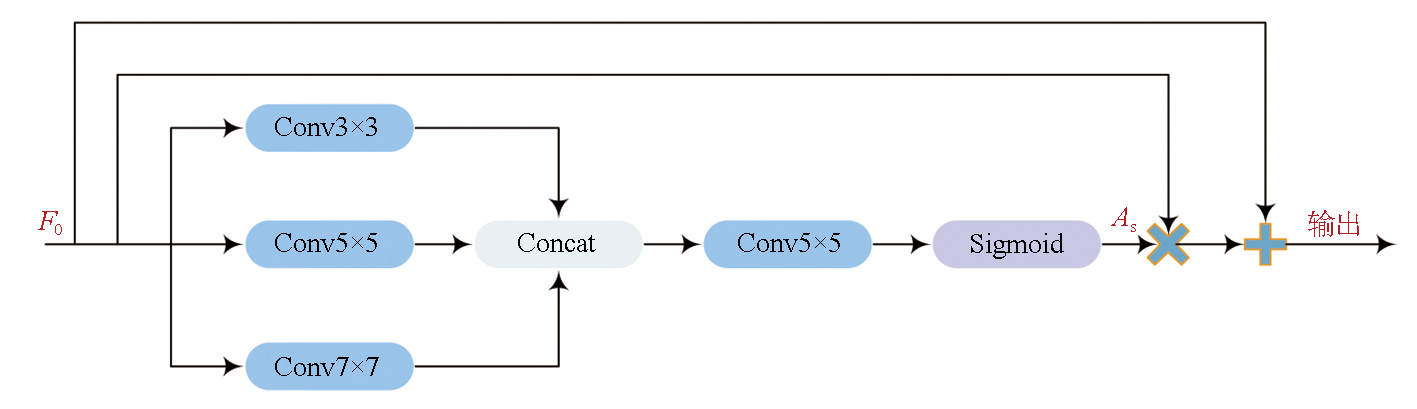

Fig.4  Structure of spatial attention mechanism

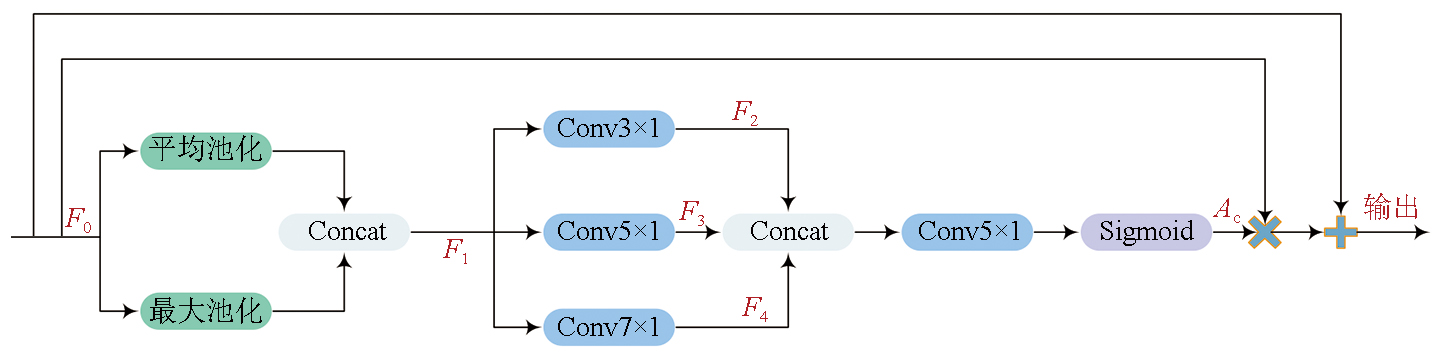

Fig.5  Structure of channel attention mechanism
类别 方法 IoU mIoU OA mFscore Kappa
耕地 植被 人造地表 裸地 水域
经典的语义
分割网络		 Deeplabv3 90.94 44.83 44.93 82.12 88.28 58.52 87.48 80.62 78.16
PspNet 90.77 44.57 46.58 82.55 87.76 58.70 87.57 80.86 78.36
SegNet 91.07 43.73 43.38 83.84 89.16 58.53 87.76 80.43 78.27
HRNet 91.34 45.94 50.74 83.29 88.88 60.03 88.44 82.15 79.72
EfficientUNet 92.10 51.17 55.39 81.93 89.81 61.73 89.59 83.92 81.74
遥感领域的语
义分割网络		 UNetFormer 91.41 46.22 47.61 83.36 88.95 59.59 88.20 81.66 79.33
MACUNet 91.48 45.97 52.95 83.93 88.95 60.55 88.80 82.64 80.38
ABCNet 91.97 49.11 58.34 84.34 88.95 62.12 89.85 84.21 82.07
MANet 92.43 51.62 57.42 85.24 89.72 62.74 90.06 84.74 82.68
MAResUNet 92.03 49.69 57.37 86.62 89.62 62.55 89.96 84.50 82.29
DSEUNet（本文方法） 92.53 52.86 58.33 86.77 89.59 63.35 90.42 85.28 83.23
Tab.1  Classification index of different methods on 10 m land cover dataset （%）

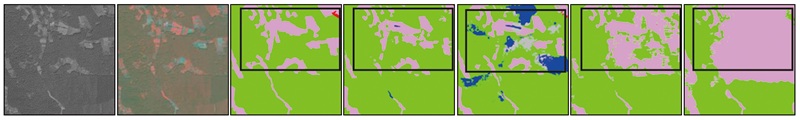

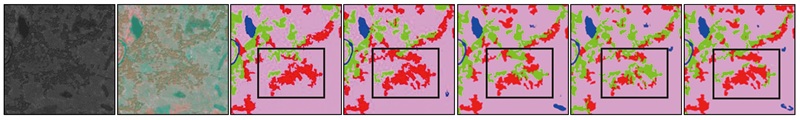

样本编号 PAN影像 MS影像 标签 DSEUNet EfficientUnet MANet MAResUnet
样本1
样本2
样本编号 PAN影像 MS影像 标签 DSEUNet EfficientUnet MANet MAResUnet
样本3
图例

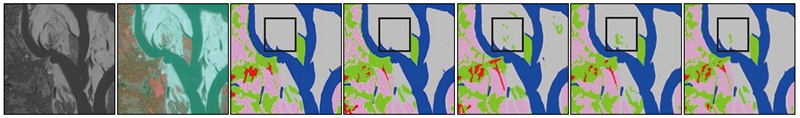

Tab.2  Visualization of results on typical test set images using different methods
方法 GFLOPS 参数量/106 FPS
Deeplabv3 198.16 10.36 12.94
PspNet 181.60 10.33 10.99
SegNet 1 452.12 29.45 8.72
HRNet 166.31 9.64 15.73
EfficientUNet 132.15 14.09 10.29
UNetFormer 11.77 107.40 17.55
MACUNet 268.06 5.15 10.20
ABCNet 144.19 13.67 9.22
MANet 403.75 35.86 10.32
MAResUNet 255.84 26.28 15.67
DSEUNet 105.81 34.67 12.11
Tab.3  Network efficiency indicators of different models
融合方式 mIoU mFscore Kappa
自适应融合 63.35 85.28 83.23
通道拼接 62.61 84.72 82.71
相加 62.57 84.67 82.70
相加相减后通道拼接 62.55 84.61 82.67
Tab.4  Precision indexes using different fusion methods （%）
注意力 mIoU mFscore Kappa
无 62.34 84.34 82.08
KA（只保留通道注意力） 62.52 84.50 82.14
KA（只保留空间注意力） 63.16 85.11 83.05
CBAM 62.74 84.80 82.75
KA 63.35 85.28 83.23
Tab.5  The influence of attention mechanism on the precision index of DSEUNet （%）
样本编号 PAN影像 MS影像 标签 网络对耕地类别的关注度 网络对植被类别的关注度
加入注意力
机制前		 加入注意力
机制后		 加入注意力
机制前		 加入注意力
机制后
样本1
样本2
样本2
图例

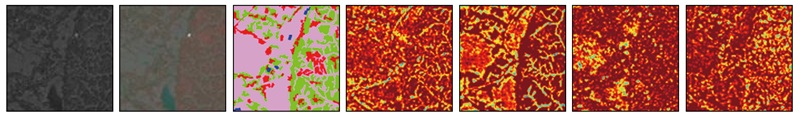

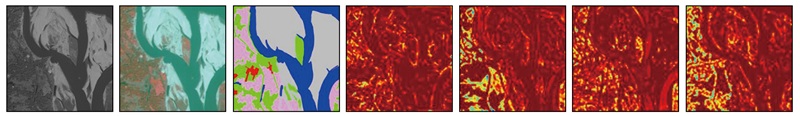

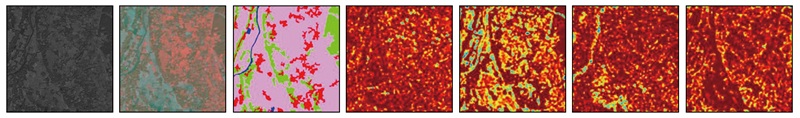

Tab.6  Changes of network attention to different land cover types before and after the addition of KA
