Remote Sensing for Land & Resources    2019, Vol. 31 Issue (1) : 187-194     DOI: 10.6046/gtzyyg.2019.01.25
|
Research on coseismic deformation in Ukraine River Valley of Tianshan Mountains based on InSAR technology
Dong WANG1,2, Fengbing LAI1,2(), Mengyu CHEN3, Shujiang CHEN1,2, Tiecheng HUANG1,2, Xiang JIA1,2
1.College of Geographical Science and Tourism, Xinjiang Normal University, Urumqi 830054,China
2.Urumqi Institute of Spatial Remote Sensing Applications, Urumqi 830025, China
3.School of Foreign Languages, Suzhou University of Science and Technology, Suzhou 215009, China
Download: PDF(3573 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

In this paper, the authors studied the coseismic deformation in Ukraine River valley in Tianshan Mountains, and reconstructed digital elevation modle (DEM) graph of 12.5 m spatial resolution for the study area before and after the earthquake using the ALOS / PALSAR data by InSAR remote sensing technique. Then the authors obtained the remote sensing characteristics of seismic collapse of earthquake by difference method of the DEM after the field verification by RTK calibration. The results show that: ①The area of the collapse of the triangle is 104.47 million m 2, the collapse is 1 416.60 million m 3, the starting elevation is 3 225 m, the average slope is 48°, and slope direction is NNW. ②The trumpet-shaped accumulation body area is 78.61 million m 2, the accumulation is 1 424.27 million m 3, and the buried depth is between 35 m and 80 m. ③The river bed was pushed northward by 100 m, and the eastward advance reached 300 m, due to the accumulation body of the south of the river channel. ④Collapse of the body led to the the formation of quake river. The surface area of the lake increased from 0.039 km 2 to 0.059 km 2 within 30 days and the lake area reached the peak of 0.146 km 2 in 2010. ⑤The factors responsible for the collapse included not only seismic activity but also limestone lithology, terrain slope, fault structure and other comprehensive factors.

Keywords InSAR      coseismic deformation      Tianshan Mountains      remote sensing      dammed lake
:  P316P694
Corresponding Authors: Fengbing LAI     E-mail: laifengbing@163.com
Issue Date: 14 March 2019
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Dong WANG
Fengbing LAI
Mengyu CHEN
Shujiang CHEN
Tiecheng HUANG
Xiang JIA
Cite this article:
Dong WANG,Fengbing LAI,Mengyu CHEN, et al. Research on coseismic deformation in Ukraine River Valley of Tianshan Mountains based on InSAR technology[J]. Remote Sensing for Land & Resources, 2019, 31(1): 187-194.
URL:
https://www.gtzyyg.com/EN/10.6046/gtzyyg.2019.01.25     OR     https://www.gtzyyg.com/EN/Y2019/V31/I1/187

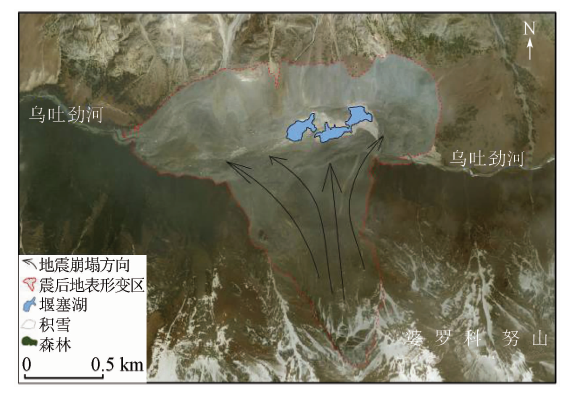

Fig.1  Diagram of the study area
发震时刻 纬度/(°) 经度/(°) 震中距/km 深度/km 里氏震级(ML) 短周期体
波震级(mb)
台站数目 标准偏差
2007/07/03
15∶21∶09.1
44.49 N 83.37 E 38.14 10.0 5.7 5.9 10 2.93
Tab.1  Earthquake table of China earthquake station(northern part of Xinjiang,China)
台站 震中距/(°) 方位角/(°) 震相 到时 到时偏差/s 震级 周期/s 振幅/μm
WMQ 3.2 101.0 Pn 15: 22: 01.0 1.4
WMQ 3.2 101.0 Sg 15: 22: 50.0 1.0
WMQ 3.2 101.0 SMN 5.7 0.5 0.260 00
WMQ 3.2 101.0 SME 5.7 0.5 0.250 00
Tab.2  Earthquake seismic record of China earthquake station(northern part of Xinjiang,China)

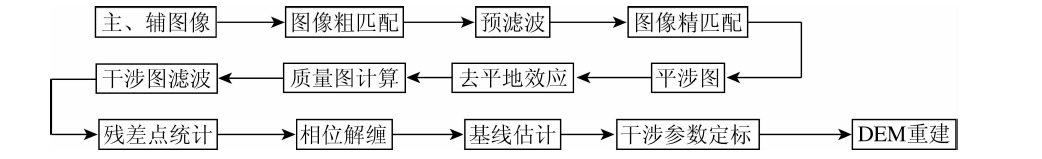

Fig.2  DEM processing flow of InSAR technology

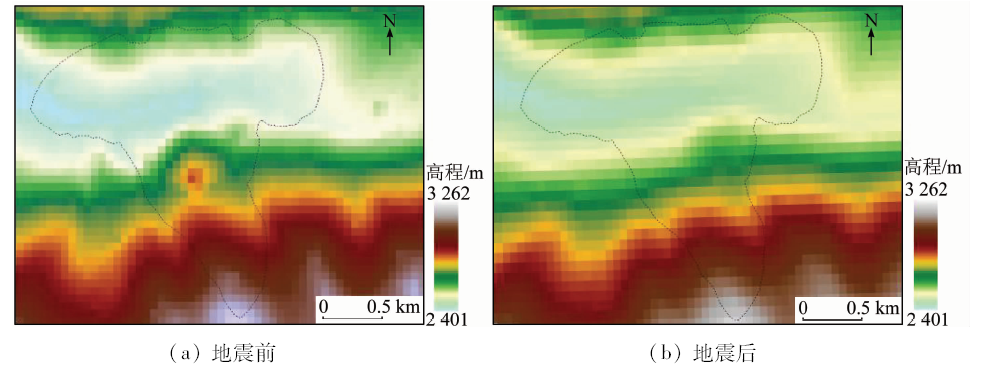

Fig.3  DEM reconstructed by InSAR technology before and after the earthquake case

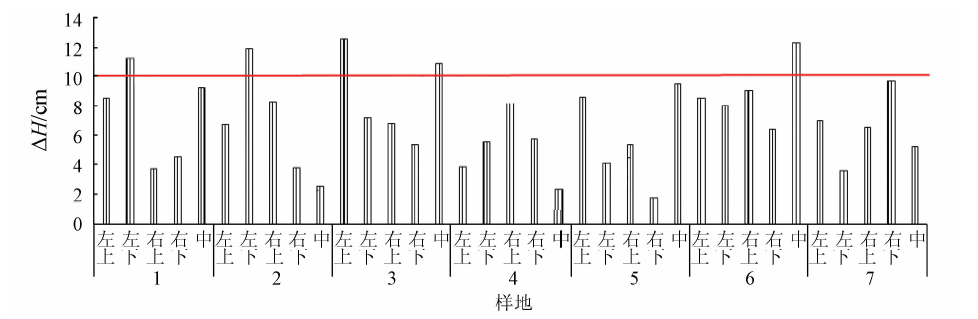

Fig.4  Results of the DEM accuracy check

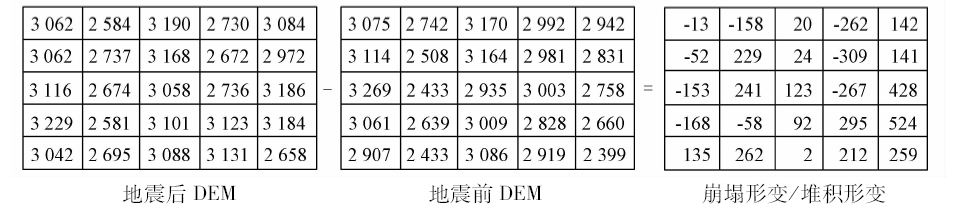

Fig.5  Sketch map of the collapse and accumulation of regional grid
Fig.6  Schematic diagram of the collapse body and the accumulation body

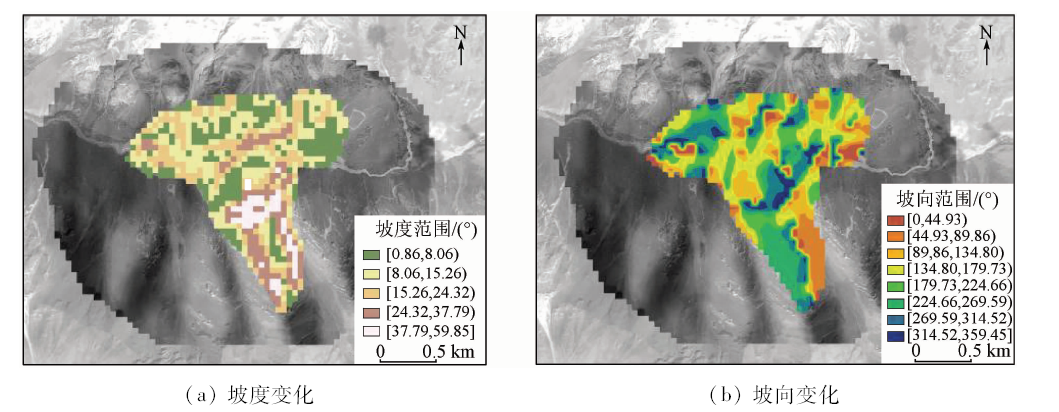

Fig.7  Slope and aspect change after the earthquake case in the study area

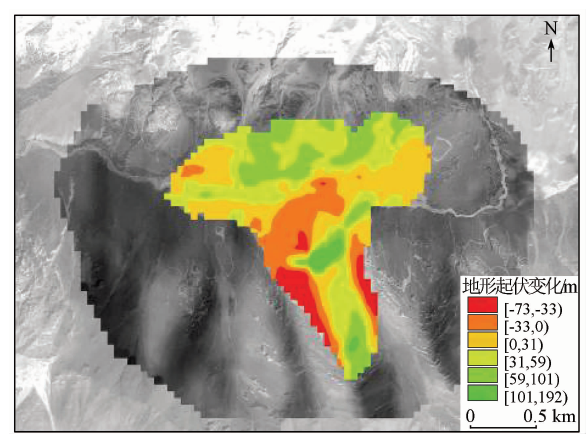

Fig.8  Topographic variation after earthquake case in the study area

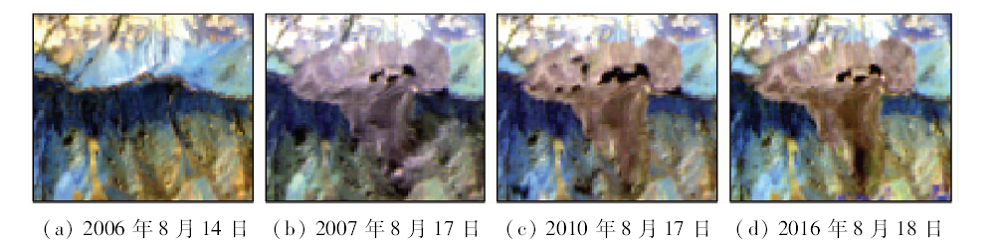

Fig.9  Monitoring the change of Ukraine quake lake between 2006 and 2016 by Landsat satellite
监测时间 湖面面积/m2 湖面高程/m
2006年8月14日 39 000 2 402.904
2007年8月1日 59 000 2 406.829
2007年8月17日 88 900 2 409.031
2007年9月18日 53 000 2 405.716
2008年7月26日 89 400 2 410.874
2009年6月19日 48 400 2 404.441
2010年8月17日 146 000 2 420.724
2011年7月12日 78 400 2 408.927
2013年8月9日 94 300 2 411.030
2014年8月21日 91 050 2 410.951
2015年7月6日 89 400 2 410.706
2016年8月18日 97 200 2 411.125
Tab.3  Change of lake area and elevation in Ukraine between 2006 and 2016
