Remote Sensing for Land & Resources    2020, Vol. 32 Issue (4) : 130-136     DOI: 10.6046/gtzyyg.2019351
A study on water information extraction method of cyanobacteria lake based on Landsat8
WANG Lin(), XIE Hongbo, WEN Guangchao(), YANG Yunhang
Institute of Resources and Environment, Henan Polytechnic University, Jiaozuo 454000, China
Download: PDF(4699 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks

Since the 21st century, the outbreak of cyanobacteria in the Taihu Lake has seriously affected the development and utilization of local water resources. Based on Landsat8 imagery, this paper analyzes the spectral reflection characteristics of non-cyanobacteria water and cyanobacteria water. Cyanobacteria water shows strong reflectance characteristics in the near-infrared band, but the reflectance characteristics in the blue, green, red and shortwave-infrared bands are the same as those in non-cyanobacteria water. On such a basis, a method for extracting cyanobacteria water information, i.e., double infrared band water index (DIBWI), is proposed. On the basis of the Landsat8 imageries of 2014 and 2017 in Taihu Lake area, the comparison and analysis were made with the results of normalized difference water index (NDWI), modified normalized difference water index (MNDWI), new water index (NWI), multi-band water index (MBWI) and water index 2015 (WI2015), and the data of 2013, 2016 and 2018 were used for verification. The results show that DIBWI can extract the cyanobacteria water information, effectively eliminate the influence of cyanobacteria and better inhibit the background features. The overall accuracy is above 98%, and the Kappa coefficient is more than 0.95, which can provide technical support for the protection and reasonable development and utilization of water resources in Taihu Lake area.

Keywords Landsat8      cyanobacteria      water information extraction      DIBWI
:  TP79
Corresponding Authors: WEN Guangchao     E-mail:;
Issue Date: 23 December 2020
E-mail this article
E-mail Alert
Articles by authors
Hongbo XIE
Guangchao WEN
Yunhang YANG
Cite this article:
Lin WANG,Hongbo XIE,Guangchao WEN, et al. A study on water information extraction method of cyanobacteria lake based on Landsat8[J]. Remote Sensing for Land & Resources, 2020, 32(4): 130-136.
URL:     OR
Fig.1  Study area
水体指数 参考文献 公式 理论阈值
NDWI McFeeters[10] (ρB3-ρB5)/(ρB3+ρB5) 0
MNDWI 徐涵秋[11] (ρB3-ρB6)/(ρB3+ρB6) 0
NWI 丁凤[12] [ρB2-(ρB5+ρB6+ρB7)]/[ρB2+(ρB5+ρB6+ρB7)] 0
WI2015 Fisher等[13] 1.720 4+171ρB3+3ρB4-
MBWI Wang等[14] 2ρB3-ρB4-ρB5-ρB6-ρB7 0
Tab.1  Typical water indexes

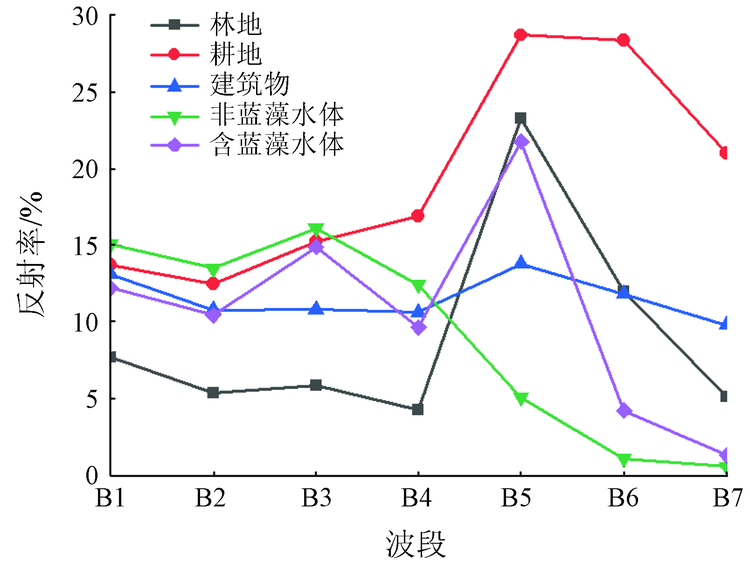

Fig.2  Average reflectance of surface features in Taihu Lake area

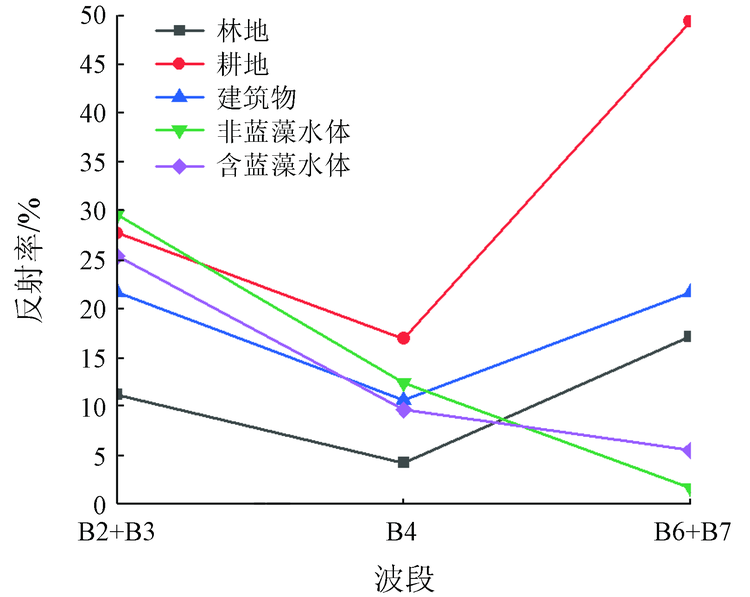

Fig.3  Modified surface feature spectrum

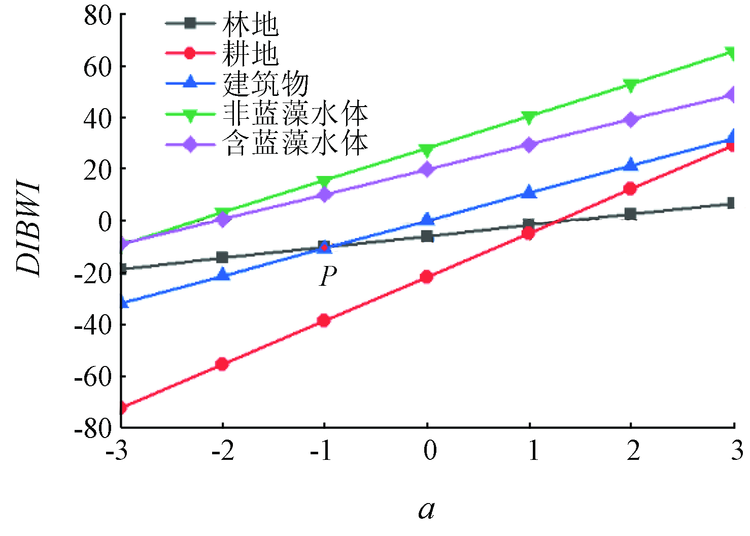

Fig.4  Water index values of various features under different coefficients a

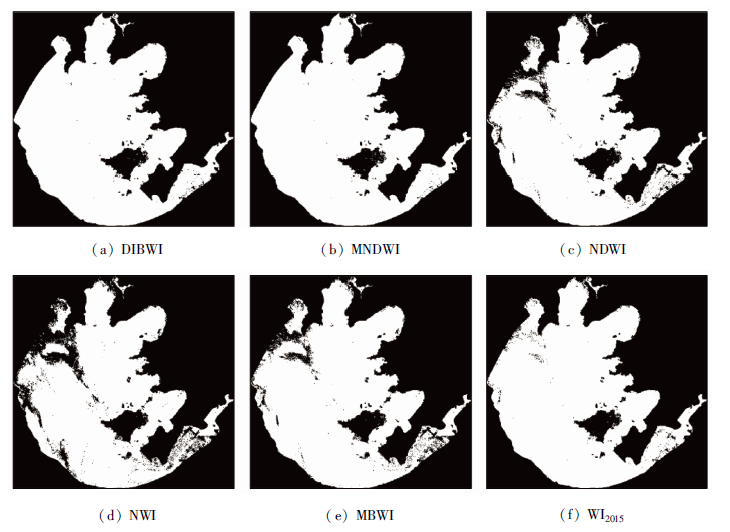

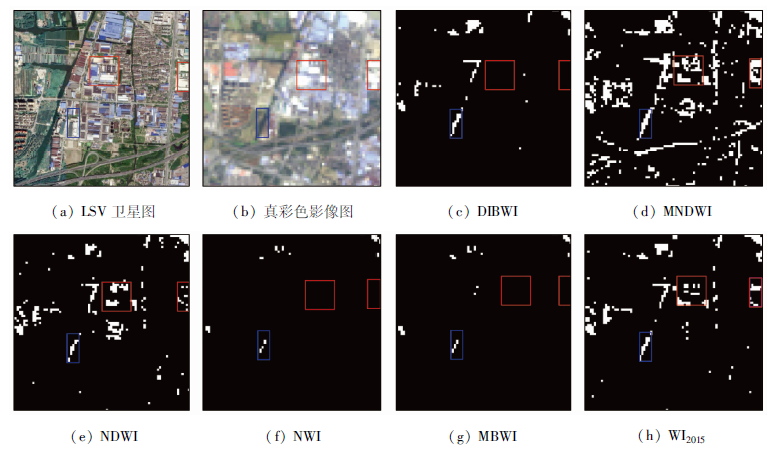

Fig.5  Water extraction results based on different methods on October 26,2014
Fig.6  Water extraction results based on different methods on May 27,2017
Fig.7  Consistency test of extraction results based on different methods
时相 指数 总体精
20141026 DIBWI 98.83 0.976 6 0.58 0
MNDWI 95.17 0.903 4 8.79 0
NDWI 73.12 0.462 4 10.72 47.44
NWI 73.58 0.471 7 1.24 52.56
MBWI 76.25 0.525 1 1.04 46.94
WI2015 89.55 0.791 0 6.17 15.33
20170527 DIBWI 99.37 0.985 4 0.25 0
MNDWI 95.52 0.892 6 6.17 0
NDWI 83.32 0.645 0 5.81 19.50
NWI 58.45 0.289 1 0.92 60.83
MBWI 85.43 0.700 1 0.25 21.17
WI2015 94.05 0.862 4 4.70 3.98
Tab.2  Accuracy evaluation results
时相 指数 总体精度/% Kappa系数
20131210 DIBWI 98.52 0.970 5
MNDWI 92.21 0.844 2
20160621 DIBWI 98.38 0.967 6
MNDWI 95.12 0.902 4
20180428 DIBWI 98.06 0.960 5
MNDWI 95.60 0.909 9
Tab.3  Validation
[1] 李世杰. 关于湖泊(水库)环境演变与地球化学研究的几点建议[J]. 矿物岩石地球化学通报, 2016,35(4):2.
[1] Li S J. Suggestions on the environmental evolution and geochemical research of lakes (reservoirs)[J]. Bulletin of Mineralogy,Petrology and Geochemistry, 2016,35(4):2.
[2] Liu J, Yang W. Water sustainability for China and beyond[J]. Science, 2012,337(6095):649-650.
doi: 10.1126/science.1219471 url:
[3] Feng M, Sexton J O, Channan S, et al. A global,high-resolution (30-m) inland water body dataset for 2000:First results of a topo-graphic-spectral classification algorithm[J]. International Journal of Digital Earth, 2015:1-21.
[4] 封红娥, 李家国, 朱云芳, 等. GF-1与Landsat8水体叶绿素a浓度协同反演——以太湖为例[J]. 国土资源遥感, 2019,31(4):182-189.doi: 10.6046/gtzyyg.2019.04.24.
[4] Feng H E, Li J G, Zhu Y F, et al. Synergistic inversion method of chlorophyll a concentration in GF-1 and Landsat8 imagery:A case study of the Taihu Lake[J]. Remote Sensing for Land and Resoures, 2019,31(4):182-189.doi: 10.6046/gtzyyg.2019.04.24.
[5] 朱喜. 太湖蓝藻大爆发的警示和启发[J]. 上海企业, 2007(7):7-9,13.
[5] Zhu X. Warning and inspiration of cyanobacteria bloom in Taihu Lake[J]. Shanghai Enterprise, 2007(7):7-9,13.
[6] 朱喜, 朱云. 太湖蓝藻暴发治理存在的问题与治理思路[J]. 环境工程技术学报, 2019,9(6):714-719.
[6] Zhu X, Zhu Y. Problems and countermeasures of controlling cyanobacteria bloom in Taihu Lake[J]. Journal of Environmental Engineering Technology, 2019,9(6):714-719.
[7] 张毅, 陈成忠, 吴桂平, 等. 遥感影像空间分辨率变化对湖泊水体提取精度的影响[J]. 湖泊科学, 2015,27(2):335-342.
[7] Zhang Y, Chen C Z, Wu G P, et al. Effects of spatial scale on water surface delineation with satellite images[J]. Journal of Lake Sciences, 2015,27(2):335-342.
[8] 孙佩, 汪权方, 张梦茹, 等. 基于NDVI-MNDWI特征空间的水体信息增强方法研究[J]. 湖北大学学报(自然科学版), 2018,40(6):574-579.
[8] Sun P, Wang Q F, Zhang M R, et al. A method to enhance information of water cover based on feature space of NDVI and MNDWI[J]. Journal of Hubei University(Natural Science), 2018,40(6):574-579.
[9] Ashraf M, Nawaz R. A comparison of change detection analyses using different band algebras for baraila wetland with NASA’s multi-temporal Landsat dataset[J]. Journal of Geographic InformationSystem, 2015,7(1):1-19.
[10] McFeeters S K. The use of the normalized difference water index(NDWI) in the delineation of open water feature[J]. International Journal of Remote Sensing, 1996,17(7):1425-1432.
[11] 徐涵秋. 利用改进的归一化差异水体指数(MNDWI)提取水体信息的研究[J]. 遥感学报, 2005,9(5):589-595.
[11] Xu H Q. A study on information extraction of water body with the modified normalized difference water index(MNDWI)[J]. Journal of Remote Sensing, 2005,9(5):589-595.
[12] 丁凤. 基于新型水体指数(NWI)进行水体信息提取的实验研究[J]. 测绘科学, 2009,34(4):155-157.
[12] Ding F. Study on information extraction of water body with a new water index(NWI)[J]. Science of Surveying and Mapping, 2009,34(4):155-157.
[13] Fisher A, Flood N, Danaher T. Comparing Landsat water index methods for automated water classification in eastern Australia[J]. Remote Sensing of Environment, 2016,175:167-182.
[14] Wang X B, Xie S P, Zhang X L, et al. A robust multi-band water index (MBWI) for automated extraction of surface water from Landsat8 OLI imagery[J]. International Journal of Applied Earth Observation and Geoinformation, 2018,68:73-91.
[15] 水利部太湖流域管理局. 2017年太湖健康状况报告[R]. 上海:水利部太湖流域管理局, 2017.
[15] Water Resources Department of the Taihu Basin. Health report of Taihu Lake in 2017[R]. Shanghai:Water Resources Department of the Taihu Basin, 2017.
[16] 赵英时. 遥感应用分析原理与方法[M]. 北京: 科学出版社, 2003.
[16] Zhao Y S. Principles and methods of remote sensing application analysis[M]. Beijing: Science Press, 2003.
[17] 陈瑞弘. 太湖流域水质污染与水质变化的空间分析[J]. 环境与发展, 2018,30(5):54,56.
[17] Chen R H. Taihu Lake basin water quality contamination water quality electromyographic space analysis[J]. Environment and Development, 2018,30(5):54,56.
[18] 周冠华, 柳钦火, 马荣华, 等. 基于半分析模型的波段最优化组合反演混浊太湖水体叶绿素a[J]. 湖泊科学, 2008(2):17-23.
[18] Zhou G H, Liu Q H, Ma R H, et al, Inversion of chlorophyll-a concentration in turbid water of lake Taihu based on optimized multi-spectral combination[J]. Journal of Lake Sciences, 2008(2):17-23.
[19] Li W B, Du Z Q, Ling F, et al. A comparison of land surface water mapping using the normalized difference water index from TM,ETM+ and ALI[J]. Remote Sensing, 2013,5(11):5530-5549.
