自然资源遥感  2024, Vol. 36 Issue (1): 86-94    DOI: 10.6046/zrzyyg.2022489
  技术方法 本期目录 | 过刊浏览 | 高级检索 |
协同Sentinel-1/2多特征优选的甘蔗提取方法
卢献健(), 张焕铃, 晏红波(), 黎振宝, 郭子扬
桂林理工大学测绘地理信息学院,桂林 541006
A method for sugarcane information extraction based on multi-feature optimal selection of Sentinel-1/2 image data
LU Xianjian(), ZHANG Huanling, YAN Hongbo(), LI Zhenbao, GUO Ziyang
College of Geomatics and Geoinformation, Guilin University of Technology, Guilin 541006, China
全文: PDF(12067 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

协同多源遥感影像、融合多特征参数是目标地物精确识别的有效方法,但过多的特征参数会造成数据冗余,降低分类精度。该文以岩溶地貌甘蔗种植区为例,使用Sentinel-1,Sentinel-2影像数据以及SRTM数字高程数据提取研究区地物的光谱特征、指数特征、纹理特征、地形特征和极化特征,其中,指数特征考虑了众多遥感传感器少有的红边波段计算的红边指数,纹理特征加入了雷达影像纹理。在实验中设计了6种方案探讨不同影像特征以及基于随机森林优选的最佳特征组合对甘蔗提取的影响。结果表明: 在光谱特征叠加不同特征类型对研究区地物进行分类的情况下,不同特征类型重要性排序为光谱特征>指数特征>纹理特征>地形特征>极化特征; 6种方案中基于随机森林算法构建的优选特征方案融合了不同特征变量,其甘蔗提取效果最佳,用户精度和生产者精度都高于97%,总体精度为95.49%,Kappa系数为0.94。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
卢献健
张焕铃
晏红波
黎振宝
郭子扬
关键词 多源遥感精准识别随机森林特征优选红边波段极化特征
Abstract

The integration of multi-source remote sensing images and multi-feature parameters is effective in the accurate identification of target ground objects. However, excess feature parameters can cause data redundancy, reducing classification accuracy. Focusing on a sugarcane planting area with Karst landforms, this study extracted the spectral, index, texture, topographic, and polarization features of the ground objects in the study area from Sentinel-1/2 images and SRTM digital elevation data. The index features involved the red edge index calculated based on the red-edge band, which was scarce in data derived from remote sensing sensors, and the texture features included the Radar image textures. In the experiment, six schemes were designed to explore the effects of different image features and the random forest-based optimal feature association on sugarcane information extraction. The results show that for the classification of ground objects in the study area using spectral features combined with other feature types, the importance of the feature types ranked in descending order of spectral features, index features, texture features, topographic features, and polarization features. Among the six schemes, the scheme based on the random forest algorithm, integrating different feature variables, yielded the optimal information extraction effect for sugarcane, with both user and producer accuracy higher than 97%, overall accuracy of 95.49%, and a Kappa coefficient of 0.94.

Key wordsmulti-source remote sensing    accurate identification    random forest    optimal feature selection    red-edge band    polarization feature
收稿日期: 2022-12-26      出版日期: 2024-03-13
ZTFLH:  TP79
基金资助:广西自然科学基金项目“基于高分影像的喀斯特地区土壤水分反演关键问题研究”(2022GXNSFBA035639);国家自然科学基金项目“地基和星载GNSS-R融合的花岗岩滑坡高时空分辨率土壤湿度反演研究”(42064003);广西空间信息与测绘重点实验室开放基金项目“广西地区农业干旱遥感监测及预警方法研究”(桂科能19-050-11-23)
通讯作者: 晏红波(1983-),女,博士,教授,研究方向为遥感数据智能处理及地表参数变化监测。Email: 2009019@glut.edu.cn
作者简介: 卢献健(1982-),男,硕士,副教授,研究方向为遥感影像智能处理与应用。Email: 285922956@qq.com
引用本文:
卢献健, 张焕铃, 晏红波, 黎振宝, 郭子扬. 协同Sentinel-1/2多特征优选的甘蔗提取方法[J]. 自然资源遥感, 2024, 36(1): 86-94.
LU Xianjian, ZHANG Huanling, YAN Hongbo, LI Zhenbao, GUO Ziyang. A method for sugarcane information extraction based on multi-feature optimal selection of Sentinel-1/2 image data. Remote Sensing for Natural Resources, 2024, 36(1): 86-94.
链接本文:
https://www.gtzyyg.com/CN/10.6046/zrzyyg.2022489      或      https://www.gtzyyg.com/CN/Y2024/V36/I1/86
Fig.1  研究区地理位置图
地物
类别
建设
用地
林地 水域 甘蔗 水稻 香蕉 裸地
数量 576 762 513 1 012 218 236 242
Tab.1  Sample data statistics (个)

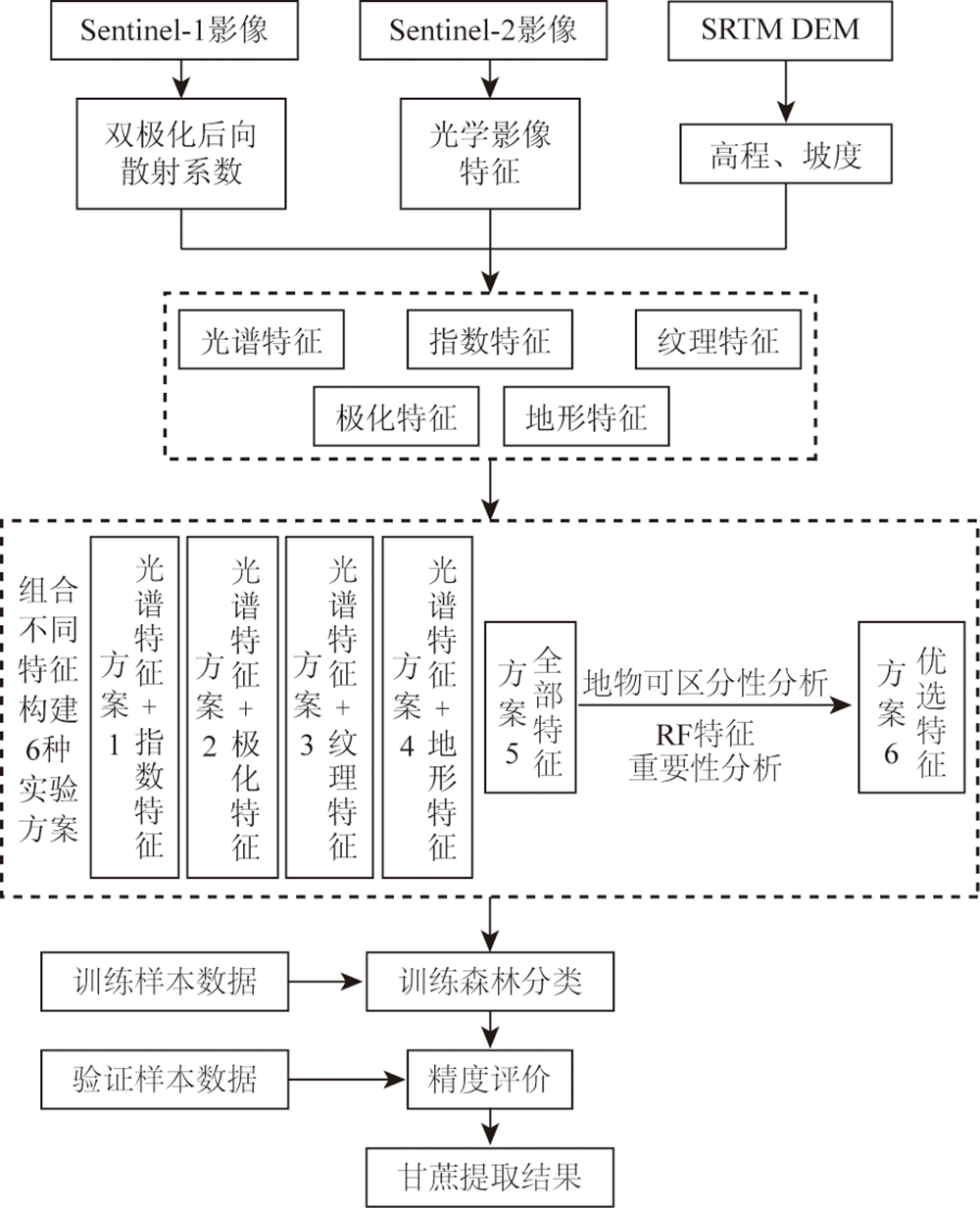

Fig.2  技术流程图
特征
类型
变量名称 变量符号 变量描述/公式
光谱
特征
波段 B2,B3,B4,B5,B6,B7,B8,B8A,B11,B12 蓝、绿、红、红边、近红外、短波红外
指数
特征
归一化植被指数 NDVI (B8-B4)/(B8+B4)
增强植被指数 EVI 2.5(B8A-B4)/(B8A+6B4-
7.5B2+1)
归一化水体指数 NDWI (B3-B8)/(B3+B8)
叶绿素指数—红边 CIre B7/B5-1
归一化差异红色边缘指数 NDre1
NDre2
(B6-B5)/(B6+B5)
(B7-B5)/(B7+B5)
红边归一化差值植被指数 NDVIre1
NDVIre2
NDVIre3
(B8A-B5)/(B8A+B5)
(B8A-B6)/(B8A+B6)
(B8A-B7)/(B8A+B7)
纹理
特征
二阶矩 B8_asm,VV_asm,VH_asm
对比度 B8_cont,VV_cont,VH_cont
相关性 B8_corr,VV_corr,VH_corr
方差 B8_var,VV_var,VH_var
逆差距 B8_idm,VV_idm,VH_idm
B8_ent,VV_ent,VH_ent
极化
特征
VV极化后向散射系数 δ V V
VH极化后向散射系数 δ V H
地形
特征
高程 DEM
坡度 Slope
Tab.2  特征变量

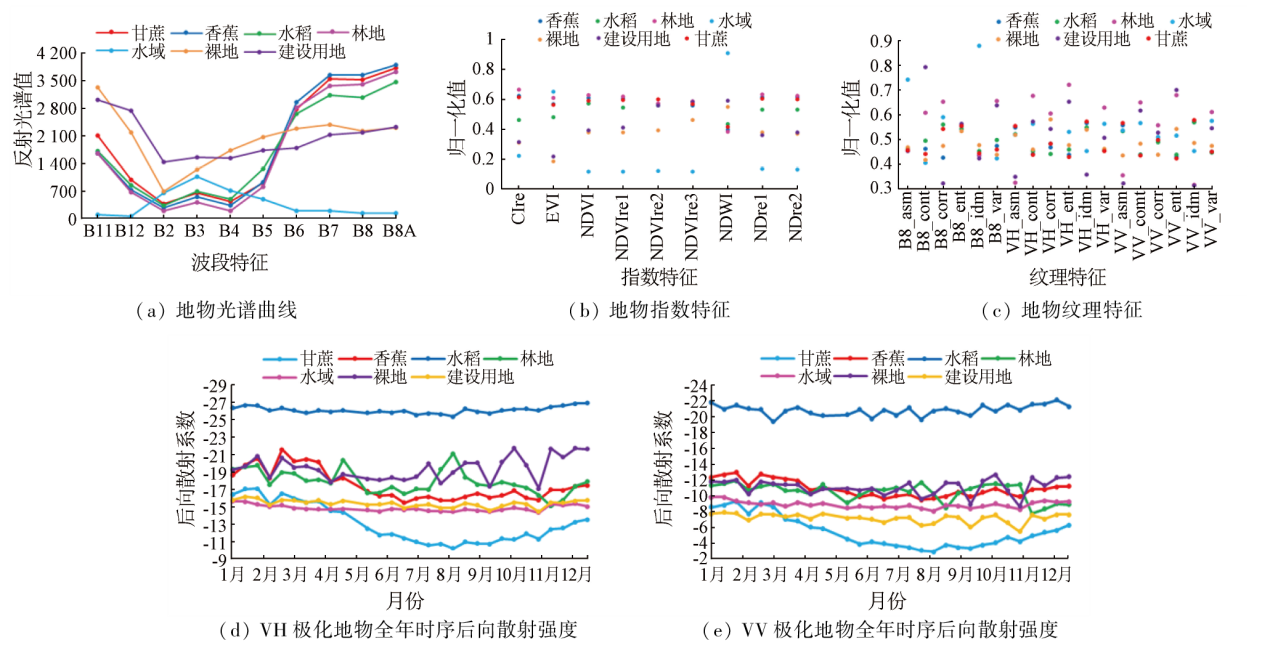

Fig.3  不同影像特征地物可区分性

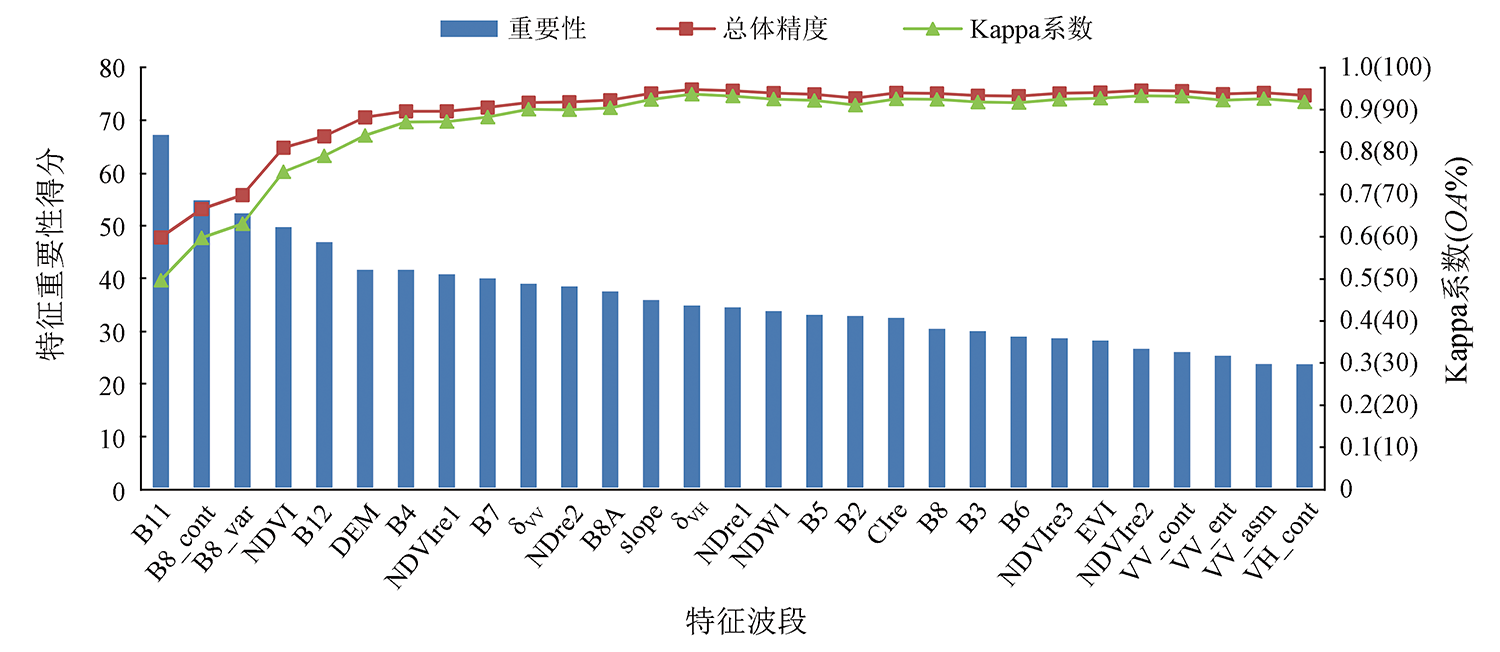

Fig.4  特征波段重要性
Fig.5  不同方案甘蔗提取图
地物类型 方案1 方案2 方案3 方案4 方案5 方案6
UA/% PA/% UA/% PA/% UA/% PA/% UA/% PA/% UA/% PA/% UA/% PA/%
香蕉 86.36 80.28 96.96 82.05 93.24 76.66 92.98 79.10 94.52 88.46 94.44 98.55
水稻 98.38 88.40 98.55 94.44 97.22 94.59 98.24 93.33 98.11 91.22 100.00 96.15
甘蔗 90.15 93.42 90.54 95.80 91.45 97.96 91.88 96.94 94.75 97.15 97.59 98.61
裸地 86.11 93.93 95.77 94.44 97.05 91.66 96.47 88.17 93.75 93.75 92.50 97.36
林地 83.91 82.47 80.45 86.34 85.65 88.64 86.84 89.59 88.28 88.97 92.48 89.95
水体 97.88 99.28 98.63 97.29 98.61 97.26 98.70 98.06 100.00 97.93 100.00 97.45
建设用地 88.41 86.82 93.82 85.87 92.90 90.00 90.37 88.94 92.46 93.40 91.71 93.25
OA/% 89.53 91.33 92.21 92.27 93.61 95.49
Kappa 0.87 0.89 0.90 0.90 0.92 0.94
Tab.3  甘蔗种植区地物分类精度统计
地物
类型
香蕉 水稻 甘蔗 裸地 林地 水体 建设
用地
香蕉 76 1 2 0 4 0 1
水稻 0 55 2 0 0 0 1
甘蔗 0 0 286 0 4 0 0
裸地 0 0 0 70 0 0 4
林地 1 0 17 2 210 0 9
水体 0 0 0 0 2 173 1
建设
用地
0 0 0 3 9 0 158
Tab.4  方案6混淆矩阵
Fig.6  方案6甘蔗提取局部图
[1] 李明, 田洪春, 黄智刚. 我国甘蔗产业发展现状研究[J]. 中国糖料, 2017, 39(1):67-70.
Li M, Tian H C, Huang Z G. Research on the development status of sugarcane industry in China[J]. Sugar Crops of China, 2017, 39(1):67-70.
[2] 谢鑫昌, 杨云川, 田忆, 等. 基于遥感的广西甘蔗种植面积提取及长势监测[J]. 中国生态农业学报(中英文), 2021, 29(2):410-422.
Xie X C, Yang Y C, Tian Y, et al. Sugarcane planting area and growth monitoring based on remote sensing in Guangxi[J]. Chinese Journal of Eco-Agriculture, 2021, 29(2):410-422.
[3] 覃泽林, 谢国雪, 李宇翔, 等. 多时相高分一号影像在丘陵地区大宗农作物提取中的应用[J]. 南方农业学报, 2017, 48(1):181-188.
Qin Z L, Xie G X, Li Y X, et al. Application of multi-temporal GF-1 image in extraction of staple crops in hilly region[J]. Journal of Southern Agriculture, 2017, 48(1):181-188.
[4] 杨迎港, 刘培, 张合兵, 等. 基于特征优选随机森林算法的GF-2影像分类[J]. 航天返回与遥感, 2022, 43(2):115-126.
Yang Y G, Liu P, Zhang H B, et al. Research on GF-2 image classification based on feature optimization random forest algorithm[J]. Spacecraft Recovery and Remote Sensing, 2022, 43(2):115-126.
[5] 于飞, 吕争, 隋正伟, 等. 基于特征优选的多时相SAR数据水稻信息提取方法[J]. 农业机械学报, 2023, 54(3):259-265,327.
Yu F, Lyu Z, Sui Z W, et al. Extraction of rice information using multi-temporal SAR data based on feature optimization[J]. Transactions of the Chinese Society for Agricultural Machinery, 2023, 54(3):259-265,327.
[6] 袁星. 基于时间序列Sentinel数据的崇左市甘蔗识别研究[D]. 西安: 西安科技大学, 2019.
Yuan X. Monitoring of sugarcane based on time series of Sentinel data:A case study of Chongzuo,Guangxi[D]. Xi’an: Xi’an University of Science and Technology, 2019.
[7] 王久玲, 黄进良, 王立辉, 等. 面向对象的多时相HJ星影像甘蔗识别方法[J]. 农业工程学报, 2014, 30(11):145-151.
Wang J L, Huang J L, Wang L H, et al. Identification of sugarcane based on object-oriented analysis using time-series HJ CCD data[J]. Transactions of the Chinese Society of Agricultural Engineering, 2014, 30(11):145-151.
[8] Virnodkar S, Pachghare V K, Patil V C, et al. Performance evaluation of RF and SVM for sugarcane classification using Sentinel-2 NDVI time-series[C]//Ponigrahi CR,Pati B,Mohapatra P,et al.Progress in Advanced Computing and Intelligent Engineering.Singapore:Springer,2021:163-174
[9] 王镕, 赵红莉, 蒋云钟, 等. 月尺度农作物提取中GF-1 WFV纹理特征的应用及分析[J]. 自然资源遥感, 2021, 33(3):72-79.doi:10.6046/zrzyyg.2020334.
Wang R, Zhao H L, Jiang Y Z, et al. Application and analyses of texture features based on GF-1 WFV images in monthly information extraction of crops[J]. Remote Sensing for Natural Resources, 2021, 33(3):72-79.doi:10.6046/zrzyyg.2020334.
[10] 向海燕, 罗红霞, 刘光鹏, 等. 基于Sentinel-1A极化SAR数据与面向对象方法的山区地表覆被分类[J]. 自然资源学报, 2017, 32(12):2136-2148.
doi: 10.11849/zrzyxb.20161306
Xiang H Y, Luo H X, Liu G P, et al. Land cover classification in mountain areas based on Sentinel-1A polarimetric SAR data and object oriented method[J]. Journal of Natural Resources, 2017, 32(12):2136-2148.
[11] 张梦茹, 冯志立. 特征优选下的GF-6影像土地利用分类方法研究[J]. 河南科技, 2022, 41(11):106-110.
Zhang M R, Feng Z L. Research on GF-6 image land use classification method under feature optimization[J]. Henan Science and Technology, 2022, 41(11):106-110.
[12] 查东平, 蔡海生, 张学玲, 等. 基于多时相Sentinel-1水稻种植范围提取[J]. 自然资源遥感, 2022, 34(3):184-195.doi:10.6046/zrzyyg.2021320.
Zha D P, Cai H S, Zhang X L, et al. Extraction of paddy fields using multi-temporal Sentinel-1 images[J]. Remote Sensing for Natural Resources, 2022, 34(3): 184-195.doi:10.6046/zrzyyg.2021320.
[13] 王德军, 姜琦刚, 李远华, 等. 基于Sentinel-2A/B时序数据与随机森林算法的农耕区土地利用分类[J]. 国土资源遥感, 2020, 32(4):236-243.doi:10.6046/gtzyyg.2020.04.29.
Wang D J, Jiang Q G, Li Y H, et al. Land use classification of farming areas based on time series Sentinel-2A/B data and random forest algorithm[J]. Remote Sensing for Land and Resources, 2020, 32(4):236-243.doi:10.6046/gtzyyg.2020.04.29.
[14] 覃泽林, 谢国雪, 李宇翔, 等. 多时相高分一号影像在丘陵地区大宗农作物提取中的应用[J]. 南方农业学报, 2017, 48(1):181-188.
Qin Z L, Li G X, Xie Y X, et al. Application of multi-temporal GF-1 image in extraction of staple crops in hilly region[J]. Journal of Southern Agriculture, 2017, 48(1):181-188.
[15] 王小燕, 吕争, 原征, 等. 光学遥感卫星红边波段应用综述[J]. 卫星应用, 2023(2):48-53.
Wang X Y, Lyu Z, Yuan Z, et al. Review on the application of red edge band optical remote sensing satellite red edge band[J]. Satellite Application, 2023(2):48-53.
[16] 赵诣, 蒋弥. 极化SAR参数优化与光学波谱相结合的面向对象土地覆盖分类[J]. 测绘学报, 2019, 48(5):609-617.
doi: 10.11947/j.AGCS.2019.20170746
Zhao Y, Jiang M. Integration of SAR polarimetric parameters and multi-spectral data for object based land cover classification[J]. Acta Geodaetica et Cartographica Sinica, 2019, 48(5):609-617.
[17] 郭交, 朱琳, 靳标. 基于Sentinel-1和Sentinel-2数据融合的农作物分类[J]. 农业机械学报, 2018, 49(4):192-198.
Guo J, Zhu L, Jin B. Crop classification based on data fusion of Sentinel-1 and Sentinel-2[J]. Transactions of the Chinese Society for Agricultural Machinery, 2018, 49(4):192-198.
[18] 张昊, 高小红, 史飞飞, 等. 基于Sentinel-2 MSI与Sentinel-1 SAR相结合的黄土高原西部撂荒地提取——以青海民和县为例[J]. 自然资源遥感, 2022, 34(4):144-154.doi:10.6046/zrzyyg.2021385.
Zhang H, Gao X H, Shi F F, et al. Sentinel-2 MSI and Sentinel-1 SAR based information extraction of abandoned land in the western Loess Plateau:A case study of Minhe County in Qinghai[J]. Remote Sensing for Natural Resources, 2022, 34(4):144-154.doi:10.6046/zrzyyg.2021385.
[19] 刘春亭, 冯权泷, 金鼎坚, 等. 随机森林协同Sentinel-1/2的东营市不透水层信息提取[J]. 自然资源遥感, 2021, 33(3):253-261.doi:10.6046/zrzyyg.2020310
Liu C T, Feng Q L, Jin D J, et al. Application of random forest and Sentinel-1/2 in the information extraction of impervious layers in Dongying City[J]. Remote Sensing for Natural Resources, 2021, 33(3):253-261.doi:10.6046/zrzyyg.2020310
[20] Wang Y Y, Fang S H, Zhao L L, et al. Parcel-based summer maize mapping and phenology estimation combined using Sentinel-2 and time series Sentinel-1 data[J]. International Journal of Applied Earth Observation and Geoinformation, 2022, 108:102720.
doi: 10.1016/j.jag.2022.102720
[21] 王利花, 金辉虎, 王晨丞, 等. 基于合成孔径雷达的农作物后向散射特性及纹理信息分析——以吉林省农安县为例[J]. 中国生态农业学报(中英文), 2019, 27(9):1385-1393.
Wang L H, Jin H H, Wang C C, et al. Backscattering characteristics and texture information analysis of typical crops based on synthetic aperture Radar:A case study of Nong’an County,Jilin Province[J]. Chinese Journal of Eco-Agriculture, 2019, 27(9):1385-1393.
[22] 翟鹏飞, 李世华, 胡月明. 协同光学与雷达遥感数据的面向对象土地覆盖变化检测[J]. 农业工程学报, 2021, 37(23):216-224.
Zhai P F, Li S H, Hu Y M. Object-oriented land cover change detection combining optical and Radar remote sensing data[J]. Transactions of the Chinese Society of Agricultural Engineering, 2021, 37(23):216-224.
[23] Breiman L. Random forests[J]Machine Learning. 2001, 45(1):5-32.
doi: 10.1023/A:1010933404324
[24] 李恒凯, 王利娟, 肖松松. 基于多源数据的南方丘陵山地土地利用随机森林分类[J]. 农业工程学报, 2021, 37(7):244-251.
Li H K, Wang L J, Xiao S S. Random forest classification of land use in hilly and mountaineous areas of Southern China using multi-source remote sensing data[J]. Transactions of the Chinese Society of Agricultural Engineering, 2021, 37(7):244-251.
[25] 张磊, 宫兆宁, 王启为, 等. Sentinel-2影像多特征优选的黄河三角洲湿地信息提取[J]. 遥感学报, 2019, 23(2):313-326.
Zhang L, Gong Z N, Wang Q W, et al. Wetland mapping of Yellow River Delta wetlands based on multi-feature optimization of Sentinel-2 images[J]. Journal of Remote Sensing, 2019, 23(2):313-326.
[26] Stehman S V. Selecting and interpreting measures of thematic classification accuracy[J]. Remote Sensing of Environment, 1997, 62(1):77-89.
doi: 10.1016/S0034-4257(97)00083-7
