The construction and verification of a water index in the complex environment based on GF-2 images
WANG Chunxia1(), ZHANG Jun1(), LI Yixu2, PHOUMILAY1
1. College of Mining, Guizhou University, Guiyang 550000, China
2. College of Agriculture, Guizhou University, Guiyang 550000, China
Download: PDF(6866 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

The high spatial resolution of GF-2 images helps to obtain more accurate water distribution information. This study constructed a water index based on GF-2 images and verified it, aiming to solve the problem that the salt and pepper noise is prone to occur when the existing water indices are used to extract information on water bodies in complex environments from high-resolution remote sensing images. Firstly, this study established a comprehensive water index (CWI) by analyzing the spectral information of surface coverings and verified its precision. Secondly, information on water bodies was extracted through image segmentation combined with the CWI, and the extraction precision was verified. Then, to fully utilize the spectral information and the advantages of a classifier, the spectral information on the segmented homogeneous objects and the CWI were combined as the input data of the classifier to extract information on water bodies and verify the extraction precision. Finally, this study verified the applicability of the CWI in both WorldView-2 and GF-1 images. The results are as follows. ① The newly constructed CWI can effectively suppress the impacts of surface coverings, such as shadow, buildings, roads, vegetation, and bare soil, thus significantly improving the extraction precision. ② Extracting information on water bodies through image segmentation combined with the CWI can effectively inhibit the occurrence of the pepper and salt noise. ③ A classifier combined with a water index can effectively improve the information extraction precision of water bodies. ④ The CWI is applicable to both WorldView-2 and GF-1 images. In sum, the CWI can be used to effectively extract information on water bodies and applies to the information extraction and renewal of rivers and lakes and the surveys of the cultivation area of pounds and thereby is a high-precision method for extraction information of water bodies.
Keywords information extraction of water bodies      comprehensive water index      GF-2      support vector machine      random forest
ZTFLH:  TP79
Corresponding Authors: ZHANG Jun     E-mail: 1821851037@qq.com;jzhang13@gzu.edu.cn
Issue Date: 21 September 2022
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Chunxia WANG
Jun ZHANG
Yixu LI
PHOUMILAY
Cite this article:
Chunxia WANG,Jun ZHANG,Yixu LI, et al. The construction and verification of a water index in the complex environment based on GF-2 images[J]. Remote Sensing for Natural Resources, 2022, 34(3): 50-58.
URL:
https://www.gtzyyg.com/EN/10.6046/zrzyyg.2021227     OR     https://www.gtzyyg.com/EN/Y2022/V34/I3/50

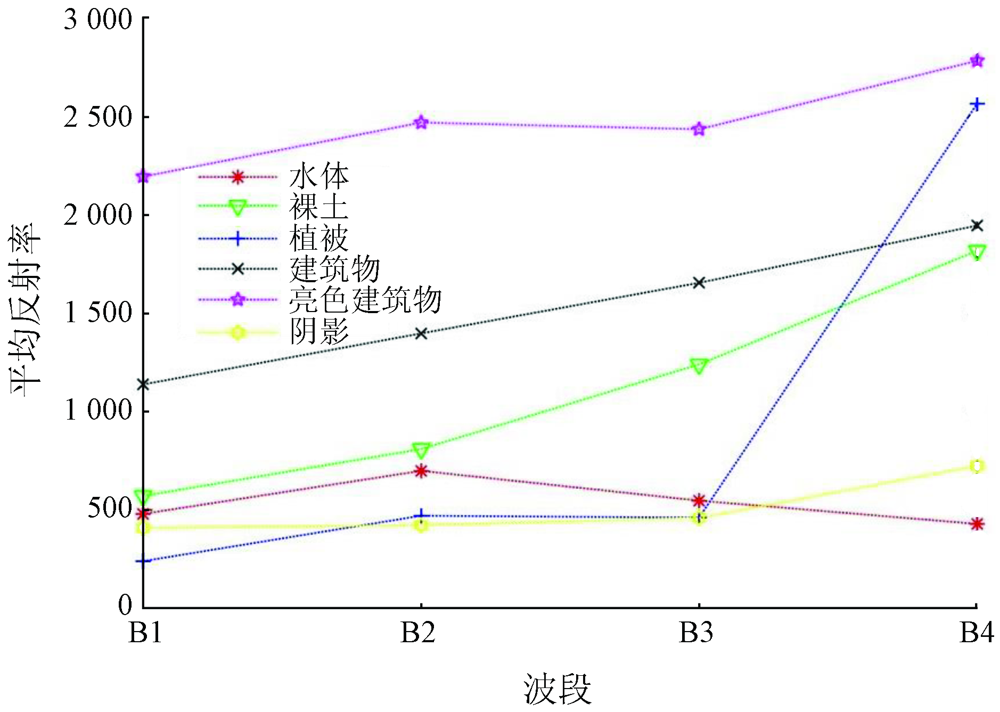

Fig.1  Spectral curve of average reflectance of each surface feature

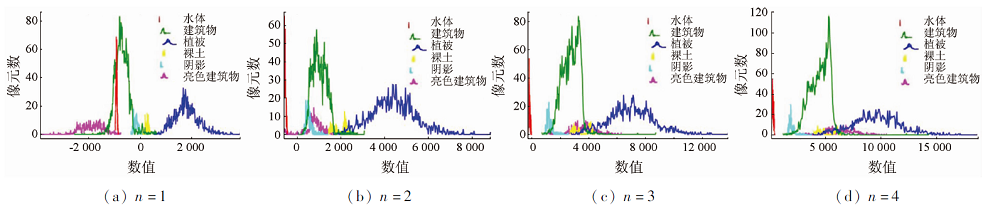

Fig.2  Distribution of water body index of various surface features
模型名称 计算公式① 来源
归一化差异植被指数 N D V I = ( ρ N I R - ρ R E D ) / ( ρ R E D + ρ N I R ) [27]
归一化差异水体指数 N D W I = ( ρ G R E E N - ρ N I R ) / ( ρ G R E E N + ρ N I R ) [15]
阴影水体指数 S W I = ρ B L U E + ρ G R E E N - ρ N I R [19]
改进的阴影水体指数 M S W I = ( ρ B L U E - ρ N I R ) / ρ N I R [6]
增强的阴影水体指数 E S W I = ( ρ B L U E + ρ G R E E N ) / ( 2 ρ N I R ) [28]
Tab.1  Common used water indexes
研究区 影像来源 地表覆盖特征
研究区1 GF-2 水体、植被、阴影、建筑物、裸土
研究区2 GF-2 水体、植被、高大建筑物阴影、山体阴影、建筑物、裸土、高反射建筑物
研究区3 WorldView-2 建筑物、池塘、裸土、阴影
研究区4 GF-1 水体、旱地、低反射地物、蓝色屋顶房屋
Tab.2  Characteristics of the study area

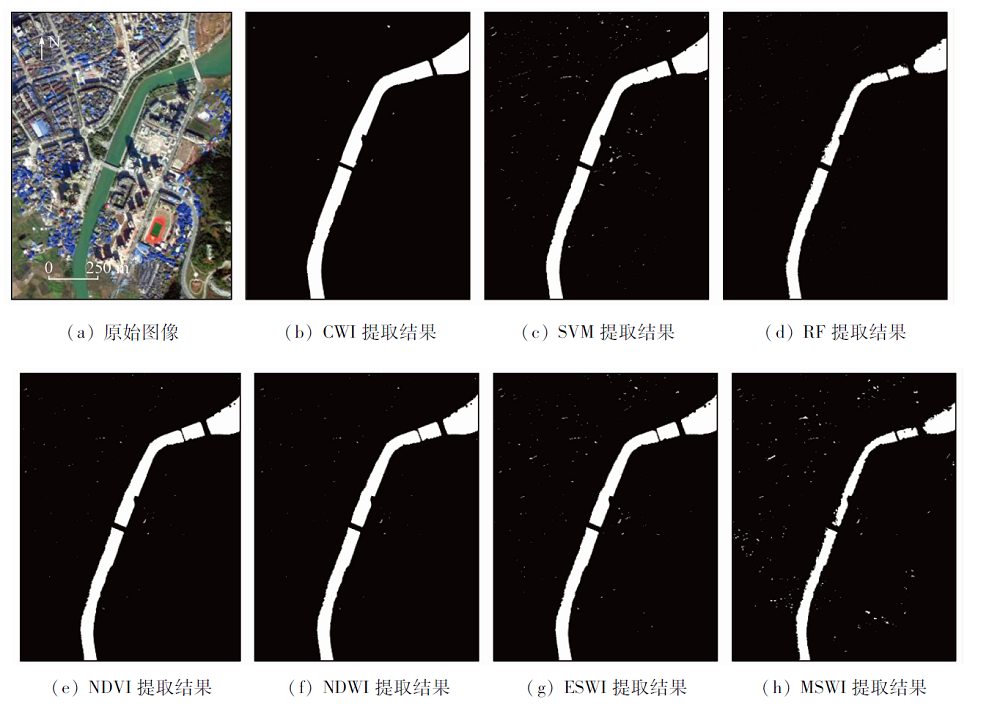

Fig.3  Results of water body extraction in site 1
评价指标 NDVI CWI SWI ESWI NDWI MSWI SVM RF
总体精度 99.65 99.95 90.15 99.34 99.66 95.93 99.62 99.75
Kappa系数 98.83 99.83 72.62 97.82 98.86 85.46 92.21 94.42
Tab.3  Results of accuracy assessment in site 1(%)
Fig.4  Results of water body extraction in site 2

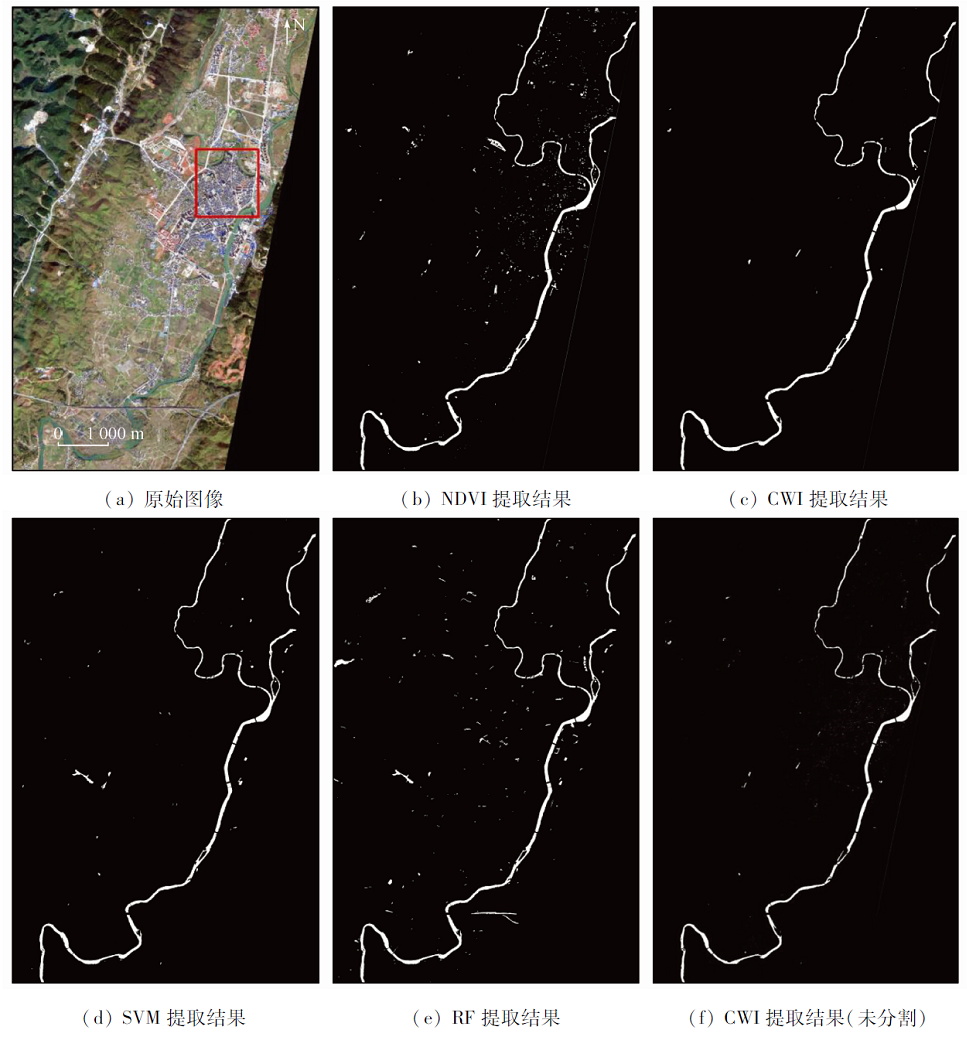

Fig.5  Enlarged view in site 2
评价指标 NDVI CWI SVM RF NDWI SWI ESWI MSWI
总体精度 99.33 99.97 99.94 99.67 99.33 93.80 98.49 99.43
Kappa系数 45.31 94.86 90.70 63.14 45.31 0.08 0.26 49.18
Tab.4  Results of accuracy assessment in site 2(%)
分类方法 第一类数据 第二类数据 第三类数据
SVM
RF
Tab.5  Water extraction results of different data combinations
方法 评价指标 第一类数据 第二类数据 第三类数据
SVM 总体精度 99.98 99.98 99.98
Kappa系数 95.85 96.07 95.85
RF 总体精度 99.99 99.99 99.99
Kappa系数 98.44 98.78 98.17
Tab.6  Water extraction accuracy evaluation of different data combinations(%)
Fig.6  Result of water body extraction in Site 2
Fig.7  Results of water body extraction in site 3
评价指标 NDVI CWI NDWI SWI ESWI MSWI
总体精度 98.12 99.30 99.42 94.86 99.33 96.05
Kappa系数 85.46 94.62 95.66 70.53 94.97 75.83
Tab.7  Results of accuracy assessment in site 3(%)
Fig.8  Results of water body extraction in site 4
评价指标 NDVI CWI NDWI SWI ESWI MSWI
总体精度 74.37 100 78.71 78.37 80.93 80.93
Kappa系数 36.09 100 38.46 52.37 61.39 61.39
Tab.8  Results of accuracy assessment in site 4(%)
