Remote Sensing for Land & Resources    2020, Vol. 32 Issue (3) : 114-120     DOI: 10.6046/gtzyyg.2020.03.15
|
Detecting tiny differential deformation of Tangshan urban active fault using multi-source SAR data
ZHANG Ling(), LIU Bin, GE Daqing, GUO Xiaofang
China Aero Geophysical Survey and Remote Sensing Center for Natural Resources, Beijing 100083, China
Download: PDF(4024 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

The active faults deformation, with distinct temporal and spatial variations, requires long-term and effective monitoring. InSAR (interferometry synthetic aperture Radar), with the advantages of high efficiency, wide coverage and low cost, is one of the main technical means for ground surface deformation survey in recent years. In this paper, the small differential deformation of the main active faults in Tangshan urban area was monitored by the interferometric point target analysis. Two kinds of radar data were used: the Wide strip mode of RADARSAT-2 C-band with 30m spatial resolution and the Strip mode of TerraSAR-X X-band with 3 m spatial resolution. The results show that the differential deformation of Tangshan-Guye active fault is obvious with the maximum differential velocity of 2 mm/a. In this case, the deformation results from RADARSAT-2 C-band medium resolution data can clearly show the tiny differential deformation between the two sides of the active faults. However, TerraSAR-X X-band data, with shorter wavelength, is more obviously affected by the change of surface cover. Compared with this deformation, the vertical differential deformation between the two sides of active faults is too small to be separated from the TerraSAR results.
Keywords InSAR      active fault      differential deformation      tiny surface deformation
:  P237
Issue Date: 09 October 2020
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Ling ZHANG
Bin LIU
Daqing GE
Xiaofang GUO
Cite this article:
Ling ZHANG,Bin LIU,Daqing GE, et al. Detecting tiny differential deformation of Tangshan urban active fault using multi-source SAR data[J]. Remote Sensing for Land & Resources, 2020, 32(3): 114-120.
URL:
https://www.gtzyyg.com/EN/10.6046/gtzyyg.2020.03.15     OR     https://www.gtzyyg.com/EN/Y2020/V32/I3/114
测量值 精度(1σ)
平均形变速率(LOS)/(mm·a-1) 1
单次差分测量(LOS)/mm 5
东向/m 6
北向/m 3
高程/m 1.5
Tab.1  Typical values of precision

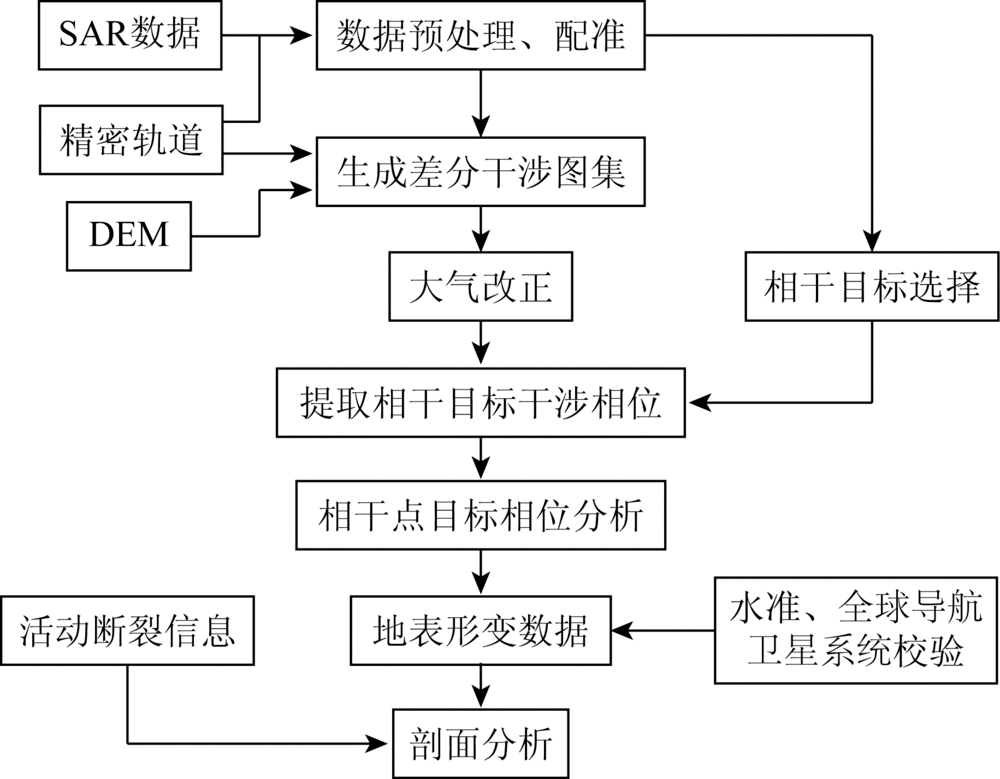

Fig.1  Data processing chart
编号 日期 编号 日期 编号 日期 编号 日期
1 2012/11/18 10 2013/11/13 19 2014/12/02 28 2016/03/26
2 2013/01/05 11 2013/12/07 20 2014/12/26 29 2016/04/19
3 2013/01/29 12 2014/02/17 21 2015/02/12 30 2016/05/13
4 2013/04/11 13 2014/04/06 22 2015/04/01 31 2016/06/06
5 2013/05/05 14 2014/04/30 23 2015/05/19 32 2016/06/30
6 2013/06/22 15 2014/08/04 24 2015/07/30 33 2016/08/17
7 2013/08/09 16 2014/08/28 25 2015/08/23 34 2016/09/10
8 2013/09/02 17 2014/09/21 26 2015/10/10 35 2016/10/28
9 2013/09/26 18 2014/11/08 27 2016/02/07
Tab.2  Data list of RADARSAT-2
编号 日期 编号 日期 编号 日期 编号 日期
1 2012/12/06 4 2013/04/28 7 2013/09/29 10 2013/12/04
2 2013/02/10 5 2013/06/11 8 2013/10/21 11 2013/12/26
3 2013/03/15 6 2013/08/27 9 2013/11/12
Tab.3  Data list of TerraSAR-X

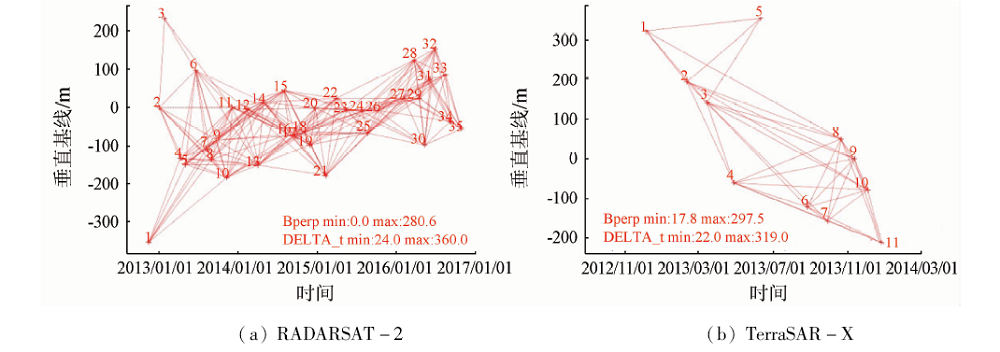

Fig.2  Baseline graph of interferometric images combination

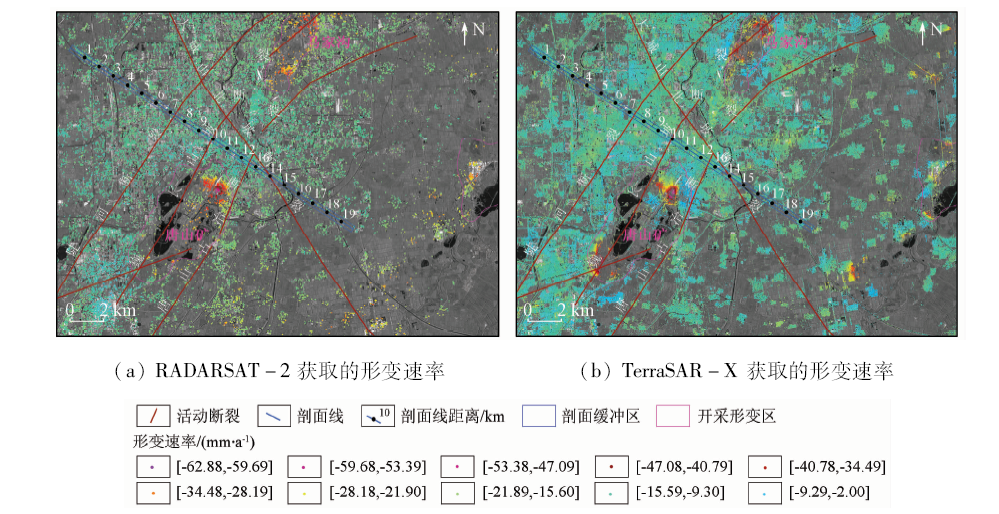

Fig.3  Subsidence velocity map of Tangshan urban area in 2013

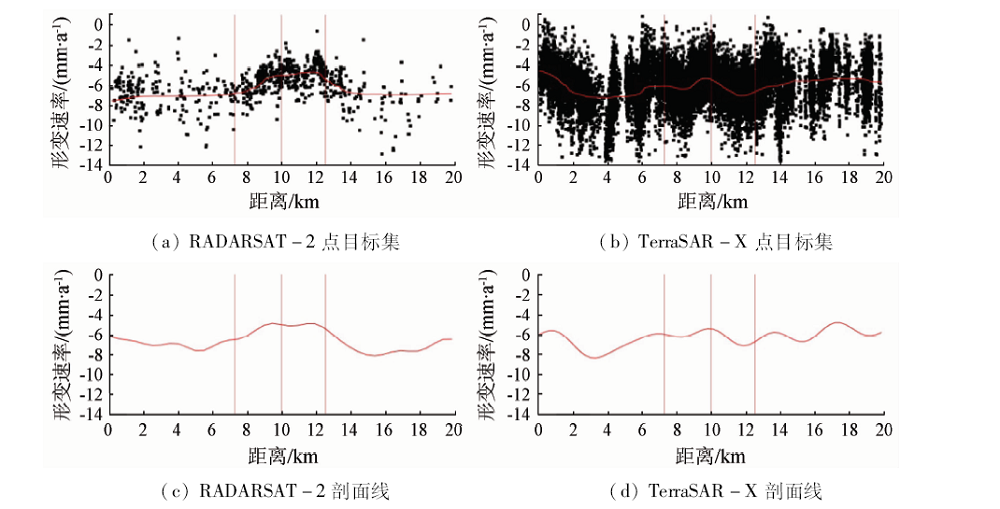

Fig.4  Comparison of different profile data in 2013

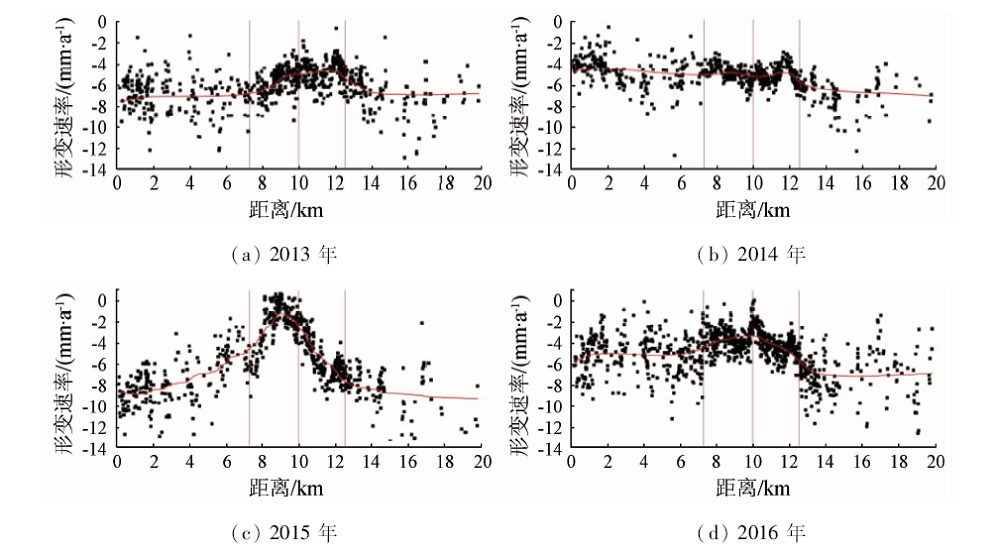

Fig.5  Tiny differential deformation of active fault in the study area from 2013 to 2016
[1] Fialko Y. Interseismic strain accumulation and the earthquake potential on the southern San Andreas Fault system[J]. Nature, 2006,441(22):967-971.
[2] 屈春燕, 单新建, 张国宏, 等. 时序InSAR断层活动性观测研究进展及若干问题探讨[J]. 地震地质, 2014,36(3):731-748.
doi: 10.3969/j.issn.0253-4967.2014.03.015 url: http://www.dz-dz.com.cn/CN/abstract/abstract10901.shtml
[2] Qu C Y, Shan X J, Zhang G H, et al. The research progress in measurement of fault activity by time series InSAR and discussion of related issues[J]. Seismology and Geology, 2014,36(3):731-748.
doi: 10.3969/j.issn.0253-4967.2014.03.015 url: http://www.dz-dz.com.cn/CN/abstract/abstract10901.shtml
[3] Zhang L, Cao D Y, Zhang J F, et al. Interseismic fault movement of Xianshuihe fault zone based on across-fault deformation data and InSAR[J].Pure and Applied Geophysics, 2019(176):649-667.
[4] 周海涛, 郭良迁, 张立成. 唐山断裂现代活动性研究[J]. 华北地震科学, 2009,27(3):17-22.
[4] Zhou H T, Guo L Q, Zhang L C. Study on modern activity of Tangshan fault[J]. North China Earthquake Sciences, 2009,27(3):17-22.
[5] Ferretti A, Prati C, Rocca F. Permanent scatterers in SAR interferometry[J]. IEEE Transactions on Geoscience and Remote Sensing, 2001,39(1):1-20.
[6] Wemer C, Wegmiiller U, Strozzi T, et al. Interferometric point target analysis for deformation mapping[J].IEEE Transactions on Geoscience and Remote Sensing, 2003(7):4362-4364.
[7] Ferretti A, Tamburini A, Novali F, et al. Impact of high resolution radar imagery on reservoir monitoring[J]. Energy Procedia, 2011,(4):3465-3471.
doi: 10.1016/j.egypro.2011.02.272 url: http://dx.doi.org/10.1016/j.egypro.2011.02.272
[8] Berardino P, Fornaro G, Lanari R, et al. A new algorithm for surface deformation monitoring based on small baseline differential SAR interferograms[J]. IEEE Transactions on Geoscience and Remote Sensing, 2002,40(11):2375-2383.
doi: 10.1109/TGRS.2002.803792 url: http://ieeexplore.ieee.org/document/1166596/
[9] 邓起东. 城市活动断裂探测和地震危险性评价问题[J]. 地震地质, 2002,24(4):601-605.
url: http://www.dz-dz.com.cn/CN/abstract/abstract8887.shtml
[9] Deng Q D. Exploration and Seismic hazard assessment of active faults in urban areas[J]. Seismology and Geology, 2002,24(4):601-605.
url: http://www.dz-dz.com.cn/CN/abstract/abstract8887.shtml
[10] 李传友, 汪一鹏, 王志才. 中国东部城市地区隐伏断裂上断点与最新活动时代关系的初步分析——以邢台、唐山地震区为例[J]. 地震地质, 2007,29(2):431-445.
url: http://www.dz-dz.com.cn/CN/abstract/abstract8552.shtml
[10] Li C Y, Wang Y P, Wang Z C. Some analyses on the relation between the upper offset point and the latest activity times of buried faults in cities of eastern China:Taking the Xingtai and Tangshan earthquake regions as an example[J]. Seismology and Geology, 2007,29(2):431-445.
url: http://www.dz-dz.com.cn/CN/abstract/abstract8552.shtml
[11] 王景明, 王文秋, 苏幼坡. 唐山市区断裂活动与地质灾害[J]. 河北理工学院学报, 1998,20(1):75-83.
[11] Wang J M, Wang W Q, Su Y P. The fracture activities and geological calamity in Tangshan City[J]. Journal of Hebei Institute of Technology, 1998,20(1):75-83.
[12] Liu K, Qu G S, Chen J Q, et al. Recurrence characteristics of major earthquakes in the Tangshan area,north China[J]. Acta Geologica Sinica-English Edition, 2013,87(1):254-271.
doi: 10.1111/1755-6724.12046 url: http://www.geojournals.cn/dzxben/ch/reader/view_abstract.aspx?file_no=201301021&flag=1
